QRCode Module

This library is the driver for Module13.2 QRCode, and the module communicates via UART.

Support the following products:

UiFlow2 Example:

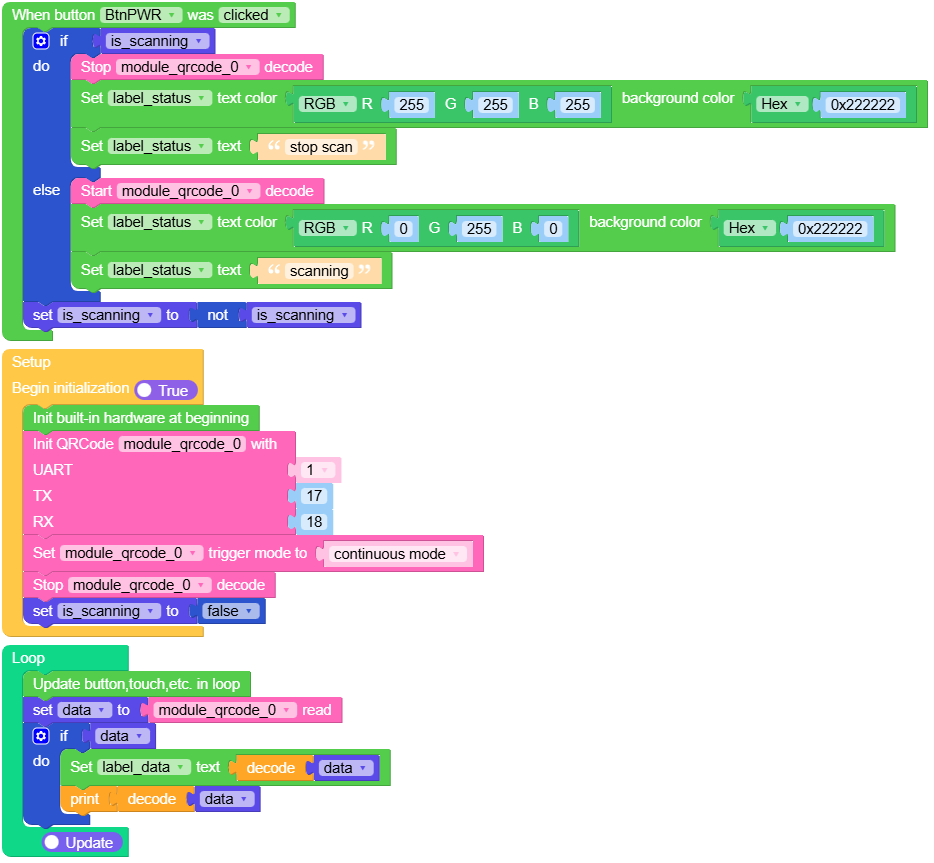

QRCode Scan in Continuous Mode

Open the cores3_qrcode_continuous_mode_example.m5f2 project in UiFlow2.

In Continuous Mode, pressing the button once starts decoding, and pressing the button again stops decoding.

UiFlow2 Code Block:

Example output:

None

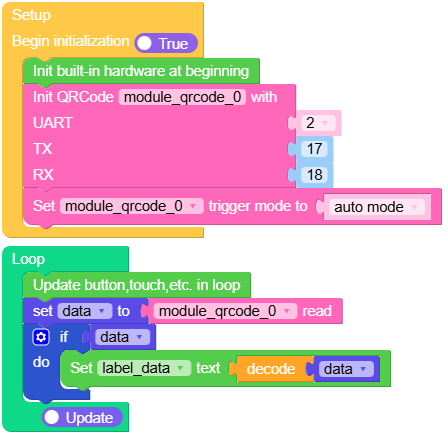

QRCode Scan in Auto Mode

Open the cores3_qrcode_auto_mode_example.m5f2 project in UiFlow2.

In Auto Mode, the module starts decoding when powered on and cannot be stopped.

UiFlow2 Code Block:

Example output:

None

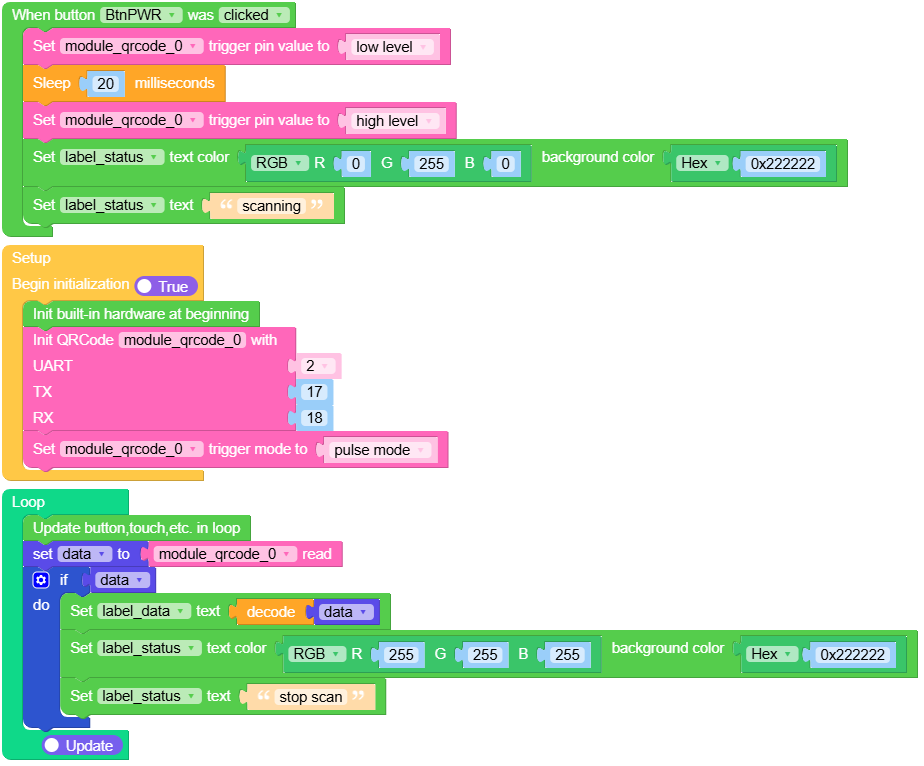

QRCode Scan in Pulse Mode

Open the cores3_qrcode_pulse_mode_example.m5f2 project in UiFlow2.

In Pulse Mode, set the TRIG pin to hold a low level for more than 20ms to trigger decoding once.

UiFlow2 Code Block:

Example output:

None

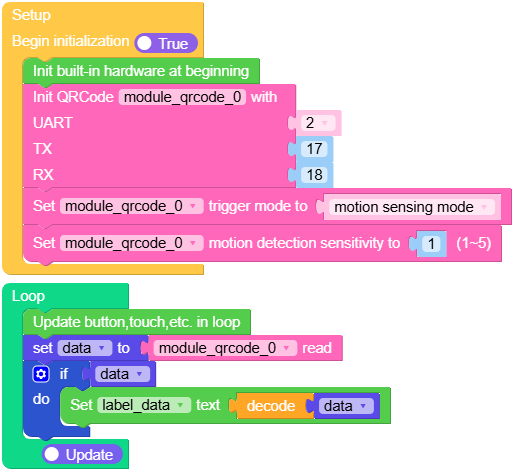

QRCode Scan in Motion Sensing Mode

Open the cores3_qrcode_motion_sensing_mode_example.m5f2 project in UiFlow2.

In Motion Sensing Mode, the module automatically triggers decoding when it detects a change in the scene based on visual recognition information.

UiFlow2 Code Block:

Example output:

None

MicroPython Example:

QRCode Scan in Continuous Mode

In Continuous Mode, pressing the button once starts decoding, and pressing the button again stops decoding.

MicroPython Code Block:

# SPDX-FileCopyrightText: 2025 M5Stack Technology CO LTD
#
# SPDX-License-Identifier: MIT

import os, sys, io
import M5
from M5 import *
from module import QRCodeModule


title0 = None
label_status = None
label_data = None
module_qrcode_0 = None
is_scanning = None
data = None


def btn_pwr_was_clicked_event(state):
    global title0, label_status, label_data, module_qrcode_0, is_scanning, data
    if is_scanning:
        module_qrcode_0.stop_decode()
        label_status.setColor(0xFFFFFF, 0x222222)
        label_status.setText(str("stop scan"))
    else:
        module_qrcode_0.start_decode()
        label_status.setColor(0x00FF00, 0x222222)
        label_status.setText(str("scanning"))
    is_scanning = not is_scanning


def setup():
    global title0, label_status, label_data, module_qrcode_0, is_scanning, data
    M5.begin()
    Widgets.fillScreen(0x222222)
    title0 = Widgets.Title("QRCode", 3, 0xFFFFFF, 0x0000FF, Widgets.FONTS.DejaVu24)
    label_status = Widgets.Label(
        "stop scan", 5, 50, 1.0, 0xFFFFFF, 0x222222, Widgets.FONTS.DejaVu24
    )
    label_data = Widgets.Label("data", 4, 100, 1.0, 0xFFFFFF, 0x222222, Widgets.FONTS.DejaVu24)
    BtnPWR.setCallback(type=BtnPWR.CB_TYPE.WAS_CLICKED, cb=btn_pwr_was_clicked_event)
    module_qrcode_0 = QRCodeModule(1, tx=17, rx=18)
    module_qrcode_0.set_trigger_mode(QRCodeModule.TRIGGER_MODE_CONTINUOUS)
    module_qrcode_0.stop_decode()
    is_scanning = False


def loop():
    global title0, label_status, label_data, module_qrcode_0, is_scanning, data
    M5.update()
    data = module_qrcode_0.read()
    if data:
        label_data.setText(str(data.decode()))
        print(data.decode())


if __name__ == "__main__":
    try:
        setup()
        while True:
            loop()
    except (Exception, KeyboardInterrupt) as e:
        try:
            from utility import print_error_msg

            print_error_msg(e)
        except ImportError:
            print("please update to latest firmware")

Example output:

None

QRCode Scan in Auto Mode

In Auto Mode, the module starts decoding when powered on and cannot be stopped.

MicroPython Code Block:

# SPDX-FileCopyrightText: 2025 M5Stack Technology CO LTD
#
# SPDX-License-Identifier: MIT

import os, sys, io
import M5
from M5 import *
from module import QRCodeModule


title0 = None
label_status = None
label_data = None
module_qrcode_0 = None
data = None


def setup():
    global title0, label_status, label_data, module_qrcode_0, data
    M5.begin()
    Widgets.fillScreen(0x222222)
    title0 = Widgets.Title("QRCode", 3, 0xFFFFFF, 0x0000FF, Widgets.FONTS.DejaVu24)
    label_status = Widgets.Label(
        "scanning", 5, 50, 1.0, 0xFFFFFF, 0x222222, Widgets.FONTS.DejaVu24
    )
    label_data = Widgets.Label("data", 5, 100, 1.0, 0xFFFFFF, 0x222222, Widgets.FONTS.DejaVu24)
    module_qrcode_0 = QRCodeModule(2, tx=17, rx=18)
    module_qrcode_0.set_trigger_mode(QRCodeModule.TRIGGER_MODE_AUTO)


def loop():
    global title0, label_status, label_data, module_qrcode_0, data
    M5.update()
    data = module_qrcode_0.read()
    if data:
        label_data.setText(str(data.decode()))


if __name__ == "__main__":
    try:
        setup()
        while True:
            loop()
    except (Exception, KeyboardInterrupt) as e:
        try:
            from utility import print_error_msg

            print_error_msg(e)
        except ImportError:
            print("please update to latest firmware")

Example output:

None

QRCode Scan in Pulse Mode

In Pulse Mode, set the TRIG pin to hold a low level for more than 20ms to trigger decoding once.

MicroPython Code Block:

# SPDX-FileCopyrightText: 2025 M5Stack Technology CO LTD
#
# SPDX-License-Identifier: MIT

import os, sys, io
import M5
from M5 import *
from module import QRCodeModule
import time


title0 = None
label_status = None
label_data = None
module_qrcode_0 = None
data = None


def btn_pwr_was_clicked_event(state):
    global title0, label_status, label_data, module_qrcode_0, data
    module_qrcode_0.set_trig(0)
    time.sleep_ms(20)
    module_qrcode_0.set_trig(1)
    label_status.setColor(0x00FF00, 0x222222)
    label_status.setText(str("scanning"))


def setup():
    global title0, label_status, label_data, module_qrcode_0, data
    M5.begin()
    Widgets.fillScreen(0x222222)
    title0 = Widgets.Title("QRCode", 3, 0xFFFFFF, 0x0000FF, Widgets.FONTS.DejaVu24)
    label_status = Widgets.Label(
        "scanning", 5, 50, 1.0, 0xFFFFFF, 0x222222, Widgets.FONTS.DejaVu24
    )
    label_data = Widgets.Label("data", 5, 100, 1.0, 0xFFFFFF, 0x222222, Widgets.FONTS.DejaVu24)
    BtnPWR.setCallback(type=BtnPWR.CB_TYPE.WAS_CLICKED, cb=btn_pwr_was_clicked_event)
    module_qrcode_0 = QRCodeModule(2, tx=17, rx=18)
    module_qrcode_0.set_trigger_mode(QRCodeModule.TRIGGER_MODE_PULSE)


def loop():
    global title0, label_status, label_data, module_qrcode_0, data
    M5.update()
    data = module_qrcode_0.read()
    if data:
        label_data.setText(str(data.decode()))
        label_status.setColor(0xFFFFFF, 0x222222)
        label_status.setText(str("stop scan"))


if __name__ == "__main__":
    try:
        setup()
        while True:
            loop()
    except (Exception, KeyboardInterrupt) as e:
        try:
            from utility import print_error_msg

            print_error_msg(e)
        except ImportError:
            print("please update to latest firmware")

Example output:

None

QRCode Scan in Motion Sensing Mode

In Motion Sensing Mode, the module automatically triggers decoding when it detects a change in the scene based on visual recognition information.

MicroPython Code Block:

# SPDX-FileCopyrightText: 2025 M5Stack Technology CO LTD
#
# SPDX-License-Identifier: MIT

import os, sys, io
import M5
from M5 import *
from module import QRCodeModule


title0 = None
label_status = None
label_data = None
module_qrcode_0 = None
data = None


def setup():
    global title0, label_status, label_data, module_qrcode_0, data
    M5.begin()
    Widgets.fillScreen(0x222222)
    title0 = Widgets.Title("QRCode", 3, 0xFFFFFF, 0x0000FF, Widgets.FONTS.DejaVu24)
    label_status = Widgets.Label(
        "detecting", 5, 50, 1.0, 0x00FF00, 0x222222, Widgets.FONTS.DejaVu24
    )
    label_data = Widgets.Label("data", 5, 100, 1.0, 0xFFFFFF, 0x222222, Widgets.FONTS.DejaVu24)
    module_qrcode_0 = QRCodeModule(2, tx=17, rx=18)
    module_qrcode_0.set_trigger_mode(QRCodeModule.TRIGGER_MODE_MOTION_SENSING)
    module_qrcode_0.set_motion_sensitivity(1)


def loop():
    global title0, label_status, label_data, module_qrcode_0, data
    M5.update()
    data = module_qrcode_0.read()
    if data:
        label_data.setText(str(data.decode()))


if __name__ == "__main__":
    try:
        setup()
        while True:
            loop()
    except (Exception, KeyboardInterrupt) as e:
        try:
            from utility import print_error_msg

            print_error_msg(e)
        except ImportError:
            print("please update to latest firmware")

Example output:

None

API

QRCodeModule

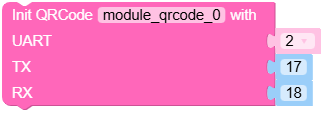

class module.qrcode.QRCodeModule

Create an QRCodeModule object.

Parameters:

id (int) – UART id.
tx (int) – the UART TX pin.
rx (int) – the UART RX pin.

UiFlow2 Code Block:

MicroPython Code Block:

from module import ModuleQRCode

module_qrcode = ModuleQRCode(id = 1, tx = 17, rx = 18)

set_power(enable)

Set power.

Parameters:

enable (bool) –

True : power on.
False : power off.

UiFlow2 Code Block:

MicroPython Code Block:

module_qrcode.set_power(enable)

set_trig(value)

Set trigger pin value.

Parameters:

value (int) –

0 : low level.
1 : high level.

UiFlow2 Code Block:

MicroPython Code Block:

module_qrcode.set_trig(value)

start_decode()

Start decode.

UiFlow2 Code Block:

MicroPython Code Block:

module_qrcode.start_decode()

stop_decode()

Stop decode.

UiFlow2 Code Block:

MicroPython Code Block:

module_qrcode.stop_decode()

read()

Read decode data.

Returns:: qrcode data.
Return type:: None | bytes

If no data is received, return None.

UiFlow2 Code Block:

MicroPython Code Block:

module_qrcode.read()

set_trigger_mode(mode)

Set trigger mode.

Parameters:

mode (int) –

The trigger mode. Available options:

TRIGGER_MODE_KEY: Key Mode, Triggers a single decode; decoding stops after a successful read.
TRIGGER_MODE_CONTINUOUS: Continuous Mode, Triggers continuous decoding; decoding continues even after a successful read and stops only when triggered again.
TRIGGER_MODE_AUTO: Auto Mode, Performs continuous decoding upon power-up and cannot be stopped.
TRIGGER_MODE_PULSE: Pulse Mode, The Trig pin’s low-level signal triggers decoding, which stops after a successful read or when the single read time limit is reached.
TRIGGER_MODE_MOTION_SENSING: Motion Sensing Mode, Uses image recognition; decoding starts when a scene change is detected.

UiFlow2 Code Block:

MicroPython Code Block:

module_qrcode.set_trigger_mode(mode)

set_decode_delay(delay_ms)

Set decode delay.

Parameters:: delay_ms (int) – decode delay time(ms), 0 means continuous decoding until success.

UiFlow2 Code Block:

MicroPython Code Block:

module_qrcode.set_decode_delay(delay_ms)

set_trigger_timeout(timeout_ms)

Set trigger timeout.

Parameters:: timeout_ms – trigger timeout time(ms), Decoding will automatically stop when the duration exceeds this value.

UiFlow2 Code Block:

MicroPython Code Block:

module_qrcode.set_trigger_timeout(timeout_ms)

set_motion_sensitivity(level)

Set motion detection sensitivity. (in Motion Sensing Mode)

Parameters:: level (int) – sensitivity level. Range: 1~5. The higher the level, the more sensitive it is to scene changes.

UiFlow2 Code Block:

MicroPython Code Block:

module_qrcode.set_motion_sensitivity(level)

set_continuous_decode_delay(delay_100ms)

Set continuous decode delay. (in Motion Sensing Mode)

Parameters:: delay_ms (int) – delay time(unit: 100ms), 0 means continuous decoding until timeout.

UiFlow2 Code Block:

MicroPython Code Block:

module_qrcode.set_continuous_decode_delay(delay_ms)

set_trigger_decode_delay(delay_ms):

Set trigger decode delay. (in Motion Sensing Mode)

Sets the trigger decoding delay time. This is the delay between re-entering the scene change detection phase and starting recognition again after detecting a change.

Parameters:: delay_ms (int) – Trigger decode delay time(unit: ms).

UiFlow2 Code Block:

MicroPython Code Block:

module_qrcode.set_trigger_decode_delay(delay_ms)

set_same_code_interval(interval_ms)

Set same code interval.

Parameters:: interval_ms (int) – The interval time for repeated recognition of the same code (unit: ms).

UiFlow2 Code Block:

MicroPython Code Block:

module_qrcode.set_same_code_interval(interval_ms)

set_diff_code_interval(interval_ms)

Set difference code interval.

Parameters:: interval_ms (int) – The interval time for repeated recognition of the difference code (unit: ms).

UiFlow2 Code Block:

MicroPython Code Block:

module_qrcode.set_diff_code_interval(interval_ms)

set_same_code_no_delay(enable)

Set same code no delay.

Parameters:: enable (bool) – Whether to enable non-delay output for the same code. True means enabled, False means disabled.

UiFlow2 Code Block:

MicroPython Code Block:

module_qrcode.set_same_code_no_delay(enable)

set_fill_light_mode(mode)

Set fill light mode.

Parameters:

mode (int) –

The fill light mode. Available options:

FILL_LIGHT_OFF: Light off.
FILL_LIGHT_ON: Light on.
FILL_LIGHT_ON_DECODE: Light on during decoding.

UiFlow2 Code Block:

MicroPython Code Block:

module_qrcode.set_fill_light_mode(mode)

set_fill_light_brightness(brightness)

Set fill light brightness.

Parameters:: brightness (int) – The fill light brightness. Range: 0~100.

UiFlow2 Code Block:

MicroPython Code Block:

module_qrcode.set_fill_light_brightness(brightness)

set_pos_light_mode(mode)

Set positioning light mode.

Parameters:

mode (int) –

The positioning light mode. Available options:

POS_LIGHT_OFF: Light off.
POS_LIGHT_ON_DECODE: Light on during decoding.
POS_LIGHT_FLASH_ON_DECODE: Light flash during decoding.

UiFlow2 Code Block:

MicroPython Code Block:

module_qrcode.set_pos_light_mode(mode)

set_startup_tone(mode)

Set startup tone.

Parameters:

mode (int) –

0: Disable startup tone.
1: Play 4 beeps.
2: Play 2 beeps.

UiFlow2 Code Block:

MicroPython Code Block:

module_qrcode.set_startup_tone(mode)

set_decode_success_beep(count)

Set decode success beep.

Parameters:

count (int) –

0: No prompt sound.
1: Play prompt sound once.
2: Play prompt sound twice.

UiFlow2 Code Block:

MicroPython Code Block:

module_qrcode.set_decode_success_beep(count)

set_case_conversion(mode)

Set case conversion.

Parameters:

mode (int) –

0: Off (Original data).
1: Convert to uppercase.
2: Convert to lowercase.

UiFlow2 Code Block:

MicroPython Code Block:

module_qrcode.set_case_conversion(mode)

set_protocol_format(mode):

set_protocol_format(mode)

Parameters:

mode (int) –

0: No protocol
1: Format 1: [0x03] + Data Length (2 bytes) + Data
2: Format 2: [0x03] + Data Length + Number of Barcodes + Code 1 Data Length + Code 1 Data + … + CRC
3: Format 3: [0x03] + Data Length + Number of Barcodes + Code 1 ID + Code 1 Data Length + Code 1 Data + … + CRC

CRC generate reference program.

def crc16_calc(data: bytes) -> int:
    ca_crc = 0
    for byte in data:
        for i in range(7, -1, -1):
            if ca_crc & 0x8000:
                ca_crc = (ca_crc << 1) ^ 0x18005
            else:
                ca_crc <<= 1
            if (byte & (1 << i)) != 0:
                ca_crc ^= 0x18005
    return ca_crc & 0xFFFF

UiFlow2 Code Block:

MicroPython Code Block:

module_qrcode.set_protocol_format(mode)
