PM2.5 Module

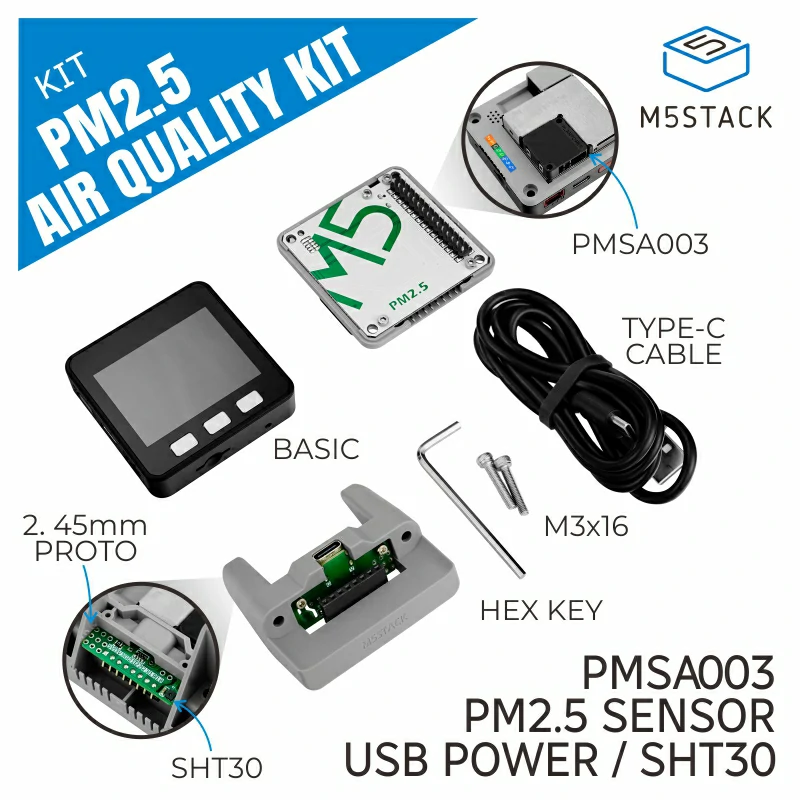

PM2.5 Air Quality Module is an ambient air quality testing Module. This product adopts PMSA003 digital universal particulate matter concentration sensor. It can quickly collect and calculate the number of suspended particles of different particle sizes in the air per unit volume.

The other two versions come with the STH30 and SHT20, which can be used to measure ambient temperature and humidity.

Support the following products:

PM25Module

PM25Module-SHT20

PM25Module-SHT30

Micropython Example:

  1# SPDX-FileCopyrightText: 2024 M5Stack Technology CO LTD
  2#
  3# SPDX-License-Identifier: MIT
  4
  5import os, sys, io
  6import M5
  7from M5 import *
  8from module import PM25Module
  9import time
 10
 11
 12title0 = None
 13label9 = None
 14label0 = None
 15label10 = None
 16label1 = None
 17label2 = None
 18label3 = None
 19label4 = None
 20label5 = None
 21label6 = None
 22label7 = None
 23label8 = None
 24pm25_0 = None
 25
 26
 27def setup():
 28    global \
 29        title0, \
 30        label9, \
 31        label0, \
 32        label10, \
 33        label1, \
 34        label2, \
 35        label3, \
 36        label4, \
 37        label5, \
 38        label6, \
 39        label7, \
 40        label8, \
 41        pm25_0
 42
 43    M5.begin()
 44    Widgets.fillScreen(0x222222)
 45    title0 = Widgets.Title("PM2.5 Module Example", 3, 0xFFFFFF, 0x0000FF, Widgets.FONTS.DejaVu18)
 46    label9 = Widgets.Label("Temp:", 191, 26, 1.0, 0xFFFFFF, 0x222222, Widgets.FONTS.DejaVu18)
 47    label0 = Widgets.Label("PM1.0 Env:", 1, 26, 1.0, 0xFFFFFF, 0x222222, Widgets.FONTS.DejaVu18)
 48    label10 = Widgets.Label("Humi:", 191, 52, 1.0, 0xFFFFFF, 0x222222, Widgets.FONTS.DejaVu18)
 49    label1 = Widgets.Label("PM2.5 Env:", 1, 52, 1.0, 0xFFFFFF, 0x222222, Widgets.FONTS.DejaVu18)
 50    label2 = Widgets.Label("PM10 Env:", 1, 77, 1.0, 0xFFFFFF, 0x222222, Widgets.FONTS.DejaVu18)
 51    label3 = Widgets.Label(
 52        "Particles 0.3um:", 1, 100, 1.0, 0xFFFFFF, 0x222222, Widgets.FONTS.DejaVu18
 53    )
 54    label4 = Widgets.Label(
 55        "Particles 0.5um:", 1, 124, 1.0, 0xFFFFFF, 0x222222, Widgets.FONTS.DejaVu18
 56    )
 57    label5 = Widgets.Label(
 58        "Particles 1.0um:", 1, 145, 1.0, 0xFFFFFF, 0x222222, Widgets.FONTS.DejaVu18
 59    )
 60    label6 = Widgets.Label(
 61        "Particles 2.5um:", 1, 167, 1.0, 0xFFFFFF, 0x222222, Widgets.FONTS.DejaVu18
 62    )
 63    label7 = Widgets.Label(
 64        "Particles 5um:", 1, 189, 1.0, 0xFFFFFF, 0x222222, Widgets.FONTS.DejaVu18
 65    )
 66    label8 = Widgets.Label(
 67        "Particles 10um:", 1, 210, 1.0, 0xFFFFFF, 0x222222, Widgets.FONTS.DejaVu18
 68    )
 69
 70    pm25_0 = PM25Module(2)
 71    pm25_0.set_module_mode(0)
 72    pm25_0.set_module_power(True)
 73    print(pm25_0.get_module_power())
 74
 75
 76def loop():
 77    global \
 78        title0, \
 79        label9, \
 80        label0, \
 81        label10, \
 82        label1, \
 83        label2, \
 84        label3, \
 85        label4, \
 86        label5, \
 87        label6, \
 88        label7, \
 89        label8, \
 90        pm25_0
 91    M5.update()
 92    pm25_0.request_air_data()
 93    pm25_0.refresh_data()
 94    label0.setText(str((str("PM1.0 Env:") + str((pm25_0.get_pm_data(3))))))
 95    label1.setText(str((str("PM2.5 Env:") + str((pm25_0.get_pm_data(4))))))
 96    label2.setText(str((str("PM10 Env:") + str((pm25_0.get_pm_data(5))))))
 97    label3.setText(str((str("Particles 0.3um:") + str((pm25_0.get_pm_data(6))))))
 98    label4.setText(str((str("Particles 0.5um:") + str((pm25_0.get_pm_data(7))))))
 99    label5.setText(str((str("Particles 1.0um:") + str((pm25_0.get_pm_data(8))))))
100    label6.setText(str((str("Particles 2.5um:") + str((pm25_0.get_pm_data(9))))))
101    label7.setText(str((str("Particles 5um:") + str((pm25_0.get_pm_data(10))))))
102    label8.setText(str((str("Particles 10um:") + str((pm25_0.get_pm_data(11))))))
103    label9.setText(str((str("Temp:") + str((pm25_0.get_temperature())))))
104    label10.setText(str((str("Humi:") + str((pm25_0.get_humidity())))))
105    time.sleep_ms(100)
106
107
108if __name__ == "__main__":
109    try:
110        setup()
111        while True:
112            loop()
113    except (Exception, KeyboardInterrupt) as e:
114        try:
115            from utility import print_error_msg
116
117            print_error_msg(e)
118        except ImportError:
119            print("please update to latest firmware")

UIFLOW2 Example:


pm25_core2_example.m5f2

class PM25Module

Constructors

class PM25Module

Init Module PM2.5 with UART.

UIFLOW2:


Methods

PM25Module.set_module_power(state)

Set the PM25Module power state.

Parameters:

state – Set to True to enable power, False to disable.

UIFLOW2:


PM25Module.get_module_power() → bool

Get the PM25Module power state.

Parameters:

state – Get the module power state.

UIFLOW2:


PM25Module.set_module_mode(mode)

Set the PM25Module work mode.

Parameters:

mode –

Options:

  • Active mode: 1

  • Passive mode: 0

UIFLOW2:


PM25Module.refresh_data()

Refresh the PM25Module data.

Parameters:

mode –

Options:

  • Active mode: 1

  • Passive mode: 0

UIFLOW2:


PM25Module.request_air_data()

Request PM25Module air data.

UIFLOW2:


PM25Module.get_pm_data(data_num)

Select the type of particulate matter data to retrieve.

Parameters:

data_num (int) –

The options range from standard PM concentrations to counts of particles of specific sizes in 0.1 liters of air.

Options:

  • PM1.0 Concentration(Std): 0

  • PM2.5 Concentration(Std): 1

  • PM10 Concentration(Std): 2

  • PM1.0 Concentration(Env): 3

  • PM2.5 Concentration(Env): 4

  • PM10 Concentration(Env): 5

  • Particels more than 0.3um in 0.1 liters of air: 6

  • Particels more than 0.5um in 0.1 liters of air: 7

  • Particels more than 1.0um in 0.1 liters of air: 8

  • Particels more than 2.5um in 0.1 liters of air: 9

  • Particels more than 5.0um in 0.1 liters of air: 10

  • Particels more than 10um in 0.1 liters of air: 11

UIFLOW2:


PM25Module.get_temperature()

Get PM25Module environmental temperature data.

UIFLOW2:


PM25Module.get_humidity()

Get PM25Module environmental humidity data.
