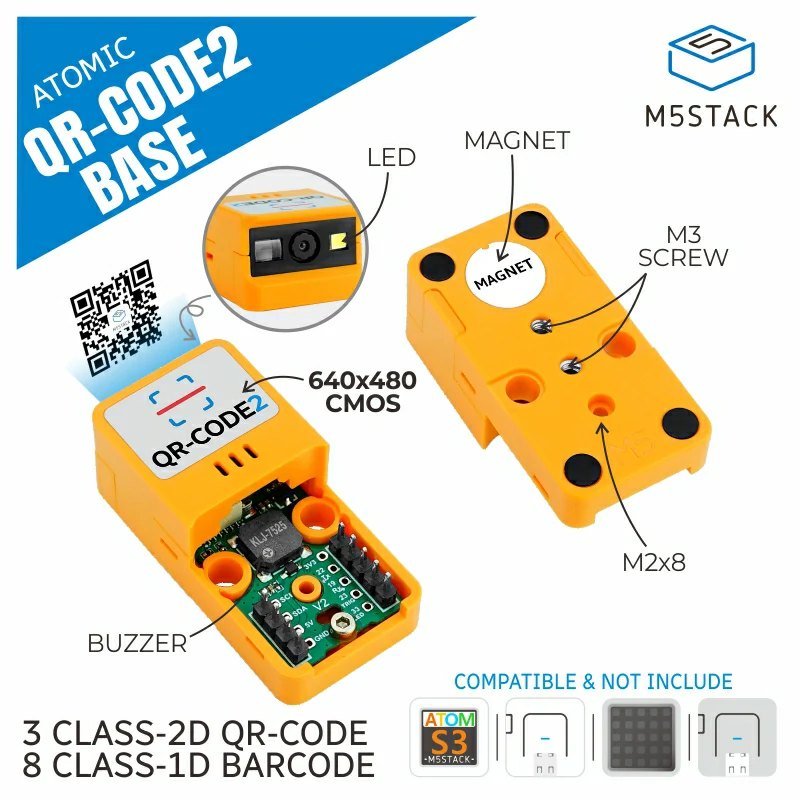

Atomic QRCode2 Base

This library is the driver for Atomic QRCode2 Base, and the module communicates via UART.

Support the following products:

UiFlow2 Example:

QRCode Scan in Key Mode

Open the atoms3_qrcode2_key_mode_example.m5f2 project in UiFlow2.

In Key Mode, the module starts decoding when the button is pressed and stops decoding when the button is released. After a successful decoding, it stops decoding. To continue decoding, the button must be released and pressed again.

UiFlow2 Code Block:

Example output:

None

QRCode Scan in Continuous Mode

Open the atoms3_qrcode2_continuous_mode_example.m5f2 project in UiFlow2.

In Continuous Mode, pressing the button once starts decoding, and pressing the button again stops decoding.

UiFlow2 Code Block:

Example output:

None

QRCode Scan in Auto Mode

Open the atoms3_qrcode2_auto_mode_example.m5f2 project in UiFlow2.

In Auto Mode, the module starts decoding when powered on and cannot be stopped.

UiFlow2 Code Block:

Example output:

None

QRCode Scan in Pulse Mode

Open the atoms3_qrcode2_pulse_mode_example.m5f2 project in UiFlow2.

In Pulse Mode, set the TRIG pin to hold a low level for more than 20ms to trigger decoding once.

UiFlow2 Code Block:

Example output:

None

QRCode Scan in Motion Sensing Mode

Open the atoms3_qrcode2_motion_sensing_mode_example.m5f2 project in UiFlow2.

In Motion Sensing Mode, the module automatically triggers decoding when it detects a change in the scene based on visual recognition information.

UiFlow2 Code Block:

Example output:

None

MicroPython Example:

QRCode Scan in Key Mode

In Key Mode, the module starts decoding when the button is pressed and stops decoding when the button is released. After a successful decoding, it stops decoding. To continue decoding, the button must be released and pressed again.

MicroPython Code Block:

# SPDX-FileCopyrightText: 2025 M5Stack Technology CO LTD
#
# SPDX-License-Identifier: MIT

import os, sys, io
import M5
from M5 import *
from base import AtomicQRCode2Base


title0 = None
label_data = None
label_status = None
base_qrcode2 = None
is_scanning = None
status = None
data = None


def setup():
    global title0, label_data, label_status, base_qrcode2, is_scanning, status, data
    M5.begin()
    title0 = Widgets.Title("QRCode", 3, 0xFFFFFF, 0x0000FF, Widgets.FONTS.DejaVu18)
    label_data = Widgets.Label("data", 5, 60, 1.0, 0xFFFFFF, 0x000000, Widgets.FONTS.DejaVu18)
    label_status = Widgets.Label(
        "stop scan", 5, 25, 1.0, 0xFFFFFF, 0x000000, Widgets.FONTS.DejaVu18
    )
    base_qrcode2 = AtomicQRCode2Base(2, 5, 6, 7)
    base_qrcode2.set_trigger_mode(base_qrcode2.TRIGGER_MODE_KEY)
    is_scanning = False
    status = is_scanning


def loop():
    global title0, label_data, label_status, base_qrcode2, is_scanning, status, data
    M5.update()
    if BtnA.isPressed():
        base_qrcode2.set_trig(0)
        is_scanning = True
    else:
        base_qrcode2.set_trig(1)
        is_scanning = False
    if status != is_scanning:
        status = is_scanning
        if status:
            label_status.setColor(0x00FF00, 0x000000)
            label_status.setText(str("scanning"))
        else:
            label_status.setColor(0xFFFFFF, 0x000000)
            label_status.setText(str("stop scan"))
    data = base_qrcode2.read()
    if data:
        label_data.setText(str(data.decode()))


if __name__ == "__main__":
    try:
        setup()
        while True:
            loop()
    except (Exception, KeyboardInterrupt) as e:
        try:
            from utility import print_error_msg

            print_error_msg(e)
        except ImportError:
            print("please update to latest firmware")

Example output:

None

QRCode Scan in Continuous Mode

In Continuous Mode, pressing the button once starts decoding, and pressing the button again stops decoding.

MicroPython Code Block:

# SPDX-FileCopyrightText: 2025 M5Stack Technology CO LTD
#
# SPDX-License-Identifier: MIT

import os, sys, io
import M5
from M5 import *
from base import AtomicQRCode2Base


title0 = None
label_data = None
label_status = None
base_qrcode2 = None
is_scanning = None
data = None


def btna_was_clicked_event(state):
    global title0, label_data, label_status, base_qrcode2, is_scanning, data
    if is_scanning:
        base_qrcode2.stop_decode()
        label_status.setText(str("stop scan"))
        label_status.setColor(0xFFFFFF, 0x000000)
    else:
        base_qrcode2.start_decode()
        label_status.setText(str("scanning"))
        label_status.setColor(0x00FF00, 0x000000)
    is_scanning = not is_scanning


def setup():
    global title0, label_data, label_status, base_qrcode2, is_scanning, data
    M5.begin()
    title0 = Widgets.Title("QRCode", 3, 0xFFFFFF, 0x0000FF, Widgets.FONTS.DejaVu18)
    label_data = Widgets.Label("data", 5, 60, 1.0, 0xFFFFFF, 0x000000, Widgets.FONTS.DejaVu18)
    label_status = Widgets.Label(
        "stop scan", 5, 25, 1.0, 0xFFFFFF, 0x000000, Widgets.FONTS.DejaVu18
    )
    BtnA.setCallback(type=BtnA.CB_TYPE.WAS_CLICKED, cb=btna_was_clicked_event)
    base_qrcode2 = AtomicQRCode2Base(2, 5, 6, 7)
    base_qrcode2.set_trigger_mode(base_qrcode2.TRIGGER_MODE_CONTINUOUS)
    base_qrcode2.set_startup_tone(1)
    base_qrcode2.set_decode_success_beep(2)
    base_qrcode2.stop_decode()
    is_scanning = False


def loop():
    global title0, label_data, label_status, base_qrcode2, is_scanning, data
    M5.update()
    data = base_qrcode2.read()
    if data:
        label_data.setText(str(data.decode()))


if __name__ == "__main__":
    try:
        setup()
        while True:
            loop()
    except (Exception, KeyboardInterrupt) as e:
        try:
            from utility import print_error_msg

            print_error_msg(e)
        except ImportError:
            print("please update to latest firmware")

Example output:

None

QRCode Scan in Auto Mode

In Auto Mode, the module starts decoding when powered on and cannot be stopped.

MicroPython Code Block:

# SPDX-FileCopyrightText: 2025 M5Stack Technology CO LTD
#
# SPDX-License-Identifier: MIT

import os, sys, io
import M5
from M5 import *
from base import AtomicQRCode2Base


title0 = None
label_data = None
label_status = None
base_qrcode2 = None
data = None


def setup():
    global title0, label_data, label_status, base_qrcode2, data
    M5.begin()
    title0 = Widgets.Title("QRCode", 3, 0xFFFFFF, 0x0000FF, Widgets.FONTS.DejaVu18)
    label_data = Widgets.Label("data", 5, 60, 1.0, 0xFFFFFF, 0x000000, Widgets.FONTS.DejaVu18)
    label_status = Widgets.Label(
        "scanning", 5, 25, 1.0, 0x00FF00, 0x000000, Widgets.FONTS.DejaVu18
    )
    base_qrcode2 = AtomicQRCode2Base(2, 5, 6, 7)
    base_qrcode2.set_trigger_mode(base_qrcode2.TRIGGER_MODE_AUTO)


def loop():
    global title0, label_data, label_status, base_qrcode2, data
    M5.update()
    data = base_qrcode2.read()
    if data:
        label_data.setText(str(data.decode()))


if __name__ == "__main__":
    try:
        setup()
        while True:
            loop()
    except (Exception, KeyboardInterrupt) as e:
        try:
            from utility import print_error_msg

            print_error_msg(e)
        except ImportError:
            print("please update to latest firmware")

Example output:

None

QRCode Scan in Pulse Mode

In Pulse Mode, set the TRIG pin to hold a low level for more than 20ms to trigger decoding once.

MicroPython Code Block:

# SPDX-FileCopyrightText: 2025 M5Stack Technology CO LTD
#
# SPDX-License-Identifier: MIT

import os, sys, io
import M5
from M5 import *
from base import AtomicQRCode2Base
import time


title0 = None
label_data = None
label_status = None
base_qrcode2 = None
data = None


def btna_was_clicked_event(state):
    global title0, label_data, label_status, base_qrcode2, data
    base_qrcode2.set_trig(0)
    time.sleep_ms(20)
    base_qrcode2.set_trig(1)
    label_status.setText(str("scanning"))
    label_status.setColor(0x00FF00, 0x000000)


def setup():
    global title0, label_data, label_status, base_qrcode2, data
    M5.begin()
    title0 = Widgets.Title("QRCode", 3, 0xFFFFFF, 0x0000FF, Widgets.FONTS.DejaVu18)
    label_data = Widgets.Label("data", 5, 60, 1.0, 0xFFFFFF, 0x000000, Widgets.FONTS.DejaVu18)
    label_status = Widgets.Label(
        "stop scan", 5, 25, 1.0, 0xFFFFFF, 0x000000, Widgets.FONTS.DejaVu18
    )
    BtnA.setCallback(type=BtnA.CB_TYPE.WAS_CLICKED, cb=btna_was_clicked_event)
    base_qrcode2 = AtomicQRCode2Base(2, 5, 6, 7)
    base_qrcode2.set_trigger_mode(base_qrcode2.TRIGGER_MODE_PULSE)


def loop():
    global title0, label_data, label_status, base_qrcode2, data
    M5.update()
    data = base_qrcode2.read()
    if data:
        label_data.setText(str(data.decode()))
        label_status.setText(str("stop scan"))
        label_status.setColor(0xFFFFFF, 0x000000)


if __name__ == "__main__":
    try:
        setup()
        while True:
            loop()
    except (Exception, KeyboardInterrupt) as e:
        try:
            from utility import print_error_msg

            print_error_msg(e)
        except ImportError:
            print("please update to latest firmware")

Example output:

None

QRCode Scan in Motion Sensing Mode

In Motion Sensing Mode, the module automatically triggers decoding when it detects a change in the scene based on visual recognition information.

MicroPython Code Block:

# SPDX-FileCopyrightText: 2025 M5Stack Technology CO LTD
#
# SPDX-License-Identifier: MIT

import os, sys, io
import M5
from M5 import *
from base import AtomicQRCode2Base


title0 = None
label_data = None
label_status = None
base_qrcode2 = None
data = None


def setup():
    global title0, label_data, label_status, base_qrcode2, data
    M5.begin()
    title0 = Widgets.Title("QRCode", 3, 0xFFFFFF, 0x0000FF, Widgets.FONTS.DejaVu18)
    label_data = Widgets.Label("data", 5, 60, 1.0, 0xFFFFFF, 0x000000, Widgets.FONTS.DejaVu18)
    label_status = Widgets.Label(
        "detecting", 5, 25, 1.0, 0x00FF00, 0x000000, Widgets.FONTS.DejaVu18
    )
    base_qrcode2 = AtomicQRCode2Base(2, 5, 6, 7)
    base_qrcode2.set_trigger_mode(base_qrcode2.TRIGGER_MODE_MOTION_SENSING)
    base_qrcode2.set_motion_sensitivity(1)


def loop():
    global title0, label_data, label_status, base_qrcode2, data
    M5.update()
    data = base_qrcode2.read()
    if data:
        label_data.setText(str(data.decode()))


if __name__ == "__main__":
    try:
        setup()
        while True:
            loop()
    except (Exception, KeyboardInterrupt) as e:
        try:
            from utility import print_error_msg

            print_error_msg(e)
        except ImportError:
            print("please update to latest firmware")

Example output:

None

API

AtomicQRCode2Base

class base.qrcode2.AtomicQRCode2Base

Create an AtomicQRCode2Base object.

Parameters:

• id (int) – UART id.

• tx (int) – the UART TX pin.

• rx (int) – the UART RX pin.

• trig (int) – the trigger pin.

UiFlow2 Code Block:

MicroPython Code Block:

from base import AtomicQRCode2Base

base_qrcode2 = AtomicQRCode2Base(id = 1, tx = 6, rx = 5, trig = 7)

set_trig(value)

Set trigger pin value.

Parameters:

value (int) –

• 0 : low level.

• 1 : high level.

UiFlow2 Code Block:

MicroPython Code Block:

base_qrcode2.set_trig(value)

start_decode()

Start decode.

UiFlow2 Code Block:

MicroPython Code Block:

base_qrcode2.start_decode()

stop_decode()

Stop decode.

UiFlow2 Code Block:

MicroPython Code Block:

base_qrcode2.stop_decode()

read()

Read qrcode data.

Returns:

qrcode data.

Return type:

None | bytes

If no data is received, return None.

UiFlow2 Code Block:

MicroPython Code Block:

base_qrcode2.read()

set_trigger_mode(mode)

Set trigger mode.

Parameters:

mode (int) –

The trigger mode. Available options:

• TRIGGER_MODE_KEY: Key Mode, Decoding starts when the trigger pin is low and stops when the trigger pin is high.

• TRIGGER_MODE_CONTINUOUS: Call start_decode() to start decoding and stop_decode() to stop decoding.

• TRIGGER_MODE_AUTO: Auto Mode, Performs continuous decoding upon power-up and cannot be stopped.

• TRIGGER_MODE_PULSE: Pulse Mode, A 20ms low-level pulse on the trigger pin initiates a single decoding operation.

• TRIGGER_MODE_MOTION_SENSING: Motion Sensing Mode, Uses image recognition; decoding starts when a scene change is detected.

UiFlow2 Code Block:

MicroPython Code Block:

base_qrcode2.set_trigger_mode(mode)

set_decode_delay(delay_ms)

Set decode delay.

Parameters:

delay_ms (int) – decode delay time(ms), 0 means continuous decoding until success.

UiFlow2 Code Block:

MicroPython Code Block:

base_qrcode2.set_decode_delay(delay_ms)

set_trigger_timeout(timeout_ms)

Set trigger timeout.

Parameters:

timeout_ms – trigger timeout time(ms), Decoding will automatically stop when the duration exceeds this value.

UiFlow2 Code Block:

MicroPython Code Block:

base_qrcode2.set_trigger_timeout(timeout_ms)

set_motion_sensitivity(level)

Set motion detection sensitivity. (in Motion Sensing Mode)

Parameters:

level (int) – sensitivity level. Range: 1~5. The higher the level, the more sensitive it is to scene changes.

UiFlow2 Code Block:

MicroPython Code Block:

base_qrcode2.set_motion_sensitivity(level)

set_continuous_decode_delay(delay_ms)

Set continuous decode delay. (in Motion Sensing Mode)

Parameters:

delay_ms (int) – delay time(unit: 100ms), 0 means continuous decoding until timeout.

UiFlow2 Code Block:

MicroPython Code Block:

base_qrcode2.set_continuous_decode_delay(delay_ms)

set_trigger_decode_delay(delay_ms):

Set trigger decode delay. (in Motion Sensing Mode)

Sets the trigger decoding delay time. This is the delay between re-entering the scene change detection phase and starting recognition again after detecting a change.

Parameters:

delay_ms (int) – Trigger decode delay time(unit: ms).

UiFlow2 Code Block:

MicroPython Code Block:

base_qrcode2.set_trigger_decode_delay(delay_ms)

set_same_code_interval(interval_ms)

Set same code interval.

Parameters:

interval_ms (int) – The interval time for repeated recognition of the same code (unit: ms).

UiFlow2 Code Block:

MicroPython Code Block:

base_qrcode2.set_same_code_interval(interval_ms)

set_diff_code_interval(interval_ms)

Set difference code interval.

Parameters:

interval_ms (int) – The interval time for repeated recognition of the difference code (unit: ms).

UiFlow2 Code Block:

MicroPython Code Block:

base_qrcode2.set_diff_code_interval(interval_ms)

set_same_code_no_delay(enable)

Set same code no delay.

Parameters:

enable (bool) – Whether to enable non-delay output for the same code. True means enabled, False means disabled.

UiFlow2 Code Block:

MicroPython Code Block:

base_qrcode2.set_same_code_no_delay(enable)

set_fill_light_mode(mode)

Set fill light mode.

Parameters:

mode (int) –

The fill light mode. Available options:

• FILL_LIGHT_OFF: Light off.

• FILL_LIGHT_ON: Light on.

• FILL_LIGHT_ON_DECODE: Light on during decoding.

UiFlow2 Code Block:

MicroPython Code Block:

base_qrcode2.set_fill_light_mode(mode)

set_fill_light_brightness(brightness)

Set fill light brightness.

Parameters:

brightness (int) – The fill light brightness. Range: 0~100.

UiFlow2 Code Block:

MicroPython Code Block:

base_qrcode2.set_fill_light_brightness(brightness)

set_pos_light_mode(mode)

Set positioning light mode.

Parameters:

mode (int) – The positioning light mode. Available options:

• POS_LIGHT_OFF: Light off.

• POS_LIGHT_ON_DECODE: Light on during decoding.

• POS_LIGHT_FLASH_ON_DECODE: Light flash during decoding.

UiFlow2 Code Block:

MicroPython Code Block:

base_qrcode2.set_pos_light_mode(mode)

set_startup_tone(mode)

Set startup tone.

Parameters:

mode (int) –

• 0: Disable startup tone.

• 1: Play 4 beeps.

• 2: Play 2 beeps.

UiFlow2 Code Block:

MicroPython Code Block:

base_qrcode2.set_startup_tone(mode)

set_decode_success_beep(count)

Set decode success beep.

Parameters:

count (int) –

• 0: No prompt sound.

• 1: Play prompt sound once.

• 2: Play prompt sound twice.

UiFlow2 Code Block:

MicroPython Code Block:

base_qrcode2.set_decode_success_beep(count)

set_case_conversion(mode)

Set case conversion.

Parameters:

mode (int) –

• 0: Off (Original data).

• 1: Convert to uppercase.

• 2: Convert to lowercase.

UiFlow2 Code Block:

MicroPython Code Block:

base_qrcode2.set_case_conversion(mode)

set_protocol_format(mode)

Parameters:

mode (int) –

• 0: No protocol

• 1: Format 1: [0x03] + Data Length (2 bytes) + Data

• 2: Format 2: [0x03] + Data Length + Number of Barcodes + Code 1 Data Length + Code 1 Data + … + CRC

• 3: Format 3: [0x03] + Data Length + Number of Barcodes + Code 1 ID + Code 1 Data Length + Code 1 Data + … + CRC

CRC generate reference program.

def crc16_calc(data: bytes) -> int:
    ca_crc = 0
    for byte in data:
        for i in range(7, -1, -1):
            if ca_crc & 0x8000:
                ca_crc = (ca_crc << 1) ^ 0x18005
            else:
                ca_crc <<= 1
            if (byte & (1 << i)) != 0:
                ca_crc ^= 0x18005
    return ca_crc & 0xFFFF

UiFlow2 Code Block:

MicroPython Code Block:

base_qrcode2.set_protocol_format(mode)
