Atomic Motion Base

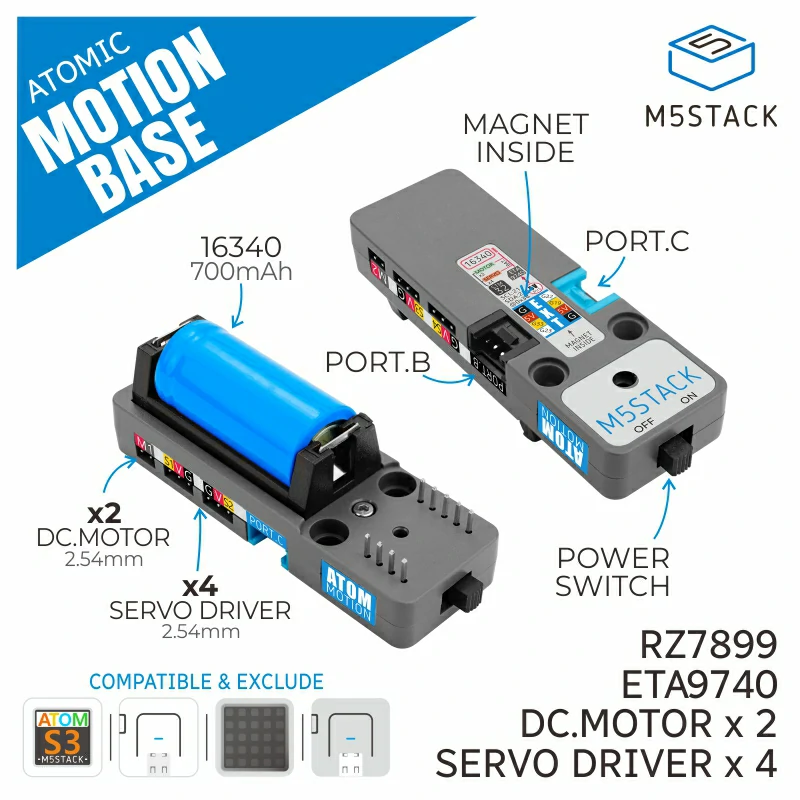

Atomic Motion Base is a servo and DC motor driver designed specifically for the ATOM series controllers. It integrates an STM32 control chip internally and uses I2C communication for control. Atomic Motion Base provides 4 servo channels and 2 DC motor interfaces, offering convenience for scenarios that require control of multiple servos or motor drivers, such as multi-axis servo robotic arms or small car motor control.

Atomic Motion Base v1.1 adds INA226 to implement current and voltage detection.

Support the following products:

UiFlow2 Example:

Motion Base

Open the atoms3_lite_motion_base_example.m5f2 project in UiFlow2.

This example controls the servo to rotate to a specified angle and sets the motor to rotate.

UiFlow2 Code Block:

Example output:

None

Motion Base v1.1

Open the atoms3_motion_base_v1.1_example.m5f2 project in UiFlow2.

The example program switches the motor’s running speed when the screen button is pressed, and the screen displays the current, voltage, and power.

UiFlow2 Code Block:

Example output:

None

MicroPython Example:

Motion Base

This example controls the servo to rotate to a specified angle and sets the motor to rotate.

MicroPython Code Block:

# SPDX-FileCopyrightText: 2024 M5Stack Technology CO LTD
#
# SPDX-License-Identifier: MIT

import os, sys, io
import M5
from M5 import *
from hardware import *
from base import Motion


i2c0 = None
motion = None


def setup():
    global i2c0, motion

    M5.begin()
    i2c0 = I2C(0, scl=Pin(39), sda=Pin(38), freq=100000)
    motion = Motion(i2c0, 0x38)
    motion.set_servo_angle(1, 70)
    motion.set_motor_speed(1, 46)
    print(motion.get_servo_angle(1))


def loop():
    global i2c0, motion
    M5.update()


if __name__ == "__main__":
    try:
        setup()
        while True:
            loop()
    except (Exception, KeyboardInterrupt) as e:
        try:
            from utility import print_error_msg

            print_error_msg(e)
        except ImportError:
            print("please update to latest firmware")

Example output:

None

Motion Base v1.1

The example program switches the motor’s running speed when the screen button is pressed, and the screen displays the current, voltage, and power.

MicroPython Code Block:

# SPDX-FileCopyrightText: 2025 M5Stack Technology CO LTD
#
# SPDX-License-Identifier: MIT

import os, sys, io
import M5
from M5 import *
from hardware import I2C
from hardware import Pin
from base import Motion
import time


label_speed = None
title_e = None
label_vol = None
label_cur = None
label_pow = None
i2c0 = None
motion = None
speed = None
voltage = None
curent = None
last_time = None
power = None


def btnA_wasClicked_event(state):
    global \
        label_speed, \
        title_e, \
        label_vol, \
        label_cur, \
        label_pow, \
        i2c0, \
        motion, \
        speed, \
        voltage, \
        curent, \
        last_time, \
        power
    speed = speed + 20
    if speed > 120:
        speed = 0
    motion.set_motor_speed(1, speed)
    label_speed.setText(str((str("speed: ") + str(speed))))


def setup():
    global \
        label_speed, \
        title_e, \
        label_vol, \
        label_cur, \
        label_pow, \
        i2c0, \
        motion, \
        speed, \
        voltage, \
        curent, \
        last_time, \
        power
    M5.begin()
    label_speed = Widgets.Label("speed：", 5, 27, 1.0, 0xFFFFFF, 0x000000, Widgets.FONTS.DejaVu18)
    title_e = Widgets.Title("Motor Ctrl", 3, 0xFFFFFF, 0x0000FF, Widgets.FONTS.DejaVu18)
    label_vol = Widgets.Label("vol:", 5, 55, 1.0, 0xFFFFFF, 0x000000, Widgets.FONTS.DejaVu18)
    label_cur = Widgets.Label("cur:", 5, 75, 1.0, 0xFFFFFF, 0x000000, Widgets.FONTS.DejaVu18)
    label_pow = Widgets.Label("pow:", 5, 95, 1.0, 0xFFFFFF, 0x000000, Widgets.FONTS.DejaVu18)
    BtnA.setCallback(type=BtnA.CB_TYPE.WAS_CLICKED, cb=btnA_wasClicked_event)
    i2c0 = I2C(0, scl=Pin(39), sda=Pin(38), freq=100000)
    motion = Motion(i2c0, 0x38)
    last_time = time.ticks_us()
    speed = 0
    label_speed.setText(str((str("speed: ") + str(speed))))


def loop():
    global \
        label_speed, \
        title_e, \
        label_vol, \
        label_cur, \
        label_pow, \
        i2c0, \
        motion, \
        speed, \
        voltage, \
        curent, \
        last_time, \
        power
    M5.update()
    voltage = motion.read_voltage()
    curent = motion.read_current()
    power = motion.read_power()
    label_vol.setText(str((str("vol: ") + str(voltage))))
    label_cur.setText(str((str("cur: ") + str(curent))))
    label_pow.setText(str((str("pow: ") + str(power))))


if __name__ == "__main__":
    try:
        setup()
        while True:
            loop()
    except (Exception, KeyboardInterrupt) as e:
        try:
            from utility import print_error_msg

            print_error_msg(e)
        except ImportError:
            print("please update to latest firmware")

Example output:

None

API

Motion

class base.motion.Motion(i2c, address=0x38)

Create an Motion object.

Parameters:

i2c (I2C) – The I2C port to use.
address (int) – The device address. Default is 0x38.

UiFlow2 Code Block:

MicroPython Code Block:

from base import Motion
from machine import I2C

i2c0 = I2C(0, scl=Pin(39), sda=Pin(38), freq=100000)
motion = Motion(i2c0, 0x38)

get_servo_angle(ch)

Get the angle of the servo.

Parameters:: ch (int) – The servo channel. Range: 1~4.
Returns:: Specify the servo angle for the specified channel. Range: 0~180.
Return type:: int

UiFlow2 Code Block:

MicroPython Code Block:

motion.get_servo_angle()

set_servo_angle(ch, angle)

Set the angle of the servo.

Parameters:

ch (int) – The servo channel. Range: 1~4.
angle (int) – The servo angle. Range: 0~180.

UiFlow2 Code Block:

MicroPython Code Block:

motion.set_servo_angle()

get_servo_pulse(ch)

Get the pulse of the servo.

Parameters:: ch (int) – The servo channel. Range: 1~4.
Returns:: Specify the servo pulse for the specified channel. Range: 500~2500.
Return type:: int

UiFlow2 Code Block:

MicroPython Code Block:

motion.get_servo_pulse()

write_servo_pulse(ch, pulse)

Write the pulse of the servo.

Parameters:

ch (int) – The servo channel. Range: 1~4.
pulse (int) – The servo pulse. Range: 500~2500.

UiFlow2 Code Block:

MicroPython Code Block:

motion.write_servo_pulse()

get_motor_speed(ch)

Get the speed of the motor.

Parameters:: ch (int) – The motor channel. Range: 1~2.
Returns:: Specify the speed for the specified channel. Range: -127~127.
Return type:: int

UiFlow2 Code Block:

MicroPython Code Block:

motion.get_motor_speed()

set_motor_speed(ch, speed)

Set motor speed.

Parameters:

ch (int) – The motor channel. Range: 1~2.
speed (int) – The motor speed. Range: -127~127.

UiFlow2 Code Block:

MicroPython Code Block:

motion.set_motor_speed()

read_voltage()

Read voltage (unit: V).

Returns:: The voltage value in volts.
Return type:: float

Note

This method is supported only on Motion Base v1.1 and later versions.

UiFlow2 Code Block:

MicroPython Code Block:

motion.read_voltage()

read_current()

Read current (unit: A).

Returns:: The current value in amperes.
Return type:: float

Note

This method is supported only on Motion Base v1.1 and later versions.

UiFlow2 Code Block:

MicroPython Code Block:

motion.read_current()

read_power()

Read power (unit: W).

Returns:: The power value in watts.
Return type:: float

Note

This method is supported only on Motion Base v1.1 and later versions.

UiFlow2 Code Block:

MicroPython Code Block:

motion.read_power()
