Faces Keyboard3 Module

Faces Keyboard3 is a keyboard input module with mapped-character Normal mode and raw-matrix Direct mode. In Direct mode, the callback receives a tuple of currently pressed key names and the two keyboard LEDs can be controlled.

Support the following products:

UiFlow2 Example

Normal mode key events

This example uses Normal mode and reports each mapped key on the CoreS3 display.

Open the faces_keyboard3_cores3_example.m5f2 project in UiFlow2.

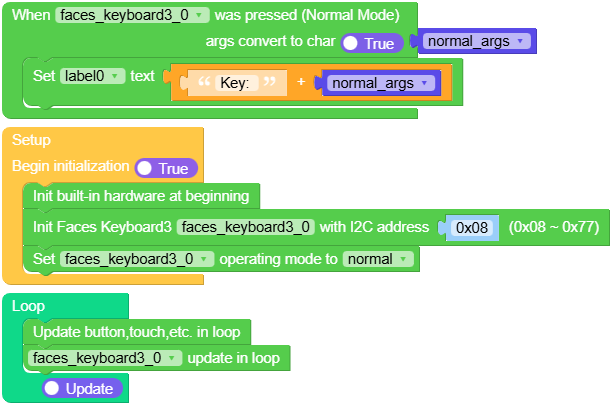

UiFlow2 Code Block:

MicroPython Example

Normal mode key events

Normal mode maps key presses to character codes. Direct mode reports a tuple of currently pressed matrix-key names and also allows LED control.

# SPDX-FileCopyrightText: 2026 M5Stack Technology CO LTD
#
# SPDX-License-Identifier: MIT

import os, sys, io
import M5
from M5 import *
from module import FacesKeyboard3Module


title0 = None
label0 = None
faces_keyboard3_0 = None


normal_args = None


def faces_keyboard3_0_normal_event(args):
    global title0, label0, faces_keyboard3_0, normal_args
    normal_args = chr(args)
    label0.setText(str((str("Key: ") + str(normal_args))))


def setup():
    global title0, label0, faces_keyboard3_0, normal_args

    M5.begin()
    Widgets.setRotation(1)
    Widgets.fillScreen(0x222222)
    title0 = Widgets.Title(
        "Faces Keyboard3 CoreS3 Example", 3, 0xFFFFFF, 0x0000FF, Widgets.FONTS.Montserrat18
    )
    label0 = Widgets.Label("label0", 3, 110, 1.0, 0xFFFFFF, 0x222222, Widgets.FONTS.Montserrat18)

    faces_keyboard3_0 = FacesKeyboard3Module(address=0x08)
    faces_keyboard3_0.set_callback(faces_keyboard3_0_normal_event)
    faces_keyboard3_0.set_mode(FacesKeyboard3Module.NORMAL)


def loop():
    global title0, label0, faces_keyboard3_0, normal_args
    M5.update()
    faces_keyboard3_0.tick()


if __name__ == "__main__":
    try:
        setup()
        while True:
            loop()
    except (Exception, KeyboardInterrupt) as e:
        try:
            from utility import print_error_msg

            print_error_msg(e)
        except ImportError:
            print("please update to latest firmware")

API

class module.faces.FacesKeyboard3Module(address=8)

Bases: _FacesModule

Create a Faces Keyboard3 Module object.

Parameters:

address (int) – I2C address. Default is 0x08.

UiFlow2 Code Block:

MicroPython Code Block:

from module import FacesKeyboard3Module

faces_keyboard3 = FacesKeyboard3Module()

get_mode()

Get the current keyboard operating mode.

NORMAL (0x00) maps key presses to characters; DIRECT (0x01) reports matrix key names.

UiFlow2 Code Block:

MicroPython Code Block:

faces_keyboard3.get_mode()

Return type:

int

set_mode(mode)

Set mapped-character or raw-matrix operating mode.

Parameters:

mode (int) – NORMAL or DIRECT.

Return type:

None

UiFlow2 Code Block:

MicroPython Code Block:

faces_keyboard3.set_mode(faces_keyboard3.DIRECT)

set_led_effect(effect)

Set a keyboard LED effect in Direct mode.

Effects correspond to the keyboard firmware states and LED patterns:

• LED_EFFECT_1: aA single press; left LED stays on.

• LED_EFFECT_2: aA double-press lock; left LED blinks every 500 ms.

• LED_EFFECT_3: ALT active; left LED blinks every 150 ms.

• LED_EFFECT_4: FN single press; right LED stays on.

• LED_EFFECT_5: FN double-press lock; right LED blinks every 500 ms.

• LED_EFFECT_6: SYM double-press lock; right LED blinks every 150 ms.

• LED_EFFECT_7: SYM single press; LEDs alternate every 500 ms.

• LED_EFFECT_8: External effect; LEDs alternate every 200 ms.

Parameters:

effect (int) – One of the LED_EFFECT_* constants.

Return type:

None

UiFlow2 Code Block:

MicroPython Code Block:

faces_keyboard3.set_led_effect(faces_keyboard3.LED_EFFECT_1)

set_led(left, right)

Set the left and right LEDs directly in Direct mode.

UiFlow2 Code Block:

MicroPython Code Block:

faces_keyboard3.set_led(True, False)

Parameters:

• left (bool)

• right (bool)

Return type:

None

set_callback(handler)

Set the key callback.

In Normal mode, the callback receives an integer key code. In Direct mode, it receives a tuple containing the currently pressed key names. Pass None to disable the callback.

Parameters:

handler – Callable accepting the key event value, or None.

Return type:

None

tick()

Poll once and schedule the callback for a new key event.

UiFlow2 Code Block:

MicroPython Code Block:

faces_keyboard3.tick()

Return type:

None

get_device_id()

Get the Faces module device type ID.

Returns:

The device type ID.

Return type:

int

UiFlow2 Code Block:

MicroPython Code Block:

device.get_device_id()

get_firmware_version()

Get the firmware version.

Returns:

The firmware version.

Return type:

int

UiFlow2 Code Block:

MicroPython Code Block:

device.get_firmware_version()

get_i2c_address()

Get the current 7-bit I2C address.

Returns:

The current I2C address.

Return type:

int

UiFlow2 Code Block:

MicroPython Code Block:

device.get_i2c_address()

get_uid()

Get the 96-bit MCU unique identifier.

Returns:

The 12-byte unique identifier.

Return type:

bytes

UiFlow2 Code Block:

MicroPython Code Block:

device.get_uid()

set_i2c_address(address)

Set and persist a new 7-bit I2C address.

Parameters:

address (int) – New address in the range 0x08 to 0x77.

Return type:

None

UiFlow2 Code Block:

MicroPython Code Block:

device.set_i2c_address(0x08)

Keyboard LED constants:

Constant	Value	Description
LED_EFFECT_OFF	0x00	Disable the preset effect
LED_EFFECT_1	0x01	Left LED stays on
LED_EFFECT_2	0x02	Left LED blinks slowly
LED_EFFECT_3	0x03	Left LED blinks quickly
LED_EFFECT_4	0x04	Right LED stays on
LED_EFFECT_5	0x05	Right LED blinks slowly
LED_EFFECT_6	0x06	Right LED blinks quickly
LED_EFFECT_7	0x07	Left and right LEDs alternate slowly
LED_EFFECT_8	0x08	Left and right LEDs alternate quickly

In Normal mode, KEY_BACKSPACE is 0x08, KEY_ENTER is 0x0D, and KEY_DELETE is 0x7F. LED effects and manual LED states are available only in Direct mode.
