Faces Gamepad3 Module

Faces Gamepad3 is an eight-button input module. Button states are active-low: a cleared bit means that the button is pressed.

Support the following products:

UiFlow2 Example

Button event display

This example reports press and release events for the Up and Down buttons. The callback receives True when the selected button is pressed and False when it is released.

Open the faces_gamepad3_cores3_example.m5f2 project in UiFlow2.

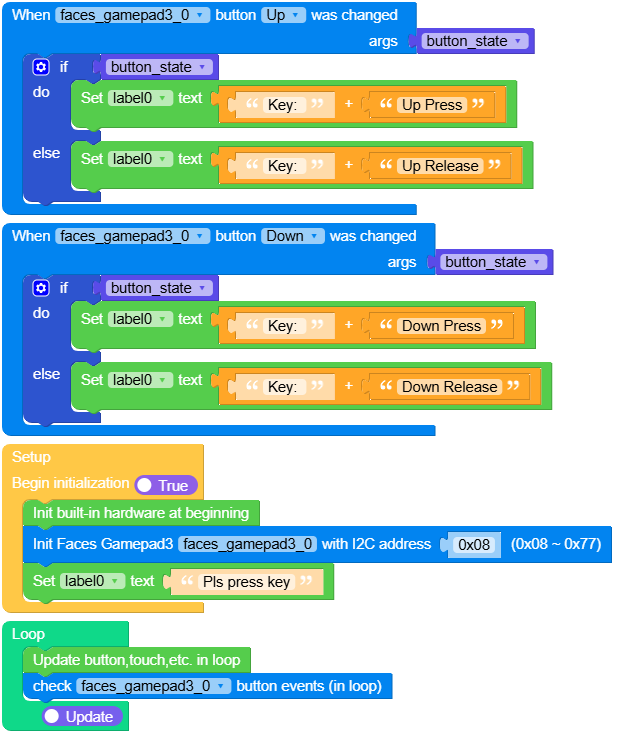

UiFlow2 Code Block:

MicroPython Example

Button event display

Register one callback for each button that should be monitored, then call FacesGamepad3Module.tick() regularly from the main loop.

# SPDX-FileCopyrightText: 2026 M5Stack Technology CO LTD
#
# SPDX-License-Identifier: MIT

import os, sys, io
import M5
from M5 import *
from module import FacesGamepad3Module


title0 = None
label0 = None
faces_gamepad3_0 = None


button_state = None


def faces_gamepad3_0_button_up_event(key_state):
    global title0, label0, faces_gamepad3_0, button_state
    button_state = key_state
    if button_state:
        label0.setText(str((str("Key: ") + str("Up Press"))))
    else:
        label0.setText(str((str("Key: ") + str("Up Release"))))


def faces_gamepad3_0_button_down_event(key_state):
    global title0, label0, faces_gamepad3_0, button_state
    button_state = key_state
    if button_state:
        label0.setText(str((str("Key: ") + str("Down Press"))))
    else:
        label0.setText(str((str("Key: ") + str("Down Release"))))


def setup():
    global title0, label0, faces_gamepad3_0, button_state

    M5.begin()
    Widgets.setRotation(1)
    Widgets.fillScreen(0x222222)
    title0 = Widgets.Title(
        "Faces Gamepad3 CoreS3 Example", 3, 0xFFFFFF, 0x0000FF, Widgets.FONTS.Montserrat18
    )
    label0 = Widgets.Label("label0", 5, 104, 1.0, 0xFFFFFF, 0x222222, Widgets.FONTS.Montserrat18)

    faces_gamepad3_0 = FacesGamepad3Module(address=0x08)
    faces_gamepad3_0.set_callback(faces_gamepad3_0.BUTTON_UP, faces_gamepad3_0_button_up_event)
    faces_gamepad3_0.set_callback(faces_gamepad3_0.BUTTON_DOWN, faces_gamepad3_0_button_down_event)
    label0.setText(str("Pls press key"))


def loop():
    global title0, label0, faces_gamepad3_0, button_state
    M5.update()
    faces_gamepad3_0.tick()


if __name__ == "__main__":
    try:
        setup()
        while True:
            loop()
    except (Exception, KeyboardInterrupt) as e:
        try:
            from utility import print_error_msg

            print_error_msg(e)
        except ImportError:
            print("please update to latest firmware")

API

class module.faces.FacesGamepad3Module(address=8)

Bases: _FacesModule

Create a Faces Gamepad3 Module object.

Parameters:: address (int) – I2C address. Default is 0x08.

UiFlow2 Code Block:

MicroPython Code Block:

from module import FacesGamepad3Module

faces_gamepad3 = FacesGamepad3Module()

get_key_state()

Read the active-low state of all eight buttons.

Returns:: Button state bitmask. A cleared bit means that button is pressed.
Return type:: int

UiFlow2 Code Block:

MicroPython Code Block:

faces_gamepad3.get_key_state()

is_pressed(button, state=None)

Check whether a button or button combination is pressed.

Parameters:

button (int) – One or more BUTTON_* masks.
state (int) – Optional state previously returned by get_key_state().

Returns:

True when every selected button is pressed.

Return type:

bool

set_callback(button, handler)

Set the callback for one button’s state changes.

The callback receives pressed. Pass None to remove the callback.

Parameters:

button (int) – One BUTTON_* constant.
handler – Callable accepting the pressed state, or None.

Return type:

None

tick()

Poll once and invoke the callback for each changed button.

UiFlow2 Code Block:

MicroPython Code Block:

faces_gamepad3.tick()

Return type:: None

get_device_id()

Get the Faces module device type ID.

Returns:: The device type ID.
Return type:: int

UiFlow2 Code Block:

MicroPython Code Block:

device.get_device_id()

get_firmware_version()

Get the firmware version.

Returns:: The firmware version.
Return type:: int

UiFlow2 Code Block:

MicroPython Code Block:

device.get_firmware_version()

get_i2c_address()

Get the current 7-bit I2C address.

Returns:: The current I2C address.
Return type:: int

UiFlow2 Code Block:

MicroPython Code Block:

device.get_i2c_address()

get_uid()

Get the 96-bit MCU unique identifier.

Returns:: The 12-byte unique identifier.
Return type:: bytes

UiFlow2 Code Block:

MicroPython Code Block:

device.get_uid()

set_i2c_address(address)

Set and persist a new 7-bit I2C address.

Parameters:: address (int) – New address in the range 0x08 to 0x77.
Return type:: None

UiFlow2 Code Block:

MicroPython Code Block:

device.set_i2c_address(0x08)

Gamepad button masks:

Constant	Value
`BUTTON_UP`	`0x01`
`BUTTON_DOWN`	`0x02`
`BUTTON_LEFT`	`0x04`
`BUTTON_RIGHT`	`0x08`
`BUTTON_A`	`0x10`
`BUTTON_B`	`0x20`
`BUTTON_SELECT`	`0x40`
`BUTTON_START`	`0x80`
