Widgets — A basic UI library

Micropython Example:

 1# SPDX-FileCopyrightText: 2024 M5Stack Technology CO LTD
 2#
 3# SPDX-License-Identifier: MIT
 4
 5import os, sys, io
 6import M5
 7from M5 import *
 8
 9
10def setup():
11    M5.begin()
12    Widgets.fillScreen(0x222222)
13
14    Widgets.setBrightness(100)
15    Widgets.fillScreen(0x6600CC)
16    Widgets.setRotation(0)
17
18
19def loop():
20    M5.update()
21
22
23if __name__ == "__main__":
24    try:
25        setup()
26        while True:
27            loop()
28    except (Exception, KeyboardInterrupt) as e:
29        try:
30            from utility import print_error_msg
31
32            print_error_msg(e)
33        except ImportError:
34            print("please update to latest firmware")

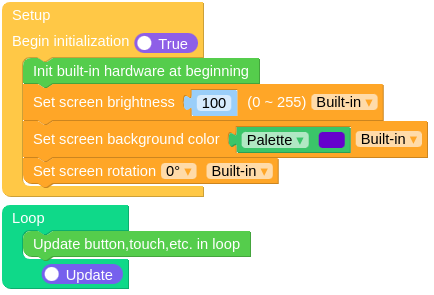

UIFLOW2 Example:


cores3_widgets_example.m5f2

Screen functions

Widgets.setBrightness(brightness: int)

Set the backlight of the monitor。brightness ranges from 0 to 255.

UIFLOW2:


Widgets.fillScreen(color: int)

Set the background color of the monitor. color accepts the color code of RGB888.

UIFLOW2:


Widgets.setRotation(rotation: int)

Set the rotation Angle of the display.

The rotation parameter only accepts the following values:

  • 0: Portrait (0°C)

  • 1: Landscape (90°C)

  • 2: Inverse Portrait (180°C)

  • 3: Inverse Landscape (270°C)

UIFLOW2:


Classes
