Watering Unit

Watering is a capacitive soil moisture detection and adjustment unit. The product integrates water pump and measuring plates for soil moisture detection and pump water control. It can be used for intelligent plant breeding scenarios and can easily achieve humidity detection and Irrigation control. The measurement electrode plate uses the capacitive design, which can effectively avoid the corrosion problem of the electrode plate in actual use compared with the resistive electrode plate.

Support the following products:

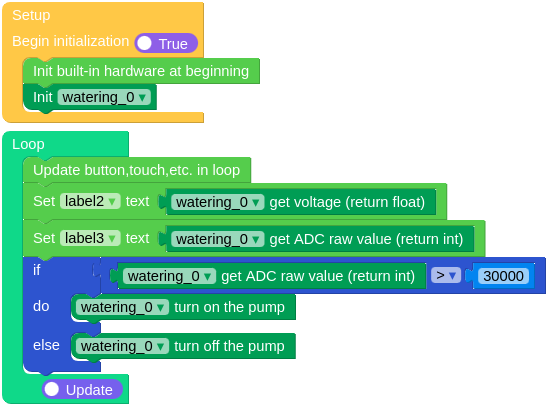

Micropython Example:

import os, sys, io
import M5
from M5 import *
from unit import WateringUnit


label0 = None
label1 = None
label2 = None
label3 = None
watering_0 = None


def setup():
    global label0, label1, label2, label3, watering_0

    M5.begin()
    Widgets.fillScreen(0x222222)
    label0 = Widgets.Label("Voltage:", 50, 80, 1.0, 0xFFFFFF, 0x222222, Widgets.FONTS.DejaVu18)
    label1 = Widgets.Label("ADC:", 50, 140, 1.0, 0xFFFFFF, 0x222222, Widgets.FONTS.DejaVu18)
    label2 = Widgets.Label("label2", 150, 80, 1.0, 0xFFFFFF, 0x222222, Widgets.FONTS.DejaVu18)
    label3 = Widgets.Label("label3", 150, 140, 1.0, 0xFFFFFF, 0x222222, Widgets.FONTS.DejaVu18)

    watering_0 = WateringUnit((8, 9))


def loop():
    global label0, label1, label2, label3, watering_0
    M5.update()
    label2.setText(str(watering_0.get_voltage()))
    label3.setText(str(watering_0.get_raw()))
    if (watering_0.get_raw()) > 30000:
        watering_0.on()
    else:
        watering_0.off()


if __name__ == "__main__":
    try:
        setup()
        while True:
            loop()
    except (Exception, KeyboardInterrupt) as e:
        try:
            from utility import print_error_msg

            print_error_msg(e)
        except ImportError:
            print("please update to latest firmware")
