8Servos Unit

This is the driver library for the 8Servos Unit. It is a 8-channel servo controller that can control up to 8 servos. It can be used to control the angles of the servos, set the pulse width, and set the mode of the servos.

Support the following products:

UiFlow2 Example

servo control

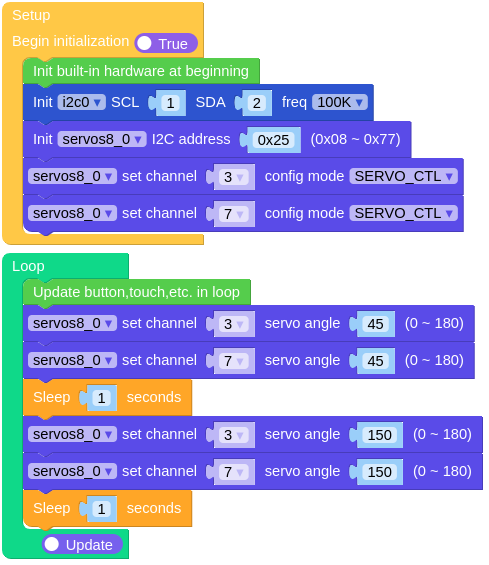

Open the cores3_servo_example.m5f2 project in UiFlow2.

This example controls the servo angle of the 8Servos Unit.

UiFlow2 Code Block:

Example output:

None

rgb control

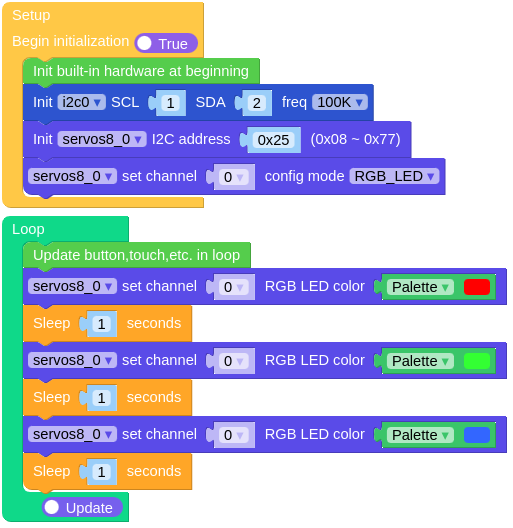

Open the cores3_rgb_example.m5f2 project in UiFlow2.

This example controls the RGB LED of the 8Servos Unit.

UiFlow2 Code Block:

Example output:

None

MicroPython Example

servo control

This example controls the servo angle of the 8Servos Unit.

MicroPython Code Block:

# SPDX-FileCopyrightText: 2025 M5Stack Technology CO LTD
#
# SPDX-License-Identifier: MIT

import os, sys, io
import M5
from M5 import *
from hardware import I2C
from hardware import Pin
from unit import Servos8Unit
import time


label0 = None
i2c0 = None
servos8_0 = None


def setup():
    global label0, i2c0, servos8_0

    M5.begin()
    Widgets.fillScreen(0x222222)
    label0 = Widgets.Label(
        "8Servos Unit", 92, 109, 1.0, 0xFFFFFF, 0x222222, Widgets.FONTS.DejaVu18
    )

    i2c0 = I2C(0, scl=Pin(1), sda=Pin(2), freq=100000)
    servos8_0 = Servos8Unit(i2c0, 0x25)
    servos8_0.set_mode(3, 3)
    servos8_0.set_mode(3, 7)


def loop():
    global label0, i2c0, servos8_0
    M5.update()
    servos8_0.set_servo_angle(45, 3)
    servos8_0.set_servo_angle(45, 7)
    time.sleep(1)
    servos8_0.set_servo_angle(150, 3)
    servos8_0.set_servo_angle(150, 7)
    time.sleep(1)


if __name__ == "__main__":
    try:
        setup()
        while True:
            loop()
    except (Exception, KeyboardInterrupt) as e:
        try:
            from utility import print_error_msg

            print_error_msg(e)
        except ImportError:
            print("please update to latest firmware")

Example output:

None

rgb control

This example controls the RGB LED of the 8Servos Unit.

MicroPython Code Block:

# SPDX-FileCopyrightText: 2025 M5Stack Technology CO LTD
#
# SPDX-License-Identifier: MIT

import os, sys, io
import M5
from M5 import *
from hardware import I2C
from hardware import Pin
from unit import Servos8Unit
import time


label0 = None
i2c0 = None
servos8_0 = None


def setup():
    global label0, i2c0, servos8_0

    M5.begin()
    Widgets.fillScreen(0x222222)
    label0 = Widgets.Label(
        "8Servos Unit", 92, 109, 1.0, 0xFFFFFF, 0x222222, Widgets.FONTS.DejaVu18
    )

    i2c0 = I2C(0, scl=Pin(1), sda=Pin(2), freq=100000)
    servos8_0 = Servos8Unit(i2c0, 0x25)
    servos8_0.set_mode(4, 0)


def loop():
    global label0, i2c0, servos8_0
    M5.update()
    servos8_0.set_rgb_led(0xFF0000, 0)
    time.sleep(1)
    servos8_0.set_rgb_led(0x33FF33, 0)
    time.sleep(1)
    servos8_0.set_rgb_led(0x3366FF, 0)
    time.sleep(1)


if __name__ == "__main__":
    try:
        setup()
        while True:
            loop()
    except (Exception, KeyboardInterrupt) as e:
        try:
            from utility import print_error_msg

            print_error_msg(e)
        except ImportError:
            print("please update to latest firmware")

Example output:

None

API

Servos8Unit

class unit.servos8.Servos8Unit(i2c, address=37)

基类：object

Create a servos 8 unit object.

参数:

i2c (machine.I2C | PAHUBUnit) – The I2C bus the servos 8 unit is connected to.
address (int) – The I2C address of the device. Default is 0x25.

抛出:

UnitError – If the servos 8 unit is not connected.

UiFlow2 Code Block:

MicroPython Code Block:

from hardware import I2C
from unit import Servos8Unit

i2c0 = I2C(0, scl=Pin(1), sda=Pin(2), freq=100000)
servos8_0 = Servos8Unit(i2c0, 0x25)

get_12bit_adc_raw(channel)

Get the 12-bit ADC value of a specific channel.

参数:: channel (int) – The channel number (0 to 7) to get the 12-bit ADC value for.
返回:: The 12-bit ADC value (0 to 4095) of the specified channel.
返回类型:: int

UiFlow2 Code Block:

MicroPython Code Block:

servos8_0.get_12bit_adc_raw(0)

get_8bit_adc_raw(channel)

Get the 8-bit ADC value of a specific channel.

参数:: channel (int) – The channel number (0 to 7) to get the 8-bit ADC value for.
返回:: The 8-bit ADC value (0 to 255) of the specified channel.
返回类型:: int

UiFlow2 Code Block:

MicroPython Code Block:

servos8_0.get_8bit_adc_raw(0)

get_device_spec(mode)

Get the device specification. :param int mode: The mode to get the specification for. :return: The device specification value. :rtype: int

UiFlow2 Code Block:

MicroPython Code Block:

servos8_0.get_device_spec(0xFE)

get_digital_input(channel)

Get the digital input value of a specific channel.

参数:: channel (int) – The channel number (0 to 7) to get the digital input for.
返回:: The digital input value (True or False) of the specified channel.
返回类型:: bool

UiFlow2 Code Block:

MicroPython Code Block:

servos8_0.get_digital_input(0)

get_input_current()

Get the input current of the servos 8 unit.

返回:: The input current in Amperes.
返回类型:: float

UiFlow2 Code Block:

MicroPython Code Block:

servos8_0.get_input_current()

get_mode(channel)

Get the current mode of a specific channel.

参数:: channel (int) – The channel number (0 to 7) to get the mode for.
返回:: The mode of the specified channel.
返回类型:: int

UiFlow2 Code Block:

MicroPython Code Block:

servos8_0.get_mode(0)

get_rgb_led(channel)

Get the RGB LED color of a specific channel.

参数:: channel (int) – The channel number (0 to 7) to get the RGB LED color for.
返回:: The RGB color value (0x000000 to 0xffffff) of the specified channel.
返回类型:: int

UiFlow2 Code Block:

MicroPython Code Block:

servos8_0.get_rgb_led(0)

get_servo_angle(channel)

Get the servo angle of a specific channel.

参数:: channel (int) – The channel number (0 to 7) to get the servo angle for.
返回:: The servo angle (0 to 180) of the specified channel.
返回类型:: int

UiFlow2 Code Block:

MicroPython Code Block:

servos8_0.get_servo_angle(0)

get_servo_pulse(channel)

Get the servo pulse of a specific channel.

参数:: channel (int) – The channel number (0 to 7) to get the servo pulse for.
返回:: The servo pulse (500 to 2500) of the specified channel.
返回类型:: int

UiFlow2 Code Block:

MicroPython Code Block:

servos8_0.get_servo_pulse(0)

set_i2c_address(addr)

Set the I2C address of the servos 8 unit.

参数:: addr (int) – The new I2C address (1 to 127) to set for the servos 8 unit.

UiFlow2 Code Block:

MicroPython Code Block:

servos8_0.set_i2c_address(0x25)

set_mode(mode, channel)

Set the mode of a specific channel.

参数:

mode (int) – The mode to set for the channel.
channel (int) – The channel number (0 to 7) to set the mode for.

返回类型:

None

UiFlow2 Code Block:

MicroPython Code Block:

servos8_0.set_mode(0, 0)

set_output_value(value, channel)

Set the digital output value of a specific channel.

参数:

value (int) – The digital output value (0 or 1) to set for the channel.
channel (int) – The channel number (0 to 7) to set the digital output for.

返回类型:

None

UiFlow2 Code Block:

MicroPython Code Block:

servos8_0.set_output_value(1, 0)

set_pwm_dutycycle(duty, channel)

Set the PWM duty cycle of a specific channel.

参数:

duty (int) – The PWM duty cycle (0 to 100) to set for the channel.
channel (int) – The channel number (0 to 7) to set the PWM duty cycle for.

返回类型:

None

UiFlow2 Code Block:

MicroPython Code Block:

servos8_0.set_pwm_dutycycle(50, 0)

set_rgb_led(rgb, channel)

Set the RGB LED color of a specific channel.

参数:

rgb (int) – The RGB color value (0x000000 to 0xffffff) to set for the channel.
channel (int) – The channel number (0 to 7) to set the RGB LED color for.

返回类型:

None

UiFlow2 Code Block:

MicroPython Code Block:

servos8_0.set_rgb_led(0xFF0000, 0)

set_servo_angle(angle, channel)

Set the servo angle of a specific channel.

参数:

angle (int) – The servo angle (0 to 180) to set for the channel.
channel (int) – The channel number (0 to 7) to set the servo angle for.

返回类型:

None

UiFlow2 Code Block:

MicroPython Code Block:

servos8_0.set_servo_angle(90, 0)

set_servo_pulse(pulse, channel)

Set the servo pulse of a specific channel.

参数:

pulse (int) – The servo pulse (500 to 2500) to set for the channel.
channel (int) – The channel number (0 to 7) to set the servo pulse for.

返回类型:

None

UiFlow2 Code Block:

MicroPython Code Block:

servos8_0.set_servo_pulse(1500, 0)
