Catch Unit

Catch is a gripper that uses a SG92R servo as a power source. The servo uses a PWM signal to drive the gripper gear to rotate and control the gripper for clamping and releasing operations. The structure adopts a design compatible with Lego 8mm round holes. You can combine it with other Lego components to build creative control structures, such as robotic arms, gripper carts, etc.

Support the following products:

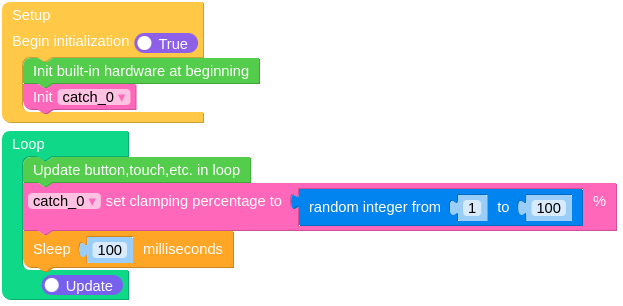

Micropython Example:

# SPDX-FileCopyrightText: 2024 M5Stack Technology CO LTD
#
# SPDX-License-Identifier: MIT

import os, sys, io
import M5
from M5 import *
from unit import CatchUnit
import time


catch_0 = None


import random


def setup():
    global catch_0

    M5.begin()
    Widgets.fillScreen(0x222222)

    catch_0 = CatchUnit((8, 9))


def loop():
    global catch_0
    M5.update()
    catch_0.set_clamp_percent(random.randint(1, 100))
    time.sleep_ms(100)


if __name__ == "__main__":
    try:
        setup()
        while True:
            loop()
    except (Exception, KeyboardInterrupt) as e:
        try:
            from utility import print_error_msg

            print_error_msg(e)
        except ImportError:
            print("please update to latest firmware")
