Puzzle Unit

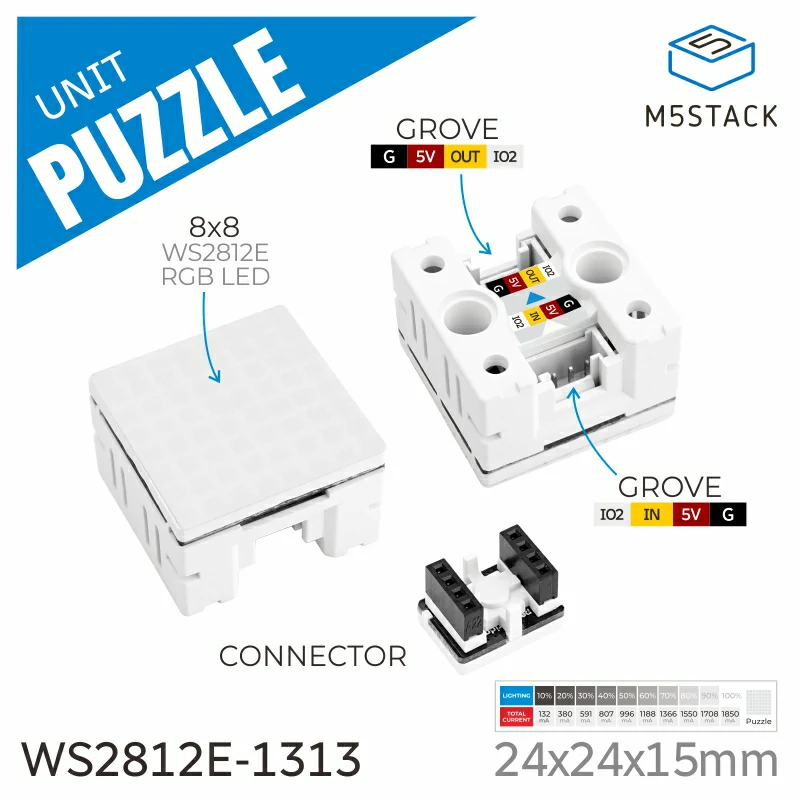

Unit-Puzzle is a colorful lighting control unit, consisting of an 8x8 RGB array of 64 colorful WS2812E RGB lamp beads.

Support the following products:

PuzzleUnit

Micropython Example:

  1# SPDX-FileCopyrightText: 2024 M5Stack Technology CO LTD
  2#
  3# SPDX-License-Identifier: MIT
  4
  5import os, sys, io
  6import M5
  7from M5 import *
  8from unit import PuzzleUnit
  9import time
 10
 11
 12title0 = None
 13label0 = None
 14label1 = None
 15puzzle_0 = None
 16
 17
 18def setup():
 19    global title0, label0, label1, puzzle_0
 20
 21    M5.begin()
 22    Widgets.fillScreen(0x222222)
 23    title0 = Widgets.Title(
 24        "UnitPuzzle M5Core2 Example", 3, 0xFFFFFF, 0x0000FF, Widgets.FONTS.DejaVu18
 25    )
 26    label0 = Widgets.Label(
 27        "Pls see the Puzzle", 76, 102, 1.0, 0xFFFFFF, 0x222222, Widgets.FONTS.DejaVu18
 28    )
 29    label1 = Widgets.Label(
 30        "Program will run automatically", 10, 134, 1.0, 0xFFFFFF, 0x222222, Widgets.FONTS.DejaVu18
 31    )
 32
 33    puzzle_0 = PuzzleUnit((33, 32), 1)
 34    puzzle_0.set_brightness(10)
 35
 36
 37def loop():
 38    global title0, label0, label1, puzzle_0
 39    M5.update()
 40    puzzle_0.set_color(1, 1, 0xFFFFFF)
 41    puzzle_0.set_color(1, 64, 0x66FFFF)
 42    time.sleep(1)
 43    puzzle_0.fill_color(0x6600CC)
 44    time.sleep(1)
 45    puzzle_0.set_color_from(1, 1, 64, 0x6600CC, 0)
 46    puzzle_0.set_color_from(1, 64, 1, 0x33FF33, 30)
 47    time.sleep(1)
 48    puzzle_0.set_color_running_from(1, 1, 64, 0x6600CC, 30)
 49    puzzle_0.set_color_running_from(1, 64, 1, 0x33FF33, 30)
 50    time.sleep(1)
 51    puzzle_0.set_color_saturation_from(1, 1, 64, 0x6600CC, 30)
 52    puzzle_0.set_color_saturation_from(1, 64, 1, 0x33FF33, 30)
 53    time.sleep(1)
 54    puzzle_0.set_random_color_random_led_from(1, 1, 64)
 55    time.sleep(1)
 56    puzzle_0.set_screen(
 57        1,
 58        [
 59            0xFFFFFF,
 60            0xFFFFFF,
 61            0,
 62            0,
 63            0,
 64            0,
 65            0xFFFFFF,
 66            0xFFFFFF,
 67            0xFFFFFF,
 68            0xFFFFFF,
 69            0xFFFFFF,
 70            0,
 71            0,
 72            0xFFFFFF,
 73            0xFFFFFF,
 74            0xFFFFFF,
 75            0xFFFFFF,
 76            0,
 77            0xFFFFFF,
 78            0xFFFFFF,
 79            0xFFFFFF,
 80            0xFFFFFF,
 81            0,
 82            0xFFFFFF,
 83            0xFFFFFF,
 84            0,
 85            0xFFFFFF,
 86            0xFFFFFF,
 87            0xFFFFFF,
 88            0xFFFFFF,
 89            0,
 90            0xFFFFFF,
 91            0xFFFFFF,
 92            0,
 93            0,
 94            0xFFFFFF,
 95            0xFFFFFF,
 96            0,
 97            0,
 98            0xFFFFFF,
 99            0xFFFFFF,
100            0,
101            0,
102            0,
103            0,
104            0,
105            0,
106            0xFFFFFF,
107            0xFFFFFF,
108            0,
109            0,
110            0,
111            0,
112            0,
113            0,
114            0xFFFFFF,
115            0xFFFFFF,
116            0,
117            0,
118            0,
119            0,
120            0,
121            0,
122            0xFFFFFF,
123        ],
124    )
125    time.sleep(1)
126
127
128if __name__ == "__main__":
129    try:
130        setup()
131        while True:
132            loop()
133    except (Exception, KeyboardInterrupt) as e:
134        try:
135            from utility import print_error_msg
136
137            print_error_msg(e)
138        except ImportError:
139            print("please update to latest firmware")

UIFLOW2 Example:


puzzle_core2_example.m5f2

class PuzzleUnit

Constructors

class PuzzleUnit(port, led_board_count)

Initialize the PuzzleUnit.

Parameters:

  • port (tuple) – The port to connect the WS2812 LED strip.

  • led_board_count (int) – Number of connected PuzzleUnit boards.

UIFLOW2:


Methods

PuzzleUnit.fill_color(color)

Set the entire screen or area to a specific RGB color.

Parameters:

color (int) – The RGB color to fill the area with.

UIFLOW2:


PuzzleUnit.set_color(index, color)

Set the color of a specific pixel or LED.

Parameters:

  • index – The index of the pixel or LED to set the color on.

  • color (int) – The color to set, specified in RGB format.

UIFLOW2:


PuzzleUnit.set_brightness(br)

Adjust the brightness of the LEDs based on the given percentage.

Parameters:

br (int) – The brightness percentage (0-100).

UIFLOW2:


PuzzleUnit.set_color_from(board_num, begin, end, rgb, per_delay)

Set color on a range of LEDs starting from a specified board and range.

Parameters:

  • board_num (int) – The board number (starting from 1) where the LEDs are located.

  • begin (int) – The starting LED index on the board.

  • end (int) – The ending LED index on the board.

  • rgb (int) – The color to set, specified in RGB format.

  • per_delay (int) – Delay in milliseconds between setting each LED color.

UIFLOW2:


PuzzleUnit.set_color(board_num, index, rgb)

Set the color of a single LED.

Parameters:

  • board_num (int) – The board number (starting from 1) where the LED is located.

  • index (int) – The LED index to set the color on (1-based index).

  • rgb (int) – The color to set, specified in RGB format.

UIFLOW2:


PuzzleUnit.set_color_saturation_from(board_num, begin, end, rgb_color, per_delay)

Gradually change the color saturation from begin to end on a range of LEDs.

Parameters:

  • board_num (int) – The board number (starting from 1) where the LEDs are located.

  • begin (int) – The starting LED index on the board.

  • end (int) – The ending LED index on the board.

  • rgb_color (int) – The base RGB color to apply saturation to.

  • per_delay (int) – Delay in milliseconds between each LED color change.

UIFLOW2:


PuzzleUnit.set_color_running_from(board_num, begin, end, rgb, per_delay)

Create a running color effect on a range of LEDs from begin to end.

Parameters:

  • board_num (int) – The board number (starting from 1) where the LEDs are located.

  • begin (int) – The starting LED index on the board.

  • end (int) – The ending LED index on the board.

  • rgb (int) – The color to set, specified in RGB format.

  • per_delay (int) – Delay in milliseconds between setting each LED color.

UIFLOW2:

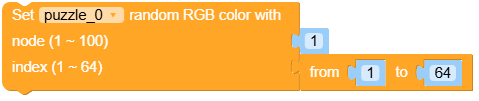

PuzzleUnit.set_random_color_random_led_from(board_num, begin, end)

Set a random color to each LED within the specified range.

Parameters:

  • board_num (int) – The board number (starting from 1) where the LEDs are located.

  • begin (int) – The starting LED index on the board.

  • end (int) – The ending LED index on the board.

UIFLOW2:


PuzzleUnit.set_screen(board_num, color_list)

Set the screen of a specific board with a list of colors.

Parameters:

  • board_num (int) – The board number to which the colors should be applied.

  • color_list (list) – A list of colors to apply to the screen.

UIFLOW2:
