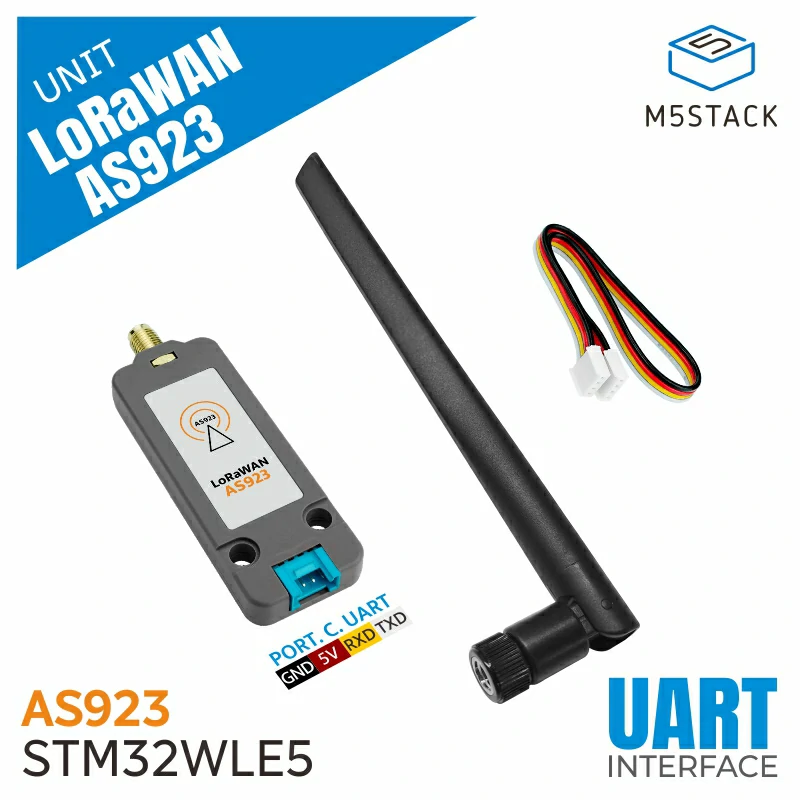

LoRaWAN-X Unit

Unit LoRaWAN-X is a LoRaWAN communication module based on LoRa technology, specifically designed for those frequency band. The module adopts the STM32WLE5 solution, supporting long-range communication with low power consumption and high sensitivity characteristics. The module integrates the LoRaWAN protocol stack and supports three operating modes: Class A, Class B, and Class C. It also supports point-to-point (P2P) communication mode and uses a UART communication interface (controlled by the AT command set) for flexible configuration.

Support the following products:

LoRaWAN-CN470

LoRaWAN-AS923

LoRaWAN-EU868

LoRaWAN-US915

Micropython LoRaWAN-CN470 LoRaWAN OTAA Mode Example:

 1# SPDX-FileCopyrightText: 2024 M5Stack Technology CO LTD
 2#
 3# SPDX-License-Identifier: MIT
 4
 5import os, sys, io
 6import M5
 7from M5 import *
 8from unit import LoRaWANUnit_RUI3
 9import time
10
11
12title0 = None
13label2 = None
14label0 = None
15label1 = None
16lorawancn470_0 = None
17
18
19def setup():
20    global title0, label2, label0, label1, lorawancn470_0
21
22    M5.begin()
23    Widgets.fillScreen(0x222222)
24    title0 = Widgets.Title(
25        "LoRaWAN OTAA CoreS3 Example", 3, 0xFFFFFF, 0x0000FF, Widgets.FONTS.DejaVu18
26    )
27    label2 = Widgets.Label(
28        "LoRa Message Rec:", 1, 172, 1.0, 0xFFFFFF, 0x222222, Widgets.FONTS.DejaVu18
29    )
30    label0 = Widgets.Label(
31        "LoRa Network Join status:", 1, 68, 1.0, 0xFFFFFF, 0x222222, Widgets.FONTS.DejaVu18
32    )
33    label1 = Widgets.Label(
34        "LoRa Message Send status:", 1, 121, 1.0, 0xFFFFFF, 0x222222, Widgets.FONTS.DejaVu18
35    )
36
37    lorawancn470_0 = LoRaWANUnit_RUI3(2, port=(1, 2))
38    lorawancn470_0.set_network_mode(1)
39    lorawancn470_0.set_otaa_config("xxxxx", "xxxxx", "xxxxx")
40    lorawancn470_0.set_channel_mask("0400")
41    lorawancn470_0.set_rx_delay_on_window1(1)
42    lorawancn470_0.set_rx_delay_on_window2(2)
43    lorawancn470_0.set_rx_data_rate_on_windows2(0)
44    lorawancn470_0.set_lorawan_node_class("C")
45    lorawancn470_0.join_network(0)
46
47
48def loop():
49    global title0, label2, label0, label1, lorawancn470_0
50    M5.update()
51    label0.setText(
52        str((str("LoRa Network Join status:") + str((lorawancn470_0.get_join_state()))))
53    )
54    if lorawancn470_0.get_join_state():
55        label1.setText(
56            str(
57                (
58                    str("LoRa Message Send status:")
59                    + str((lorawancn470_0.send_data(1, "aabbcc", 6000)))
60                )
61            )
62        )
63        label2.setText(str((str("LoRa Message Rec:") + str((lorawancn470_0.get_last_receive())))))
64    time.sleep(6)
65
66
67if __name__ == "__main__":
68    try:
69        setup()
70        while True:
71            loop()
72    except (Exception, KeyboardInterrupt) as e:
73        try:
74            from utility import print_error_msg
75
76            print_error_msg(e)
77        except ImportError:
78            print("please update to latest firmware")

Micropython LoRaWAN-CN470 P2P Mode TX Example:

 1# SPDX-FileCopyrightText: 2024 M5Stack Technology CO LTD
 2#
 3# SPDX-License-Identifier: MIT
 4
 5import os, sys, io
 6import M5
 7from M5 import *
 8from unit import LoRaWANUnit_RUI3
 9import time
10
11
12title0 = None
13label0 = None
14lorawancn470_0 = None
15
16
17def setup():
18    global title0, label0, lorawancn470_0
19
20    M5.begin()
21    Widgets.fillScreen(0x222222)
22    title0 = Widgets.Title(
23        "LoRaWAN P2P Send CoreS3 e.g.", 3, 0xFFFFFF, 0x0000FF, Widgets.FONTS.DejaVu18
24    )
25    label0 = Widgets.Label(
26        "P2P Message Send State:", 3, 115, 1.0, 0xFFFFFF, 0x222222, Widgets.FONTS.DejaVu18
27    )
28
29    lorawancn470_0 = LoRaWANUnit_RUI3(2, port=(1, 2))
30    lorawancn470_0.set_network_mode(0)
31    lorawancn470_0.set_p2p_frequency(470000000)
32    lorawancn470_0.set_p2p_spreading_factor(7)
33    lorawancn470_0.set_p2p_bandwidth(0)
34    lorawancn470_0.set_p2p_tx_power(14)
35    lorawancn470_0.set_p2p_code_rate(0)
36    lorawancn470_0.set_p2p_preamble_length(8)
37    lorawancn470_0.set_p2p_sync_word(0xFFFF)
38
39
40def loop():
41    global title0, label0, lorawancn470_0
42    M5.update()
43    label0.setText(
44        str(
45            (
46                str("P2P Message Send State:")
47                + str((lorawancn470_0.send_p2p_data("M5", timeout=1000, to_hex=True)))
48            )
49        )
50    )
51    time.sleep(3.5)
52
53
54if __name__ == "__main__":
55    try:
56        setup()
57        while True:
58            loop()
59    except (Exception, KeyboardInterrupt) as e:
60        try:
61            from utility import print_error_msg
62
63            print_error_msg(e)
64        except ImportError:
65            print("please update to latest firmware")

Micropython LoRaWAN-CN470 P2P Mode RX Example:

 1# SPDX-FileCopyrightText: 2024 M5Stack Technology CO LTD
 2#
 3# SPDX-License-Identifier: MIT
 4
 5import os, sys, io
 6import M5
 7from M5 import *
 8from unit import LoRaWANUnit_RUI3
 9import time
10
11
12title0 = None
13label0 = None
14lorawancn470_0 = None
15
16
17def setup():
18    global title0, label0, lorawancn470_0
19
20    M5.begin()
21    Widgets.fillScreen(0x222222)
22    title0 = Widgets.Title(
23        "LoRaWAN P2P Rec CoreS3 e.g.", 3, 0xFFFFFF, 0x0000FF, Widgets.FONTS.DejaVu18
24    )
25    label0 = Widgets.Label(
26        "P2P Message Rec:", 3, 115, 1.0, 0xFFFFFF, 0x222222, Widgets.FONTS.DejaVu18
27    )
28
29    lorawancn470_0 = LoRaWANUnit_RUI3(2, port=(1, 2))
30    lorawancn470_0.set_network_mode(0)
31    lorawancn470_0.set_p2p_frequency(470000000)
32    lorawancn470_0.set_p2p_spreading_factor(7)
33    lorawancn470_0.set_p2p_bandwidth(0)
34    lorawancn470_0.set_p2p_tx_power(14)
35    lorawancn470_0.set_p2p_code_rate(0)
36    lorawancn470_0.set_p2p_preamble_length(8)
37    lorawancn470_0.set_p2p_sync_word(0xFFFF)
38
39
40def loop():
41    global title0, label0, lorawancn470_0
42    M5.update()
43    label0.setText(
44        str((str("P2P Message Rec:") + str((lorawancn470_0.get_p2p_receive_data(3000, True)))))
45    )
46    time.sleep(3.5)
47
48
49if __name__ == "__main__":
50    try:
51        setup()
52        while True:
53            loop()
54    except (Exception, KeyboardInterrupt) as e:
55        try:
56            from utility import print_error_msg
57
58            print_error_msg(e)
59        except ImportError:
60            print("please update to latest firmware")

UIFLOW2 LoRaWAN-CN470 LoRaWAN OTAA Mode Example:

UIFLOW2 LoRaWAN-CN470 P2P Mode TX Example:

UIFLOW2 LoRaWAN-CN470 P2P Mode RX Example:

class LoRaWAN_X

Constructors

class LoRaWAN_X(id, tx, rx, debug)

Initialize the LoRaWAN_X module by setting up UART communication with the specified parameters.

Parameters:
  • id – The UART ID used for communication.

  • tx – The UART TX pin.

  • rx – The UART RX pin.

  • debug (bool) – Enables debug mode to log additional details, default is False.

UIFLOW2:


Methods

LoRaWAN_X.set_abp_config(dev_addr, apps_key, nwks_key)

Configure the device for ABP (Activation By Personalization) mode using the provided device address, application session key, and network session key.

Parameters:
  • dev_addr (str) – The device address for ABP configuration.

  • apps_key (str) – The application session key for encryption.

  • nwks_key (str) – The network session key for communication.

UIFLOW2:


LoRaWAN_X.get_abp_config()

Retrieve the current ABP configuration, including the device address, application session key, and network session key.

Returns:

A tuple containing the device address, application session key, and network session key. Returns None or False for missing or invalid configurations.

UIFLOW2:


LoRaWAN_X.set_otaa_config(device_eui, app_eui, app_key)

Configure the device for OTAA (Over-The-Air Activation) mode using the provided device EUI, application EUI, and application key.

Parameters:
  • device_eui – The device EUI for OTAA configuration.

  • app_eui – The application EUI for OTAA configuration.

  • app_key – The application key for encryption.

UIFLOW2:


LoRaWAN_X.get_otaa_config()

Retrieve the current OTAA configuration, including the device EUI, application key, and application EUI.

Returns:

A tuple containing the device EUI, application key, and application EUI.

UIFLOW2:


LoRaWAN_X.send_cmd(cmd, have_return, is_single, async_event, timeout)

Sends an AT command to the module and optionally reads the response.

Parameters:
  • cmd – The AT command string to send.

  • have_return (bool) – Specifies whether to read a response from the module.

  • is_single (bool) – Indicates if the command expects a single-line response.

  • async_event (bool) – Specifies whether to handle asynchronous events.

  • timeout (int) – The timeout duration in milliseconds for receiving a response, default is 100ms.

Returns:

The processed response from the module or None if no response is expected.

LoRaWAN_X.read_response(cmd, is_single, async_event, timeout)

Reads and processes the module response to an AT command.

Parameters:
  • cmd – The AT command sent to the module.

  • is_single (bool) – Indicates if a single-line response is expected.

  • async_event (bool) – Specifies whether to handle asynchronous events.

  • timeout (int) – The timeout duration in milliseconds for receiving a response.

Returns:

  • True if the response is valid and matches a single-line expectation.

  • A processed response string when CMD+RESPONSE is received.

  • An event response string if async_event is enabled and an event is detected.

  • False if no valid response is received or an error occurs.

LoRaWAN_X.get_commuinication_state()

Checks the communication state by sending the AT command and expecting a response.

Returns:

The response from the module indicating the communication state.

LoRaWAN_X.reset_module()

Resets the module using the ATZ command.

LoRaWAN_X.reset_module_to_default()

Resets the module to its default settings using the ATR command. Waits for the reset process to complete.

UIFLOW2:


LoRaWAN_X.get_serial_number()

Retrieves the serial number of the module.

Returns:

The serial number as a string.

LoRaWAN_X.get_fireware_version()

Retrieves the firmware version of the module.

Returns:

The firmware version as a string.

LoRaWAN_X.get_at_version()

Retrieves the AT command version supported by the module.

Returns:

The AT command version as a string.

LoRaWAN_X.get_hardware_version()

Retrieves the hardware version of the module.

Returns:

The hardware version as a string.

LoRaWAN_X.get_hardware_id()

Retrieves the hardware ID of the module.

Returns:

The hardware ID as a string.

LoRaWAN_X.get_ble_mac()

Retrieves the Bluetooth MAC address of the module.

Returns:

The BLE MAC address as a string.

LoRaWAN_X.set_sleep_time(time)

Configures the sleep time for the module. If no time is provided, the module enters sleep mode.

Parameters:

time – The sleep duration in seconds. If None, triggers sleep mode without specifying a duration.

Returns:

True if the command is successfully sent, else False.

LoRaWAN_X.get_low_power_mode()

Checks if the module is in low-power mode.

Returns:

True if low-power mode is enabled, otherwise False.

LoRaWAN_X.set_low_power_mode(mode)

Sets the module low-power mode.

Parameters:

mode (bool) – A boolean value indicating whether to enable (True) or disable (False) low-power mode.

Returns:

True if the command is successfully sent, else False.

LoRaWAN_X.set_baud_rate(rate)

Sets the baud rate for UART communication.

Parameters:

rate – The desired baud rate value.

Returns:

True if the command is successfully sent, else False.

LoRaWAN_X.get_baud_rate()

Retrieves the current UART baud rate setting.

Returns:

The baud rate as an integer.

LoRaWAN_X.get_device_eui()

Retrieves the Device EUI for OTAA (Over-The-Air Activation) mode.

Returns:

The Device EUI as a string.

LoRaWAN_X.set_device_eui(eui)

Configures the Device EUI for OTAA mode.

Parameters:

eui (str) – The Device EUI to set, as a string.

Returns:

True if the command is successfully sent, else False.

LoRaWAN_X.get_app_eui()

Retrieves the Application EUI for OTAA mode.

Returns:

The Application EUI as a string.

LoRaWAN_X.set_app_eui(eui)

Configures the Application EUI for OTAA mode.

Parameters:

eui (str) – The Application EUI to set, as a string.

Returns:

True if the command is successfully sent, else False.

LoRaWAN_X.get_app_key()

Retrieves the Application Key for OTAA mode.

Returns:

The Application Key as a string.

LoRaWAN_X.set_app_key(key)

Configures the Application Key for OTAA mode.

Parameters:

key (str) – The Application Key to set, as a string.

Returns:

True if the command is successfully sent, else False.

LoRaWAN_X.get_device_address()

Retrieves the device address.

Returns:

The device address as a string.

LoRaWAN_X.set_device_address(address)

Sets the device address.

Parameters:

address (str) – The device address to set, provided as a string.

Returns:

The application session key as a string.

LoRaWAN_X.get_apps_key()

Retrieves the application session key.

Returns:

The result of the AT command execution

LoRaWAN_X.set_apps_key(key)

Sets the application session key. This operation is applicable only in ABP mode.

Parameters:

key (str) – The application session key to set, provided as a string.

Returns:

The network session key as a string.

LoRaWAN_X.get_networks_key()

Retrieves the network session key.

Returns:

The result of the AT command execution

LoRaWAN_X.set_networks_key(key)

Sets the network session key. This operation is applicable only in ABP mode.

Parameters:

key (str) – The network session key to set, provided as a string.

Returns:

The result of the AT command execution

LoRaWAN_X.set_network_id(id)

Sets the network ID.

Parameters:

id (str) – The network ID to set, provided as a string.

Returns:

The network ID as a string.

LoRaWAN_X.get_network_id()

Retrieves the network ID.

Returns:

The multicast root key as a string.

LoRaWAN_X.get_mc_root_key()

Retrieves the multicast root key.

Returns:

True if confirmation mode is enabled; otherwise, False.

LoRaWAN_X.get_confirm_mode()

Retrieves the confirmation mode.

Returns:

The result of the AT command execution

LoRaWAN_X.set_confirm_mode(mode)

Sets the confirmation mode.

Parameters:

mode (bool) – A boolean indicating whether to enable (True) or disable (False) confirmation mode.

Returns:

True if the last confirmed uplink succeeded; otherwise, False.

LoRaWAN_X.get_confirm_state()

Retrieves the status of the last confirmed uplink.

Returns:

A tuple containing state, auto_join, retry_interval, and max_retry as integers, or False if retrieval failed.

LoRaWAN_X.get_join_config()

Retrieves the current join configuration for LoRa.

Returns:

True if the module successfully joins the network, otherwise False

LoRaWAN_X.set_join_config(state, auto_join, retry_interval, max_retry, timeout)

Configures the join parameters for LoRa. The configuration does not confirm network join success.

Returns:

True if the command is successfully set, else False.

Parameters:
  • state (int) – The join state to configure, as an integer.

  • auto_join (int) – The auto-join flag, as an integer.

  • retry_interval (int) – The interval between join retries, default is 8 seconds.

  • max_retry (int) – The maximum number of retries, default is 0 (no limit).

  • timeout (int) – The timeout duration in milliseconds for the command, default is 8000ms.

Returns:

The join mode as an integer (0 for ABP, 1 for OTAA).

UIFLOW2:


LoRaWAN_X.join_network(timeout)

Joins the LoRa network using predefined join parameters.

Parameters:

timeout (int) – The timeout duration in milliseconds for the join command, default is 8000ms.

Returns:

True if the command is successfully set, else False.

UIFLOW2:



LoRaWAN_X.get_join_mode()

Retrieves the current join mode. 0 indicates ABP mode, 1 indicates OTAA mode.

Returns:

True if joined, otherwise False.

LoRaWAN_X.set_join_mode(mode)

Sets the join mode for the LoRa module.

Parameters:

mode (int) – The join mode to set, 0 for ABP or 1 for OTAA.

Returns:

The received data as a string.

UIFLOW2:


LoRaWAN_X.get_join_state()

Checks whether the module has successfully joined the network. 1 indicates joined, 0 indicates not joined.

Returns:

True if the data was sent successfully, otherwise False.

UIFLOW2:


LoRaWAN_X.get_last_receive()

Retrieves the data from the last received message.

Returns:

True if the data was sent successfully, otherwise False.

UIFLOW2:


LoRaWAN_X.send_data(port, data, timeout)

Sends data through a specific port.

Parameters:
  • port (int) – The port number to send data through.

  • data (bytes) – The data to send, provided as bytes.

  • timeout (int) – The timeout duration in milliseconds for the send command, default is 600ms.

Returns:

True if the command is successfully set, else False.

UIFLOW2:



LoRaWAN_X.send_long_data(port, ack, data, timeout)

Sends long data through a specific port with optional acknowledgment.

Parameters:
  • port (int) – The port number to send data through.

  • ack (bool) – Indicates whether acknowledgment is required (True or False).

  • data (bytes) – The long data to send, provided as bytes.

  • timeout (int) – The timeout duration in milliseconds for the send command, default is 500ms.

Returns:

The retry cycle value as an integer.

LoRaWAN_X.set_retry(retry)

Configures the retry cycle for transmissions.

Parameters:

retry (int) – The retry cycle value, ranging from 0 to 7, default is 0.

Returns:

True if the command is successfully set, else False.

LoRaWAN_X.get_retry()

Retrieves the current retry cycle configuration.

Returns:

The retry cycle value as an integer.

LoRaWAN_X.get_adaptive_rate_state()

Checks whether adaptive data rate (ADR) is enabled. 1 indicates enabled, 0 indicates disabled.

Returns:

True if ADR is enabled, otherwise False.

LoRaWAN_X.set_adaptive_rate_state(state)

Configures the adaptive data rate (ADR) state.

Parameters:

state (bool) – A boolean indicating whether to enable (True) or disable (False) ADR.

Returns:

True if the command is successfully set, else False.

LoRaWAN_X.get_lorawan_node_class()

Retrieves the current LoRaWAN node class.

Returns:

The LoRaWAN node class as a string.

LoRaWAN_X.set_lorawan_node_class(node_class)

Sets the LoRaWAN node class.

Parameters:

node_class (str) – The node class to set, provided as a string

Returns:

True if the command is successfully set, else False.

LoRaWAN_X.get_duty_cycle_state()

Checks whether the ETSI duty cycle is enabled. 1 indicates enabled, 0 indicates disabled.

Returns:

True if the duty cycle is enabled, otherwise False.

LoRaWAN_X.set_duty_cycle_state(state)

Sets the ETSI duty cycle state, which can be enabled or disabled depending on the region.

Parameters:

state (bool) – A boolean indicating whether to enable (True) or disable (False) the duty cycle.

Returns:

The result of the AT command execution.

LoRaWAN_X.get_data_rate()

Retrieves the current data rate configuration.

Returns:

The data rate as an integer.

LoRaWAN_X.set_data_rate(rate)

Sets the data rate for communication.

Parameters:

rate (int) – The data rate to set, provided as an integer.

Returns:

The result of the AT command execution.

LoRaWAN_X.get_join_delay_on_window1()

Retrieves the delay for the join procedure on window 1.

Returns:

The join delay for window 1 as an integer.

LoRaWAN_X.set_join_delay_on_window1(delay)

Sets the join delay for window 1.

Parameters:

delay (int) – The join delay to set for window 1 as an integer.

Returns:

The result of the AT command execution.

LoRaWAN_X.get_join_delay_on_window2()

Retrieves the delay for the join procedure on window 2.

Returns:

The join delay for window 2 as an integer.

LoRaWAN_X.set_join_delay_on_window2(delay)

Sets the join delay for window 2.

Parameters:

delay (int) – The join delay to set for window 2 as an integer.

Returns:

The result of the AT command execution.

LoRaWAN_X.get_public_network_mode()

Retrieves the public network mode (enabled or disabled).

Returns:

True if public network mode is enabled, False otherwise.

LoRaWAN_X.set_public_network_mode(mode)

Sets the public network mode to enabled or disabled.

Parameters:

mode (bool) – A boolean indicating whether to enable (True) or disable (False) the public network mode.

Returns:

The result of the AT command execution.

LoRaWAN_X.get_rx_delay_on_window1()

Retrieves the receive window 1 delay.

Returns:

The receive window 1 delay as an integer.

LoRaWAN_X.set_rx_delay_on_window1(delay)

Sets the receive delay for window 1.

Parameters:

delay (int) – The delay to set for receive window 1 as an integer.

Returns:

The result of the AT command execution.

LoRaWAN_X.get_rx_delay_on_window2()

Retrieves the receive window 2 delay.

Returns:

The receive window 2 delay as an integer.

LoRaWAN_X.set_rx_delay_on_window2(delay)

Sets the receive delay for window 2.

Parameters:

delay (int) – The delay to set for receive window 2, with a range of 2 to 16.

Returns:

The result of the AT command execution.

LoRaWAN_X.get_rx_data_rate_on_windows2()

Retrieves the receive data rate for window 2.

Returns:

The receive data rate for window 2 as an integer.

LoRaWAN_X.set_rx_data_rate_on_windows2(rate)

Sets the receive data rate for window 2.

Parameters:

rate (int) – The data rate to set for window 2.

Returns:

The result of the AT command execution.

LoRaWAN_X.get_rx_frequency_on_windows2()

Retrieves the receive frequency for window 2, based on regional frequency settings.

Returns:

The receive frequency for window 2 as an integer.

LoRaWAN_X.get_tx_power()

Retrieves the current transmit power setting.

Returns:

The transmit power setting as an integer.

LoRaWAN_X.set_tx_power(power)

Sets the transmit power.

Parameters:

power (int) – The transmit power to set.

Returns:

The result of the AT command execution.

Retrieves the network link state.

Returns:

The network link state as a string.

Parameters:

state (int) – Sets the network link state for the device. 0 - Disable Link Check 1 - Execute Link Check once on the next payload uplink 2 - Automatically execute Link Check after every payload uplink

Returns:

The result of the AT command execution.

LoRaWAN_X.get_listen_before_talk()

Retrieves the Listen Before Talk (LBT) state.

Returns:

True if LBT is enabled, False if not.

LoRaWAN_X.set_listen_before_talk(state)

Sets the Listen Before Talk (LBT) state.

Parameters:

state (bool) – The state to set for LBT (True for enabled, False for disabled).

Returns:

The result of the AT command execution.

LoRaWAN_X.set_listen_before_talk_rssi(rssi)

Sets the RSSI threshold for Listen Before Talk (LBT).

Parameters:

rssi (int) – The RSSI threshold to set for LBT.

Returns:

The result of the AT command execution.

LoRaWAN_X.get_listen_before_talk_rssi()

Retrieves the RSSI threshold for Listen Before Talk (LBT).

Returns:

The RSSI threshold as an integer.

LoRaWAN_X.get_listen_before_talk_scan_time()

Retrieves the scan time for Listen Before Talk (LBT).

Returns:

The scan time for LBT as an integer.

LoRaWAN_X.set_listen_before_talk_scan_time(time)

Sets the scan time for Listen Before Talk (LBT).

Parameters:

time (int) – The scan time to set for LBT.

Returns:

The result of the AT command execution.

LoRaWAN_X.get_time_request()

Retrieves the time request state.

Returns:

The time request state as an integer.

LoRaWAN_X.set_time_request(state)

Sets the time request state.

Parameters:

state (bool) – The state to set for time request (True to enable, False to disable).

Returns:

The result of the AT command execution.

LoRaWAN_X.get_location_time()

Retrieves the location time in UTC+0.

Returns:

The location time in UTC+0 as a string.

LoRaWAN_X.get_unicast_ping_interval()

Retrieves the unicast ping interval in Class B mode.

Returns:

The unicast ping interval as an integer.

LoRaWAN_X.set_unicast_ping_interval(interval)

Sets the unicast ping interval for the device.

Parameters:

interval (int) – The interval to set for the unicast ping (0 to 7). 0 means approximately every second during the beacon window, and 7 means every 128 seconds (maximum ping period).

Returns:

The result of the AT command execution.

LoRaWAN_X.get_beacon_frequency()

Retrieves the beacon frequency.

Returns:

The beacon frequency as an integer.

LoRaWAN_X.get_beacon_time()

Retrieves the beacon time.

Returns:

The beacon time as an integer.

LoRaWAN_X.get_beacon_gateway_gps()

Retrieves the beacon gateway GPS location.

Returns:

The beacon gateway GPS information as a string.

LoRaWAN_X.get_rssi()

Retrieves the Received Signal Strength Indicator (RSSI).

Returns:

The RSSI value as a string.

LoRaWAN_X.get_all_rssi()

Retrieves the RSSI values from all channels.

Returns:

The RSSI values for all channels as a string.

LoRaWAN_X.get_signal_noise_ratio()

Retrieves the Signal-to-Noise Ratio (SNR).

Returns:

The SNR value as a string.

LoRaWAN_X.get_channel_mask()

Retrieves the channel mask (only for US915, AU915, CN470).

Returns:

The channel mask as a string.

LoRaWAN_X.set_channel_mask(mask)

Sets the channel mask to open or close specific channels (only for US915, AU915, CN470).

Parameters:

mask (str) – The channel mask as a 4-length hexadecimal string.

Returns:

The result of the AT command execution.

LoRaWAN_X.get_eight_channel_mode_state()

Retrieves the state of the eight-channel mode.

Returns:

The state of the eight-channel mode as a string.

LoRaWAN_X.set_eight_channel_mode_state(max_group)

Sets the state of the eight-channel mode, with a group number between 1 and 12.

Parameters:

max_group (int) – The maximum group number (1 to 12).

Returns:

True if the AT command execution is successful, False otherwise.

LoRaWAN_X.get_single_channel_mode()

Retrieves the single channel mode.

Returns:

The single channel mode as a string.

LoRaWAN_X.set_single_channel_mode()

Sets the single channel mode.

Returns:

The result of the AT command execution.

LoRaWAN_X.get_active_region()

Retrieves the active region for the device.

Returns:

The active region as a string.

LoRaWAN_X.set_active_region(region)
Parameters:

region (int) – Sets the active region for the device.

Returns:

The result of the AT command execution.

  • EU433: 0

  • CN470: 1

  • RU864: 2

  • IN865: 3

  • EU868: 4

  • US915: 5

  • AU915,: 6

  • KR920,: 7

  • AS923-1: 8

  • AS923-2: 9

  • AS923-3: 10

  • AS923-4: 11

  • LA915: 12

LoRaWAN_X.add_multicast_group(Class, DevAddr, NwkSKey, AppSKey, Frequency, Datarate, Periodicit)

Adds a multicast group to the device.

Parameters:
  • Class (str) – The class of the multicast group.

  • DevAddr – The device address.

  • NwkSKey – The network session key.

  • AppSKey – The application session key.

  • Frequency – The frequency for the multicast group.

  • Datarate – The datarate for the multicast group.

  • Periodicit – The periodicity for the multicast group.

Returns:

The result of the AT command execution.

LoRaWAN_X.remove_multicast_group(DevAddr)

Removes a multicast group by the given device address.

Parameters:

DevAddr – The device address of the multicast group to remove.

Returns:

The result of the AT command execution.

LoRaWAN_X.get_multicast_list()

Retrieves the list of multicast groups.

Returns:

The list of multicast groups as a string.

LoRaWAN_X.get_network_mode()

Retrieves the current network mode.

Returns:

The current network mode as an integer

  • P2P_LORA: 0

  • LoRaWAN: 1

  • P2P_FSK: 2

LoRaWAN_X.set_network_mode(mode)

Sets the network mode for the device.

Parameters:

mode (int) –

The mode to set for the get_network_id.

  • P2P_LORA: 0

  • LoRaWAN: 1

  • P2P_FSK: 2

Returns:

The result of the AT command execution.

UIFLOW2:


LoRaWAN_X.get_p2p_frequency()

Retrieves the current P2P frequency.

Returns:

The current P2P frequency as an integer.

UIFLOW2:


LoRaWAN_X.set_p2p_frequency(frequency)

Sets the P2P frequency for the device.

Parameters:

frequency (int) –

The frequency to set for P2P communication.

  • Low-frequency : 150000000-525000000

  • High-frequency : 525000000-960000000

Returns:

The result of the AT command execution.

UIFLOW2:


LoRaWAN_X.get_p2p_spreading_factor()

Retrieves the current P2P spreading factor.

Returns:

The current P2P spreading factor as an integer.

UIFLOW2:


LoRaWAN_X.set_p2p_spreading_factor(spreading_factor)

Sets the P2P spreading factor.

Parameters:

spreading_factor (int) – The spreading factor to set for P2P communication. The default value is 7, and the range is 5 to 12.

Returns:

The result of the AT command execution.

UIFLOW2:


LoRaWAN_X.get_p2p_bandwidth()

Retrieves the current P2P bandwidth.

Returns:

The current P2P bandwidth as an integer.

UIFLOW2:


LoRaWAN_X.set_p2p_bandwidth(bandwidth)
Parameters:

bandwidth (int)

Returns:

The result of the AT command execution.

UIFLOW2:



LoRaWAN_X.get_p2p_code_rate()

Retrieves the current P2P code rate.

Returns:

The current P2P code rate as an integer.

UIFLOW2:


LoRaWAN_X.set_p2p_code_rate(code_rate)

Sets the P2P code rate.

Parameters:

code_rate (int) – The code rate to set for P2P communication. Default is 0, range is 0 to 3. 0 = 4/5, 1 = 4/6, 2 = 4/7, 3 = 4/8.

Returns:

The result of the AT command execution.

UIFLOW2:


LoRaWAN_X.get_p2p_preamble_length()

Retrieves the current P2P preamble length.

Returns:

The current P2P preamble length as an integer.

UIFLOW2:


LoRaWAN_X.set_p2p_preamble_length(length)

Sets the P2P preamble length.

Parameters:

length (int) – The preamble length to set for P2P communication. Default is 8, range is 5 to 65535.

Returns:

The result of the AT command execution.

UIFLOW2:


LoRaWAN_X.get_p2p_tx_power()

Retrieves the current P2P transmission power.

Returns:

The current P2P transmission power as an integer.

UIFLOW2:


LoRaWAN_X.set_p2p_tx_power(power)

Sets the P2P transmission power.

Parameters:

power (int) – The transmission power to set for P2P communication. Default is 14 dBm, range is 5 to 22 dBm.

Returns:

The result of the AT command execution.

UIFLOW2:


LoRaWAN_X.get_p2p_fsk_bitrate()

Retrieves the current P2P FSK bitrate.

Returns:

The current P2P FSK bitrate as an integer.

UIFLOW2:


LoRaWAN_X.set_p2p_fsk_bitrate(bitrate)

Sets the P2P FSK bitrate.

Parameters:

bitrate (int) – The bitrate to set for P2P FSK communication. The range is 600 to 300000 b/s.

Returns:

The result of the AT command execution.

UIFLOW2:


LoRaWAN_X.get_p2p_fsk_frequency_deviation()

Retrieves the current P2P FSK frequency deviation.

Returns:

The current P2P FSK frequency deviation as an integer.

LoRaWAN_X.set_p2p_fsk_frequency_deviation(deviation)

Sets the P2P FSK frequency deviation.

Parameters:

deviation (int) – The frequency deviation to set for P2P FSK communication. The range is 600 to 200000 Hz.

Returns:

The result of the AT command execution.

LoRaWAN_X.send_p2p_data(payload, timeout, to_hex=False)

Sends P2P data with a given payload.

Parameters:
  • payload (str) – The payload to send, 2 to 500 characters in length, must be an even number of characters composed of 0-9, a-f, A-F, representing 1 to 256 hexadecimal values.

  • timeout (int) – The timeout for the data transmission, default is 1000 ms.

  • to_hex (bool) – A boolean indicating whether to convert the payload to hexadecimal format.

Returns:

True if the data was sent successfully (“TXFSK DONE” or “TXP2P DONE”), False otherwise.

UIFLOW2:



LoRaWAN_X.get_p2p_channel_activity()

Get the current channel activity status in P2P mode.

Returns:

The channel activity status as an integer (0 or 1).

LoRaWAN_X.set_p2p_channel_activity(state)

Enable or disable channel activity in P2P mode.

Parameters:

state (bool) – 0 to disable, 1 to enable channel activity.

Returns:

The response from the command execution.

LoRaWAN_X.get_p2p_receive_data(timeout=500, to_str=False)
Parameters:
  • timeout (int) – Timeout for listening to P2P LoRa data packets. Valid values are 1~65535, with special cases for continuous listening and no timeout.

  • to_str (bool) – A boolean indicating whether to convert the payload to a string.

Returns:

A tuple (RSSI, SNR, Payload) if data is received; False if no data is received.

UIFLOW2:


LoRaWAN_X.get_p2p_encryption_state()

Get the current encryption state in P2P mode.

Returns:

The encryption state as an integer (0 or 1).

LoRaWAN_X.set_p2p_encryption_state(state)

Enable or disable encryption in P2P mode.

Parameters:

state (bool) – 0 to disable, 1 to enable encryption.

Returns:

The response from the command execution.

LoRaWAN_X.get_p2p_encryption_key()

Get the current encryption key in P2P mode.

Returns:

The encryption key as a string.

LoRaWAN_X.set_p2p_encryption_key(key)

Set the encryption key in P2P mode.

Parameters:

key (str) – The encryption key, represented as a 16-character hexadecimal string.

Returns:

The response from the command execution.

LoRaWAN_X.get_p2p_crypt_state()

Get the current cryptographic state in P2P mode (not supported on RAK3172).

Returns:

The cryptographic state as an integer (0 or 1).

LoRaWAN_X.set_p2p_crypt_state(state)

Enable or disable cryptographic state in P2P mode (not supported on RAK3172).

Parameters:

state (bool) – 0 to disable, 1 to enable cryptographic state.

Returns:

The response from the command execution.

LoRaWAN_X.get_p2p_crypt_key()

Get the cryptographic key in P2P mode (not supported on RAK3172).

Returns:

The cryptographic key as a string.

LoRaWAN_X.set_p2p_crypt_key(key)

Set the cryptographic key in P2P mode (not supported on RAK3172).

Parameters:

key – The cryptographic key, represented as an 8-character hexadecimal string.

Returns:

The response from the command execution.

LoRaWAN_X.get_p2p_encryption_iv()

Get the encryption IV in P2P mode.

Returns:

The encryption IV as a string.

LoRaWAN_X.set_p2p_encryption_iv(iv)

Set the encryption IV in P2P mode.

Parameters:

iv (str) – The encryption IV, represented as an 8-character hexadecimal string.

Returns:

The response from the command execution.

LoRaWAN_X.get_p2p_parameters()

Get the current P2P parameters.

Returns:

The current P2P parameters as a string.

LoRaWAN_X.set_p2p_parameters(frequency, spreading_factor, bandwidth, code_rate, preamble_length, tx_power)

Set P2P LoRa parameters, including frequency, spreading factor, bandwidth, code rate, preamble length, and transmit power.

Parameters:
  • frequency (int) – The frequency to use for communication, range 150000000-960000000.

  • spreading_factor (int) – The spreading factor, which can be {6, 7, 8, 9, 10, 11, 12}.

  • bandwidth (int) – The bandwidth, which can be {125, 250, 500}.

  • code_rate (int) – The code rate, where possible values are {4/5=0, 4/6=1, 4/7=2, 4/8=3}.

  • preamble_length (int) – The length of the preamble, which can be from 2 to 65535.

  • tx_power (int) – The transmit power, which can be in the range {5-22}.

Returns:

The response from the command execution.

LoRaWAN_X.get_p2p_iq_inversion()

Get the current IQ inversion state in P2P mode.

Returns:

The IQ inversion state as an integer (0 or 1).

LoRaWAN_X.set_p2p_iq_inversion(state)

Enable or disable IQ inversion in P2P mode.

Parameters:

state (bool) – 0 to disable, 1 to enable IQ inversion.

Returns:

The response from the command execution.

LoRaWAN_X.get_p2p_sync_word()

Get the current sync word in P2P mode.

Returns:

The sync word as a string.

UIFLOW2:


LoRaWAN_X.set_p2p_sync_word(sync_word)

Set the sync word in P2P mode.

Parameters:

sync_word (int) – The sync word value, which should be in the range of 0x0000 to 0xFFFF.

Returns:

The response from the command execution.

UIFLOW2:


LoRaWAN_X.get_p2p_symbol_timeout()

Get the current symbol timeout in P2P mode.

Returns:

The symbol timeout as an integer.

LoRaWAN_X.set_p2p_symbol_timeout(timeout)

Set the symbol timeout in P2P mode.

Parameters:

timeout (bool) – The timeout value, which should be in the range of 0-248.

Returns:

The response from the command execution.

LoRaWAN_X.get_p2p_fix_length_payload_state()

Get the current fixed length payload state in P2P mode.

Returns:

The fixed length payload state as an integer (0 or 1).

LoRaWAN_X.set_p2p_fix_length_payload_state(state)

Enable or disable fixed length payload in P2P mode.

Parameters:

state (bool) – 0 to disable, 1 to enable fixed length payload.

Returns:

The response from the command execution.
