ASR Unit

Unit ASR is an AI offline speech recognition unit, featuring the built-in AI smart offline speech module CI-03T. This unit offers powerful functions such as speech recognition, voiceprint recognition, speech enhancement, and speech detection. It supports AEC (Acoustic Echo Cancellation) to effectively eliminate echoes and noise interference, improving the accuracy of speech recognition. Additionally, it supports mid-speech interruption, allowing for flexible interruption during the recognition process and quick response to new commands. The product is pre-configured with wake-up words and feedback commands at the factory. The device uses UART serial communication for data transmission and also supports waking up the device via UART or voice keywords. This unit supports user customization of the wake-up recognition word and can recognize up to 300 command words. It is equipped with a microphone for clear audio capture and includes a speaker for high-quality audio feedback. This product is widely used in AI assistants, smart homes, security monitoring, automotive systems, robotics, smart hardware, healthcare, and other fields, making it an ideal choice for realizing smart voice interactions.

Support the following products:

UiFlow2 Example

ASR Example

Open the asr_cores3_example.m5f2 project in UiFlow2.

This example shows how to use Unit ASR to get the current command word, command number, and trigger an event when you say hello to do something you want to do.

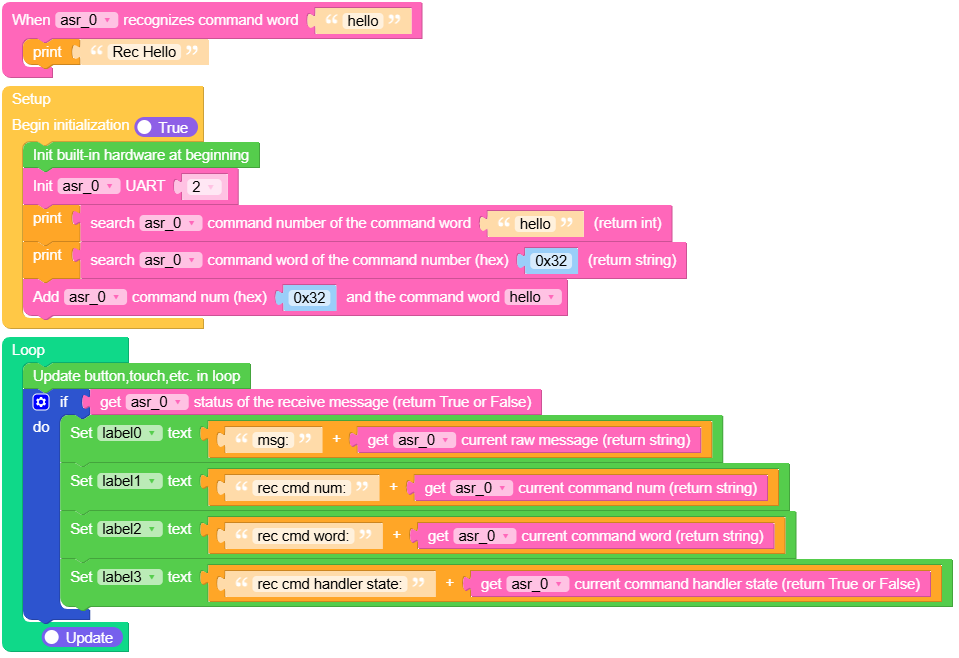

UiFlow2 Code Block:

Example output:

None

MicroPython Example

ASR Example

This example shows how to use Unit ASR to get the current command word, command number, and trigger an event when you say hello to do something you want to do.

MicroPython Code Block:

# SPDX-FileCopyrightText: 2024 M5Stack Technology CO LTD
#
# SPDX-License-Identifier: MIT

import os, sys, io
import M5
from M5 import *
from unit import ASRUnit


title0 = None
label0 = None
label1 = None
label2 = None
label3 = None
asr_0 = None


def asr_0_hello_event(args):
    global title0, label0, label1, label2, label3, asr_0
    print("Rec Hello")


def setup():
    global title0, label0, label1, label2, label3, asr_0

    M5.begin()
    Widgets.fillScreen(0x222222)
    title0 = Widgets.Title(
        "UnitASR M5CoreSe Example", 3, 0xFFFFFF, 0x0000FF, Widgets.FONTS.DejaVu18
    )
    label0 = Widgets.Label("msg:", 0, 51, 1.0, 0xFFFFFF, 0x222222, Widgets.FONTS.DejaVu18)
    label1 = Widgets.Label("rec cmd num:", 0, 93, 1.0, 0xFFFFFF, 0x222222, Widgets.FONTS.DejaVu18)
    label2 = Widgets.Label(
        "rec cmd word:", 0, 134, 1.0, 0xFFFFFF, 0x222222, Widgets.FONTS.DejaVu18
    )
    label3 = Widgets.Label(
        "rec cmd handler state:", 0, 178, 1.0, 0xFFFFFF, 0x222222, Widgets.FONTS.DejaVu18
    )

    asr_0 = ASRUnit(2, port=(1, 2))
    print(asr_0.search_command_num("hello"))
    print(asr_0.search_command_word(0x32))
    asr_0.add_command_word(0x32, "hello", asr_0_hello_event)


def loop():
    global title0, label0, label1, label2, label3, asr_0
    M5.update()
    if asr_0.get_received_status():
        label0.setText(str((str("msg:") + str((asr_0.get_current_raw_message())))))
        label1.setText(str((str("rec cmd num:") + str((asr_0.get_current_command_num())))))
        label2.setText(str((str("rec cmd word:") + str((asr_0.get_current_command_word())))))
        label3.setText(str((str("rec cmd handler state:") + str((asr_0.get_command_handler())))))


if __name__ == "__main__":
    try:
        setup()
        while True:
            loop()
    except (Exception, KeyboardInterrupt) as e:
        try:
            from utility import print_error_msg

            print_error_msg(e)
        except ImportError:
            print("please update to latest firmware")

Example output:

None

API

ASRUnit

class unit.asr.ASRUnit(id=1, port=None, verbose=False)

Bases: object

Voice recognition hardware module.

Parameters:

id (int) – UART port ID for communication. Default is 1.
port (list|tuple) – Tuple containing TX and RX pin numbers.
verbose (bool)

UiFlow2 Code Block:

MicroPython Code Block:

from unit import ASRUnit

# Initialize with UART1, TX on pin 2, RX on pin 1
asr = ASRUnit(id=1, port=(1, 2))

get_received_status()

Get message reception status.

Returns:: True if a message is received, False otherwise.
Return type:: bool

UiFlow2 Code Block:

MicroPython Code Block:

asr.get_received_status()

send_message(command_num)

Send command via UART.

Parameters:: command_num (int) – Command number to send (0-255)
Return type:: None

UiFlow2 Code Block:

MicroPython Code Block:

asr.send_message(0x30)

get_current_raw_message()

Get the raw message received in hexadecimal format.

Returns:: The raw message as a string in hexadecimal format.
Return type:: str

UiFlow2 Code Block:

MicroPython Code Block:

asr.get_current_raw_message()

get_current_command_word()

Get the command word corresponding to the current command number.

Returns:: The command word as a string.
Return type:: str

UiFlow2 Code Block:

MicroPython Code Block:

asr.get_current_command_word()

get_current_command_num()

Get the current command number.

Returns:: The current command number as a string.
Return type:: str

UiFlow2 Code Block:

MicroPython Code Block:

asr.get_current_command_num()

get_command_handler()

Check if the current command has an associated handler.

Returns:: True if the command has an associated handler, False otherwise.
Return type:: bool

UiFlow2 Code Block:

MicroPython Code Block:

asr.get_command_handler()

add_command_word(command_num, command_word, event_handler=None)

Register custom command and handler.

Parameters:

command_num (int) – Command number (0-255)
command_word (str) – Voice command text
event_handler (callable) – Handler function

Return type:

None

UiFlow2 Code Block:

MicroPython Code Block:

def custom_handler(unit):
    print("Custom command detected!")

asr.add_command_word(0x50, "custom command", custom_handler)

remove_command_word(command_word)

Remove a command word from the command list by its word.

Parameters:: command_word (str) – Command word to remove
Return type:: None

UiFlow2 Code Block:

MicroPython Code Block:

asr.remove_command_word("custom command")

search_command_num(command_word)

Search for the command number associated with a command word.

Parameters:: command_word (str) – Command word to search for
Returns:: The command number if found, otherwise -1
Return type:: int

UiFlow2 Code Block:

MicroPython Code Block:

asr.search_command_num("custom command")

search_command_word(command_num)

Search for the command word associated with a command number.

Parameters:: command_num (int) – Command number to search for
Returns:: The command word if found, otherwise “Unknown command word”
Return type:: str

UiFlow2 Code Block:

MicroPython Code Block:

asr.search_command_word(0x50)

get_command_list()

Get the list of all commands and their associated handlers.

Returns:: A dictionary of command numbers and their corresponding command words and handlers.
Return type:: dict

UiFlow2 Code Block:

MicroPython Code Block:

asr.get_command_list()

check_tick_callback()

Check if a handler is defined for the current command and schedule its execution.

Returns:: The handler if defined, otherwise None
Return type:: None

MicroPython Code Block:

asr.check_tick_callback()
