PaHub Unit

PaHub Unit is an I2C hub used to connect multiple I2C Units to one host I2C bus.

Support the following products:

PaHubUnit

Usage

../_images/uiflow2_unit_entry.png
../_images/uiflow2_usage.png

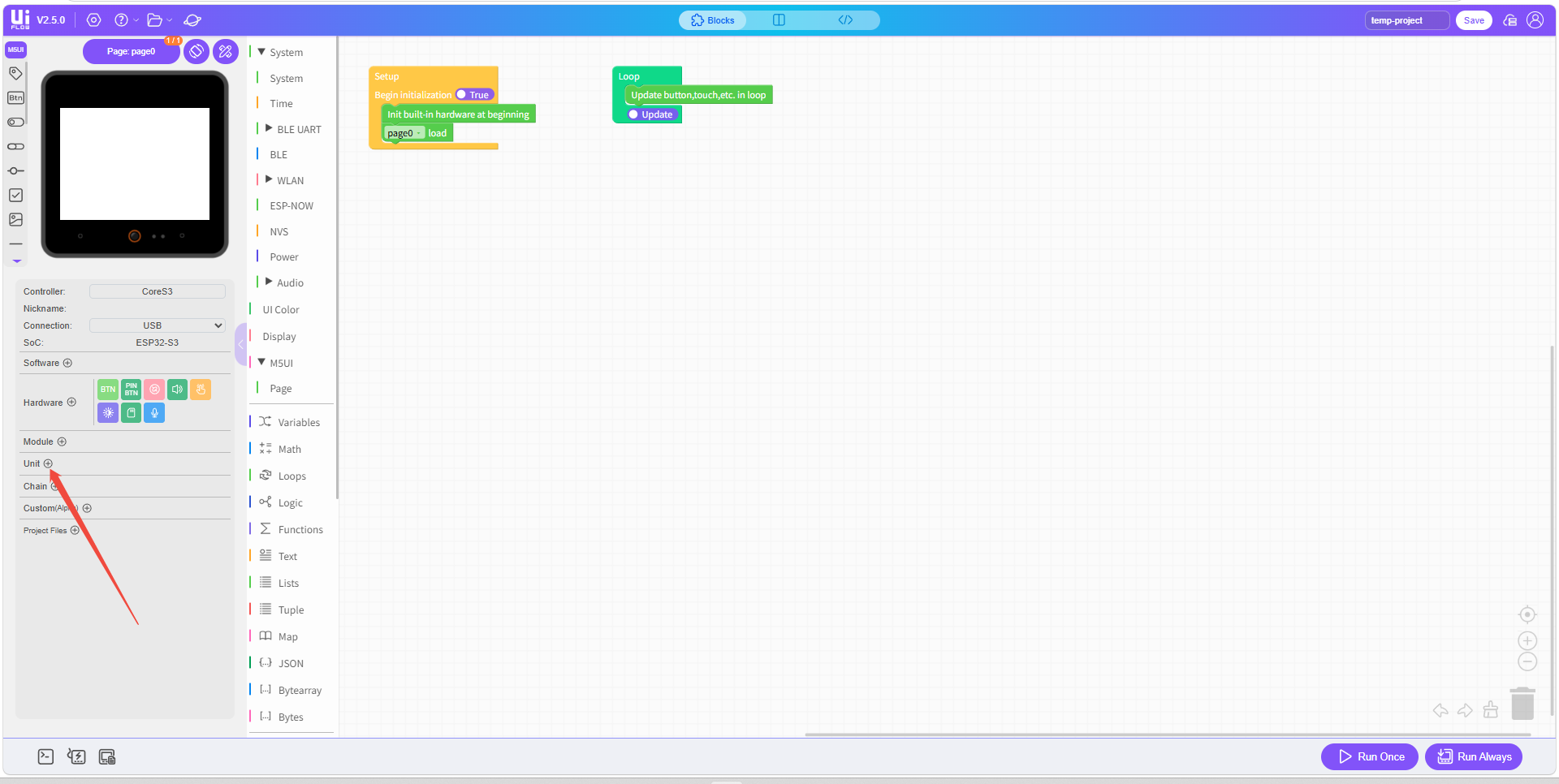

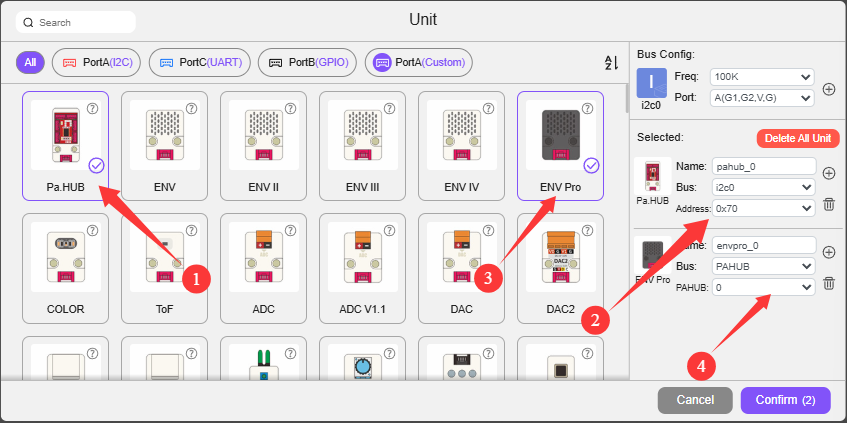

  1. Add Unit PaHub.

  2. Set the PaHub address. The address must match the actual DIP switch setting on the PaHub hardware.

  3. Add the other I2C Unit connected to Unit PaHub.

  4. In the connected Unit configuration, select Bus: PAHUB, then select the PaHub port/channel number that the Unit is connected to.

The default PaHub address is 0x70. If the DIP switch changes the hardware address, update the address setting in UiFlow2 to the same value.
