Stamp UWB

Stamp UWB is a QM33120 ultra-wideband transceiver. The StampUWB class selects the pin mapping for the current Stamp host and provides the PHY, frame, status, and timestamp operations. The PHY channel is fixed to channel 9, and only one active StampUWB instance is supported.

Support the following products:

Stamp UWB

Supported hosts:

  • StampS3Mini

  • StampC6

  • StampC5

DS-TWR Ranging Principle

The simple examples use a three-message double-sided two-way ranging exchange:

  1. The Tag transmits a Poll frame and records the Poll TX timestamp T1. The Anchor receives it and records the Poll RX timestamp T2.

  2. The Anchor transmits a Response frame and records the Response TX timestamp T3. The Tag receives it and records the Response RX timestamp T4.

  3. The Tag schedules a delayed Final frame, records its TX timestamp T5, and includes T1, T4, and T5 in the frame. The Anchor receives the Final frame and records timestamp T6.

The examples use the following compact frame format. Multi-byte values are little-endian, and the sequence number associates the three frames:

  • Poll: [0x01, sequence]

  • Response: [0x02, sequence]

  • Final: [0x03, sequence, T1, T4, T5], where each timestamp occupies the low 32 bits of a device timestamp

The Anchor calculates the time of flight while handling 32-bit timestamp wraparound:

round_a = T4 - T1
round_b = T6 - T3
delay_a = T5 - T4
delay_b = T3 - T2
tof = (round_a * round_b - delay_a * delay_b) \
      / (round_a + round_b + delay_a + delay_b)
distance = abs(tof * DWT_TIME_UNITS * 299702547)

DWT_TIME_UNITS is 1 / (499200000 * 128) seconds. The Anchor prints the calculated distance locally. This simplified protocol does not send the distance back to the Tag.

UiFlow2 Example

Simple DS-TWR Anchor

Open the stampc5_uwb_simple_anchor.m5f2 project in UiFlow2.

The anchor receives Poll and Final frames, calculates the distance locally, and prints the non-negative ranging result.

UiFlow2 Code Block:

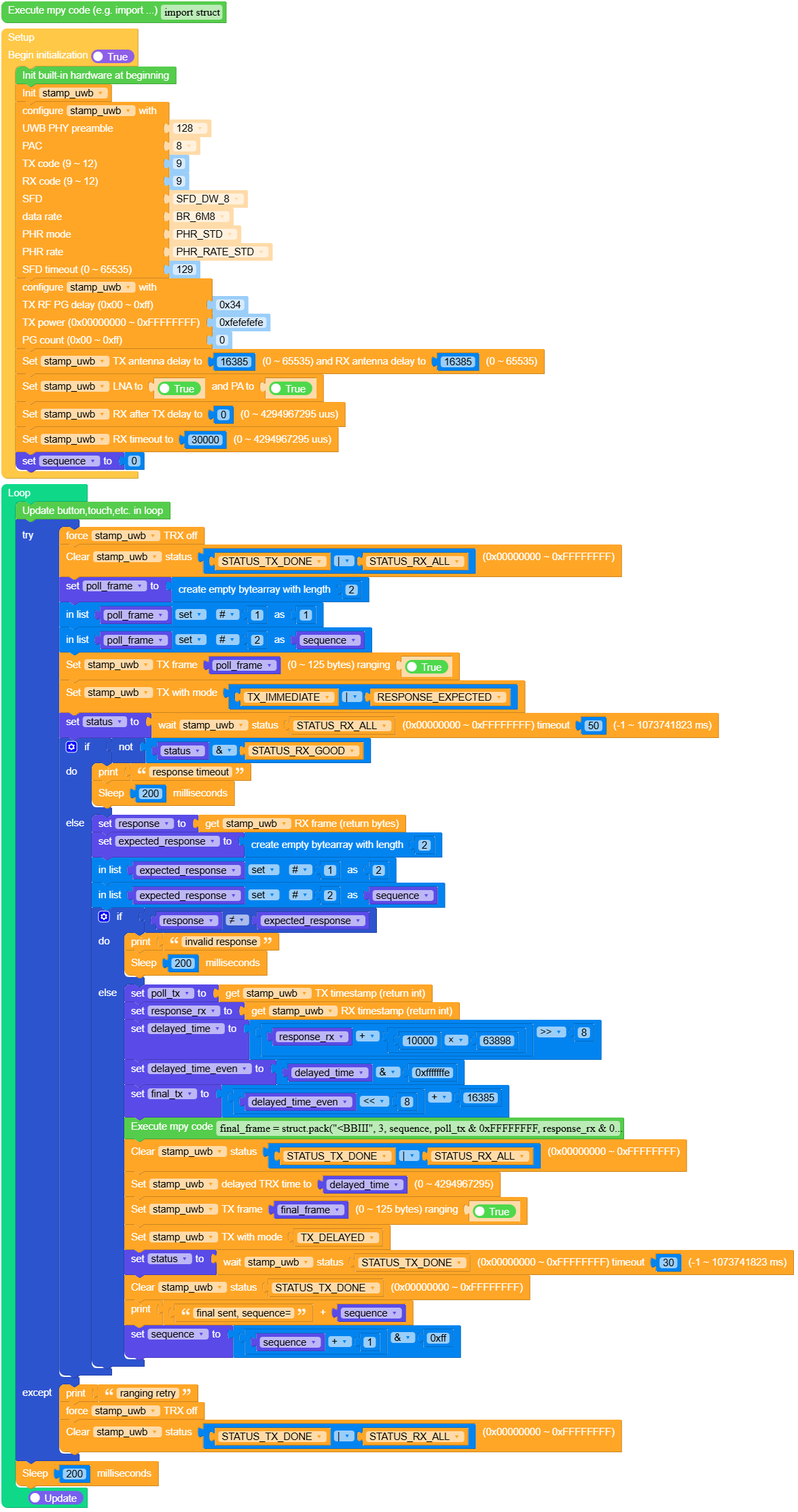

Simple DS-TWR Tag

Open the stampc5_uwb_simple_tag.m5f2 project in UiFlow2.

The tag sends Poll, waits for Response, and sends a delayed Final frame. This minimal protocol does not return the calculated distance to the tag.

UiFlow2 Code Block:


MicroPython Example

Simple DS-TWR Anchor

The anchor receives Poll and Final frames, calculates the distance locally, and prints the non-negative ranging result.

MicroPython Code Block:

  1# SPDX-FileCopyrightText: 2025 M5Stack Technology CO LTD
  2#
  3# SPDX-License-Identifier: MIT
  4
  5import os, sys, io
  6import M5
  7from M5 import *
  8import uwb
  9from stamp import StampUWB
 10import time
 11import struct
 12import math
 13
 14
 15stamp_uwb = None
 16status = None
 17sequence = None
 18poll = None
 19poll_rx = None
 20response_frame = None
 21final_frame = None
 22response_tx = None
 23final_rx = None
 24round_a = None
 25round_b = None
 26delay_a = None
 27response_rx = None
 28poll_tx = None
 29delay_b = None
 30denominator = None
 31final_tx = None
 32tof_dtu = None
 33distance = None
 34display_distance = None
 35
 36
 37def setup():
 38    global \
 39        stamp_uwb, \
 40        status, \
 41        sequence, \
 42        poll, \
 43        poll_rx, \
 44        response_frame, \
 45        final_frame, \
 46        response_tx, \
 47        final_rx, \
 48        round_a, \
 49        round_b, \
 50        delay_a, \
 51        response_rx, \
 52        poll_tx, \
 53        delay_b, \
 54        denominator, \
 55        final_tx, \
 56        tof_dtu, \
 57        distance, \
 58        display_distance
 59
 60    M5.begin()
 61    stamp_uwb = StampUWB()
 62    stamp_uwb.configure(
 63        preamble_length=128,
 64        pac=8,
 65        tx_code=9,
 66        rx_code=9,
 67        sfd_type=uwb.SFD_DW_8,
 68        data_rate=uwb.BR_6M8,
 69        phr_mode=uwb.PHR_STD,
 70        phr_rate=uwb.PHR_RATE_STD,
 71        sfd_timeout=129,
 72    )
 73    stamp_uwb.configure_tx_rf(pg_delay=0x34, tx_power=0xFEFEFEFE, pg_count=0)
 74    stamp_uwb.set_antenna_delay(tx=16385, rx=16385)
 75    stamp_uwb.set_lna_pa(lna=True, pa=True)
 76    stamp_uwb.set_rx_timeout(30000)
 77    sequence = 0
 78
 79
 80def loop():
 81    global \
 82        stamp_uwb, \
 83        status, \
 84        sequence, \
 85        poll, \
 86        poll_rx, \
 87        response_frame, \
 88        final_frame, \
 89        response_tx, \
 90        final_rx, \
 91        round_a, \
 92        round_b, \
 93        delay_a, \
 94        response_rx, \
 95        poll_tx, \
 96        delay_b, \
 97        denominator, \
 98        final_tx, \
 99        tof_dtu, \
100        distance, \
101        display_distance
102    M5.update()
103    try:
104        stamp_uwb.force_trx_off()
105        stamp_uwb.clear_status(uwb.STATUS_TX_DONE | uwb.STATUS_RX_ALL)
106        stamp_uwb.rx_enable(uwb.RX_IMMEDIATE)
107        status = stamp_uwb.wait_status(uwb.STATUS_RX_ALL, 50)
108        if status & uwb.STATUS_RX_GOOD:
109            poll = stamp_uwb.read_rx_frame()
110            if len(poll) == 2 and poll[0] == 1:
111                sequence = poll[1]
112                poll_rx = stamp_uwb.rx_timestamp() & 0xFFFFFFFF
113                stamp_uwb.clear_status(uwb.STATUS_TX_DONE | uwb.STATUS_RX_ALL)
114                stamp_uwb.set_rx_after_tx_delay(0)
115                response_frame = bytearray(2)
116                response_frame[0] = 2
117                response_frame[1] = sequence
118                stamp_uwb.write_tx_frame(response_frame, True)
119                stamp_uwb.start_tx(uwb.TX_IMMEDIATE | uwb.RESPONSE_EXPECTED)
120                status = stamp_uwb.wait_status(uwb.STATUS_RX_ALL, 50)
121                if status & uwb.STATUS_RX_GOOD:
122                    final_frame = stamp_uwb.read_rx_frame()
123                    if (
124                        len(final_frame) == 14
125                        and final_frame[0] == 3
126                        and final_frame[1] == sequence
127                    ):
128                        response_tx = stamp_uwb.tx_timestamp() & 0xFFFFFFFF
129                        final_rx = stamp_uwb.rx_timestamp() & 0xFFFFFFFF
130                        poll_tx, response_rx, final_tx = struct.unpack_from("<III", final_frame, 2)
131                        round_a = response_rx - poll_tx & 0xFFFFFFFF
132                        round_b = final_rx - response_tx & 0xFFFFFFFF
133                        delay_a = final_tx - response_rx & 0xFFFFFFFF
134                        delay_b = response_tx - poll_rx & 0xFFFFFFFF
135                        denominator = (round_a + round_b) + (delay_a + delay_b)
136                        if denominator != 0:
137                            tof_dtu = (round_a * round_b - delay_a * delay_b) / denominator
138                            distance = math.fabs((tof_dtu * (1 / (499200000 * 128))) * 299702547)
139                            display_distance = round(distance * 100) / 100
140                            if distance >= 0 and distance <= 100:
141                                print(
142                                    (
143                                        str(
144                                            (
145                                                str(
146                                                    (
147                                                        str((str("sequence=") + str(sequence)))
148                                                        + str(" distance=")
149                                                    )
150                                                )
151                                                + str(display_distance)
152                                            )
153                                        )
154                                        + str(" m")
155                                    )
156                                )
157                            else:
158                                print((str("invalid distance: ") + str(distance)))
159                    else:
160                        print("invalid final")
161                else:
162                    print("final timeout")
163    except:
164        print("ranging retry")
165        stamp_uwb.force_trx_off()
166        stamp_uwb.clear_status(uwb.STATUS_TX_DONE | uwb.STATUS_RX_ALL)
167
168    time.sleep_ms(10)
169
170
171if __name__ == "__main__":
172    try:
173        setup()
174        while True:
175            loop()
176    except (Exception, KeyboardInterrupt) as e:
177        try:
178            from utility import print_error_msg
179
180            print_error_msg(e)
181        except ImportError:
182            print("please update to latest firmware")

Simple DS-TWR Tag

The tag sends Poll, waits for Response, and sends a delayed Final frame. This minimal protocol does not return the calculated distance to the tag.

MicroPython Code Block:

  1# SPDX-FileCopyrightText: 2025 M5Stack Technology CO LTD
  2#
  3# SPDX-License-Identifier: MIT
  4
  5import os, sys, io
  6import M5
  7from M5 import *
  8import uwb
  9from stamp import StampUWB
 10import time
 11import struct
 12
 13
 14stamp_uwb = None
 15poll_frame = None
 16sequence = None
 17status = None
 18response = None
 19expected_response = None
 20poll_tx = None
 21response_rx = None
 22delayed_time = None
 23delayed_time_even = None
 24final_tx = None
 25final_frame = None
 26
 27
 28def setup():
 29    global \
 30        stamp_uwb, \
 31        poll_frame, \
 32        sequence, \
 33        status, \
 34        response, \
 35        expected_response, \
 36        poll_tx, \
 37        response_rx, \
 38        delayed_time, \
 39        delayed_time_even, \
 40        final_tx, \
 41        final_frame
 42
 43    M5.begin()
 44    stamp_uwb = StampUWB()
 45    stamp_uwb.configure(
 46        preamble_length=128,
 47        pac=8,
 48        tx_code=9,
 49        rx_code=9,
 50        sfd_type=uwb.SFD_DW_8,
 51        data_rate=uwb.BR_6M8,
 52        phr_mode=uwb.PHR_STD,
 53        phr_rate=uwb.PHR_RATE_STD,
 54        sfd_timeout=129,
 55    )
 56    stamp_uwb.configure_tx_rf(pg_delay=0x34, tx_power=0xFEFEFEFE, pg_count=0)
 57    stamp_uwb.set_antenna_delay(tx=16385, rx=16385)
 58    stamp_uwb.set_lna_pa(lna=True, pa=True)
 59    stamp_uwb.set_rx_after_tx_delay(0)
 60    stamp_uwb.set_rx_timeout(30000)
 61    sequence = 0
 62
 63
 64def loop():
 65    global \
 66        stamp_uwb, \
 67        poll_frame, \
 68        sequence, \
 69        status, \
 70        response, \
 71        expected_response, \
 72        poll_tx, \
 73        response_rx, \
 74        delayed_time, \
 75        delayed_time_even, \
 76        final_tx, \
 77        final_frame
 78    M5.update()
 79    try:
 80        stamp_uwb.force_trx_off()
 81        stamp_uwb.clear_status(uwb.STATUS_TX_DONE | uwb.STATUS_RX_ALL)
 82        poll_frame = bytearray(2)
 83        poll_frame[0] = 1
 84        poll_frame[1] = sequence
 85        stamp_uwb.write_tx_frame(poll_frame, True)
 86        stamp_uwb.start_tx(uwb.TX_IMMEDIATE | uwb.RESPONSE_EXPECTED)
 87        status = stamp_uwb.wait_status(uwb.STATUS_RX_ALL, 50)
 88        if not (status & uwb.STATUS_RX_GOOD):
 89            print("response timeout")
 90            time.sleep_ms(200)
 91        else:
 92            response = stamp_uwb.read_rx_frame()
 93            expected_response = bytearray(2)
 94            expected_response[0] = 2
 95            expected_response[1] = sequence
 96            if response != expected_response:
 97                print("invalid response")
 98                time.sleep_ms(200)
 99            else:
100                poll_tx = stamp_uwb.tx_timestamp()
101                response_rx = stamp_uwb.rx_timestamp()
102                delayed_time = response_rx + 10000 * 63898 >> 8
103                delayed_time_even = delayed_time & 0xFFFFFFFE
104                final_tx = (delayed_time_even << 8) + 16385
105                final_frame = struct.pack(
106                    "<BBIII",
107                    3,
108                    sequence,
109                    poll_tx & 0xFFFFFFFF,
110                    response_rx & 0xFFFFFFFF,
111                    final_tx & 0xFFFFFFFF,
112                )
113                stamp_uwb.clear_status(uwb.STATUS_TX_DONE | uwb.STATUS_RX_ALL)
114                stamp_uwb.set_delayed_trx_time(delayed_time)
115                stamp_uwb.write_tx_frame(final_frame, True)
116                stamp_uwb.start_tx(uwb.TX_DELAYED)
117                status = stamp_uwb.wait_status(uwb.STATUS_TX_DONE, 30)
118                stamp_uwb.clear_status(uwb.STATUS_TX_DONE)
119                print((str("final sent, sequence=") + str(sequence)))
120                sequence = sequence + 1 & 0xFF
121    except:
122        print("ranging retry")
123        stamp_uwb.force_trx_off()
124        stamp_uwb.clear_status(uwb.STATUS_TX_DONE | uwb.STATUS_RX_ALL)
125
126    time.sleep_ms(200)
127
128
129if __name__ == "__main__":
130    try:
131        setup()
132        while True:
133            loop()
134    except (Exception, KeyboardInterrupt) as e:
135        try:
136            from utility import print_error_msg
137
138            print_error_msg(e)
139        except ImportError:
140            print("please update to latest firmware")

API

class StampUWB

Constructors

class StampUWB

Create a Stamp UWB object using the pin mapping of the current Stamp host. Only one active instance is supported.

Raises:

OSError – If another instance is active, SPI initialization fails, or the UWB device cannot be probed or initialized.

UiFlow2 Code Block:


MicroPython Code Block:

from stamp import StampUWB

stamp_uwb_0 = StampUWB()

Constants

The option block supplies the PHY, TX/RX mode, and status-mask constants used by the methods below.

UiFlow2 Code Block:


uwb.SFD_DW_8

Decawave 8-symbol SFD used by StampUWB.configure().

uwb.BR_6M8

6.8 Mbit/s PHY data rate used by StampUWB.configure().

uwb.PHR_STD

Standard PHY header mode used by StampUWB.configure().

uwb.PHR_RATE_STD

Standard PHY header rate used by StampUWB.configure().

uwb.TX_IMMEDIATE

Start transmission immediately.

uwb.TX_DELAYED

Start transmission at the time set by StampUWB.set_delayed_trx_time().

uwb.RESPONSE_EXPECTED

Automatically enable the receiver after transmission. Combine this flag with a TX start mode.

uwb.RX_IMMEDIATE

Enable the receiver immediately.

uwb.RX_DELAYED

Enable the receiver at the configured delayed RX time.

uwb.IDLE_ON_DELAY_ERROR

Return to idle if a delayed RX operation is already too late.

uwb.STATUS_TX_DONE

Transmission-complete status bit.

uwb.STATUS_RX_GOOD

Good-frame-received status bit.

uwb.STATUS_RX_TIMEOUT

Combined receive-timeout status mask.

uwb.STATUS_RX_ERROR

Combined receive-error status mask.

uwb.STATUS_RX_ALL

Combined mask containing good-frame, receive-timeout, and receive-error status bits.

Methods

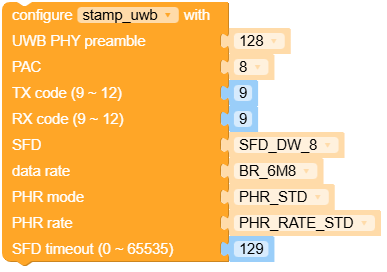

StampUWB.configure(preamble_length=128, pac=8, tx_code=9, rx_code=9, sfd_type=uwb.SFD_DW_8, data_rate=uwb.BR_6M8, phr_mode=uwb.PHR_STD, phr_rate=uwb.PHR_RATE_STD, sfd_timeout=129)

Configure the channel 9 UWB PHY.

Parameters:

  • preamble_length (int) – Preamble length in symbols. Allowed values are 32, 64, 72, 128, 256, 512, 1024, 1536, 2048, and 4096. Default is 128.

  • pac (int) – Preamble acquisition chunk size. Allowed values are 4, 8, 16, and 32. Default is 8.

  • tx_code (int) – TX preamble code, range 9 to 12. Default is 9.

  • rx_code (int) – RX preamble code, range 9 to 12. Default is 9.

  • sfd_type (int) – SFD type. Use uwb.SFD_DW_8.

  • data_rate (int) – PHY data rate. Use uwb.BR_6M8.

  • phr_mode (int) – PHR mode. Use uwb.PHR_STD.

  • phr_rate (int) – PHR rate. Use uwb.PHR_RATE_STD.

  • sfd_timeout (int) – SFD timeout in symbols, range 0 to 65535. Default is 129.

UiFlow2 Code Block:


MicroPython Code Block:

import uwb

stamp_uwb_0.configure(
    preamble_length=128,
    pac=8,
    tx_code=9,
    rx_code=9,
    sfd_type=uwb.SFD_DW_8,
    data_rate=uwb.BR_6M8,
    phr_mode=uwb.PHR_STD,
    phr_rate=uwb.PHR_RATE_STD,
    sfd_timeout=129,
)

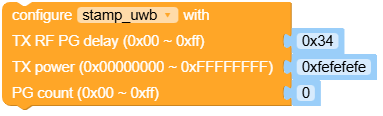

StampUWB.configure_tx_rf(pg_delay=0x34, tx_power=0xFEFEFEFE, pg_count=0)

Configure the channel 9 transmitter RF settings.

Parameters:

  • pg_delay (int) – Pulse generator delay, range 0x00 to 0xFF. Default is 0x34.

  • tx_power (int) – 32-bit TX power value, range 0x00000000 to 0xFFFFFFFF. Default is 0xFEFEFEFE.

  • pg_count (int) – Pulse generator count, range 0x00 to 0xFF. Default is 0.

UiFlow2 Code Block:


MicroPython Code Block:

stamp_uwb_0.configure_tx_rf(0x34, 0xFEFEFEFE, 0)
StampUWB.set_antenna_delay(tx=16385, rx=16385)

Set the TX and RX antenna delays.

Parameters:

  • tx (int) – TX antenna delay in device time units, range 0 to 65535. Default is 16385.

  • rx (int) – RX antenna delay in device time units, range 0 to 65535. Default is 16385.

UiFlow2 Code Block:


MicroPython Code Block:

stamp_uwb_0.set_antenna_delay(tx=16385, rx=16385)
StampUWB.set_lna_pa(lna=True, pa=True)

Enable or disable the low-noise amplifier and power amplifier controls.

Parameters:

  • lna (bool) – Enable the LNA. Default is True.

  • pa (bool) – Enable the PA. Default is True.

UiFlow2 Code Block:


MicroPython Code Block:

stamp_uwb_0.set_lna_pa(lna=True, pa=True)
StampUWB.set_rx_after_tx_delay(delay_uus=0)

Set the delay from TX completion to automatic RX enable.

Parameters:

delay_uus (int) – Delay in UWB microseconds, range 0 to 4294967295. Default is 0.

UiFlow2 Code Block:


MicroPython Code Block:

stamp_uwb_0.set_rx_after_tx_delay(0)
StampUWB.set_rx_timeout(timeout_uus=30000)

Set the RX frame timeout. A value of 0 disables the timeout.

Parameters:

timeout_uus (int) – Timeout in UWB microseconds, range 0 to 4294967295. Default is 30000.

UiFlow2 Code Block:


MicroPython Code Block:

stamp_uwb_0.set_rx_timeout(30000)
StampUWB.set_preamble_timeout(timeout=0)

Set the preamble detection timeout. A value of 0 disables the timeout.

Parameters:

timeout (int) – Timeout in PAC units, range 0 to 65535. Default is 0.

UiFlow2 Code Block:


MicroPython Code Block:

stamp_uwb_0.set_preamble_timeout(0)
StampUWB.write_tx_frame(data, ranging=True)

Write a payload to the TX buffer. Do not include the two-byte FCS.

Parameters:

  • data – Bytes-like payload, range 0 to 125 bytes.

  • ranging (bool) – Set the ranging bit in TX frame control. Default is True.

Raises:

  • ValueError – If the payload exceeds 125 bytes.

  • OSError – If the payload cannot be written to the TX buffer.

UiFlow2 Code Block:


MicroPython Code Block:

stamp_uwb_0.write_tx_frame(b"hello", ranging=True)
StampUWB.set_delayed_trx_time(device_time)

Set the delayed TX/RX device time.

Parameters:

device_time (int) – Low 32 bits of the 40-bit device timestamp shifted right by 8, range 0 to 4294967295.

UiFlow2 Code Block:


MicroPython Code Block:

delayed_time = (stamp_uwb_0.rx_timestamp() + 4500 * 63898) >> 8
stamp_uwb_0.set_delayed_trx_time(delayed_time)
StampUWB.start_tx(mode)

Start an immediate or delayed transmission.

Parameters:

mode (int) – TX mode composed from uwb.TX_IMMEDIATE or uwb.TX_DELAYED and optional uwb.RESPONSE_EXPECTED.

Raises:

OSError – If a delayed transmission time has already passed.

UiFlow2 Code Block:


MicroPython Code Block:

stamp_uwb_0.start_tx(uwb.TX_IMMEDIATE | uwb.RESPONSE_EXPECTED)
StampUWB.rx_enable(mode=uwb.RX_IMMEDIATE)

Enable the receiver.

Parameters:

mode (int) – Use uwb.RX_IMMEDIATE or uwb.RX_DELAYED. Delayed RX can be combined with uwb.IDLE_ON_DELAY_ERROR. Default is uwb.RX_IMMEDIATE.

Raises:

OSError – If the receiver cannot be enabled.

UiFlow2 Code Block:


MicroPython Code Block:

stamp_uwb_0.rx_enable(uwb.RX_IMMEDIATE)
StampUWB.wait_status(mask, timeout_ms=-1)

Wait until any requested system status bit is set.

Parameters:

  • mask (int) – Status mask composed from uwb.STATUS_* constants, range 0x00000000 to 0xFFFFFFFF.

  • timeout_ms (int) – Software timeout in milliseconds, range -1 to 1073741823. -1 waits indefinitely. Default is -1.

Returns:

Raw 32-bit system status value.

Return type:

int

Raises:

OSError – ETIMEDOUT if no requested status bit is set before the software timeout.

UiFlow2 Code Block:


MicroPython Code Block:

stamp_uwb_0.wait_status(uwb.STATUS_RX_ALL, 50)
StampUWB.read_status()

Read the low 32 bits of the system status register.

Returns:

Raw 32-bit system status value.

Return type:

int

UiFlow2 Code Block:


MicroPython Code Block:

stamp_uwb_0.read_status()
StampUWB.clear_status(mask)

Clear selected system status bits.

Parameters:

mask (int) – Status mask, range 0x00000000 to 0xFFFFFFFF.

UiFlow2 Code Block:


MicroPython Code Block:

stamp_uwb_0.clear_status(uwb.STATUS_TX_DONE)
StampUWB.force_trx_off()

Force the transmitter and receiver to the idle state.

UiFlow2 Code Block:


MicroPython Code Block:

stamp_uwb_0.force_trx_off()
StampUWB.frame_length()

Get the last received frame length including the two-byte FCS.

Returns:

Received frame length in bytes, range 2 to 127.

Return type:

int

UiFlow2 Code Block:


MicroPython Code Block:

stamp_uwb_0.frame_length()
StampUWB.read_rx_frame()

Read the last received payload without the two-byte FCS.

Returns:

Received payload, range 0 to 125 bytes.

Return type:

bytes

Raises:

OSError – If the received frame length is outside the valid range.

UiFlow2 Code Block:


MicroPython Code Block:

stamp_uwb_0.read_rx_frame()
StampUWB.tx_timestamp()

Read the last TX timestamp.

Returns:

Full 40-bit TX timestamp in device time units.

Return type:

int

UiFlow2 Code Block:


MicroPython Code Block:

stamp_uwb_0.tx_timestamp()
StampUWB.rx_timestamp()

Read the last RX timestamp.

Returns:

Full 40-bit RX timestamp in device time units.

Return type:

int

UiFlow2 Code Block:


MicroPython Code Block:

stamp_uwb_0.rx_timestamp()
StampUWB.system_timestamp()

Read the current UWB system timestamp.

Returns:

Full 40-bit system timestamp in device time units.

Return type:

int

UiFlow2 Code Block:


MicroPython Code Block:

stamp_uwb_0.system_timestamp()
StampUWB.reset()

Reset, probe, and reinitialise the UWB device. Configure the PHY and RF settings again after reset.

Raises:

OSError – If the device cannot be probed or initialized after reset.

UiFlow2 Code Block:


MicroPython Code Block:

stamp_uwb_0.reset()
stamp_uwb_0.configure(
    preamble_length=128,
    pac=8,
    tx_code=9,
    rx_code=9,
    sfd_type=uwb.SFD_DW_8,
    data_rate=uwb.BR_6M8,
    phr_mode=uwb.PHR_STD,
    phr_rate=uwb.PHR_RATE_STD,
    sfd_timeout=129,
)
stamp_uwb_0.configure_tx_rf(
    pg_delay=0x34, tx_power=0xFEFEFEFE, pg_count=0
)
StampUWB.wakeup()

Pulse the WAKEUP pin to wake the UWB device.

UiFlow2 Code Block:


MicroPython Code Block:

stamp_uwb_0.wakeup()
StampUWB.deinit()

Stop TX/RX and release the SPI and GPIO resources. This method is idempotent. After deinitialization, other methods raise OSError(ENODEV).

UiFlow2 Code Block:


MicroPython Code Block:

stamp_uwb_0.deinit()
