CC1101 Cap

Cap CC1101 is an expansion cap that combines a CC1101 Sub-GHz radio and an ST25R3916 NFC reader.

The MicroPython API is split by function:

  • CC1101Cap for Sub-GHz transmit and receive.

  • NFCCap for NFC card detection and read/write operations.

Support the following products:

CC1101Cap

Frequency Range

CC1101Cap supports the following measured frequency ranges:

Range

Band

315000~348000 kHz

315MHz band

415000~464000 kHz

433MHz band

830000~928000 kHz

868MHz band

The RF switch is updated automatically when freq_khz changes.

UiFlow2 Example

CC1101 RF TX

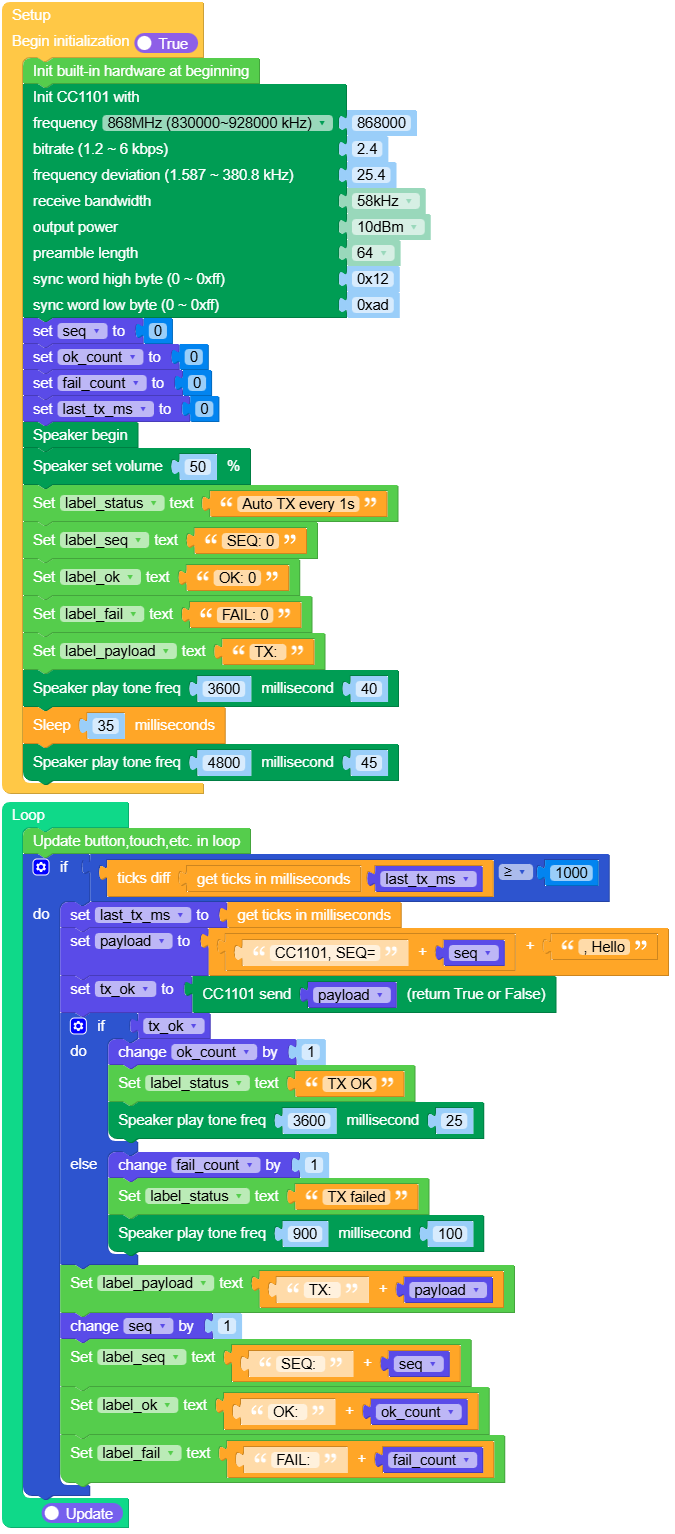

Open the cc1101_cap_rf_tx_example.m5f2 project in UiFlow2.

This example sends a payload once per second at 868MHz and displays SEQ, OK and FAIL counters.

UiFlow2 Code Block:


Example output:

None

CC1101 RF RX

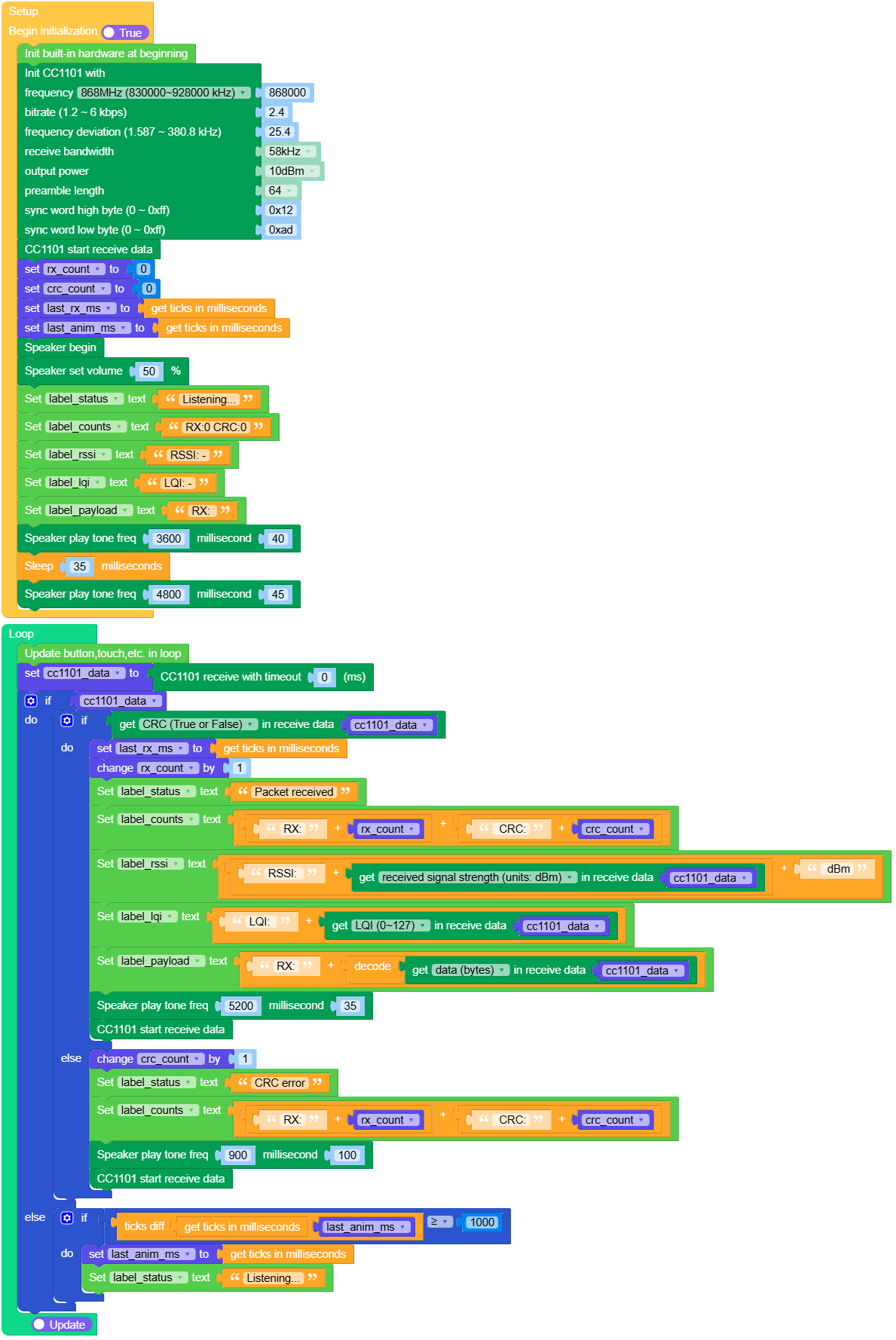

Open the cc1101_cap_rf_rx_example.m5f2 project in UiFlow2.

This example receives packets at 868MHz and displays payload, RSSI, LQI and CRC status.

UiFlow2 Code Block:


Example output:

None

NFC Card Detect

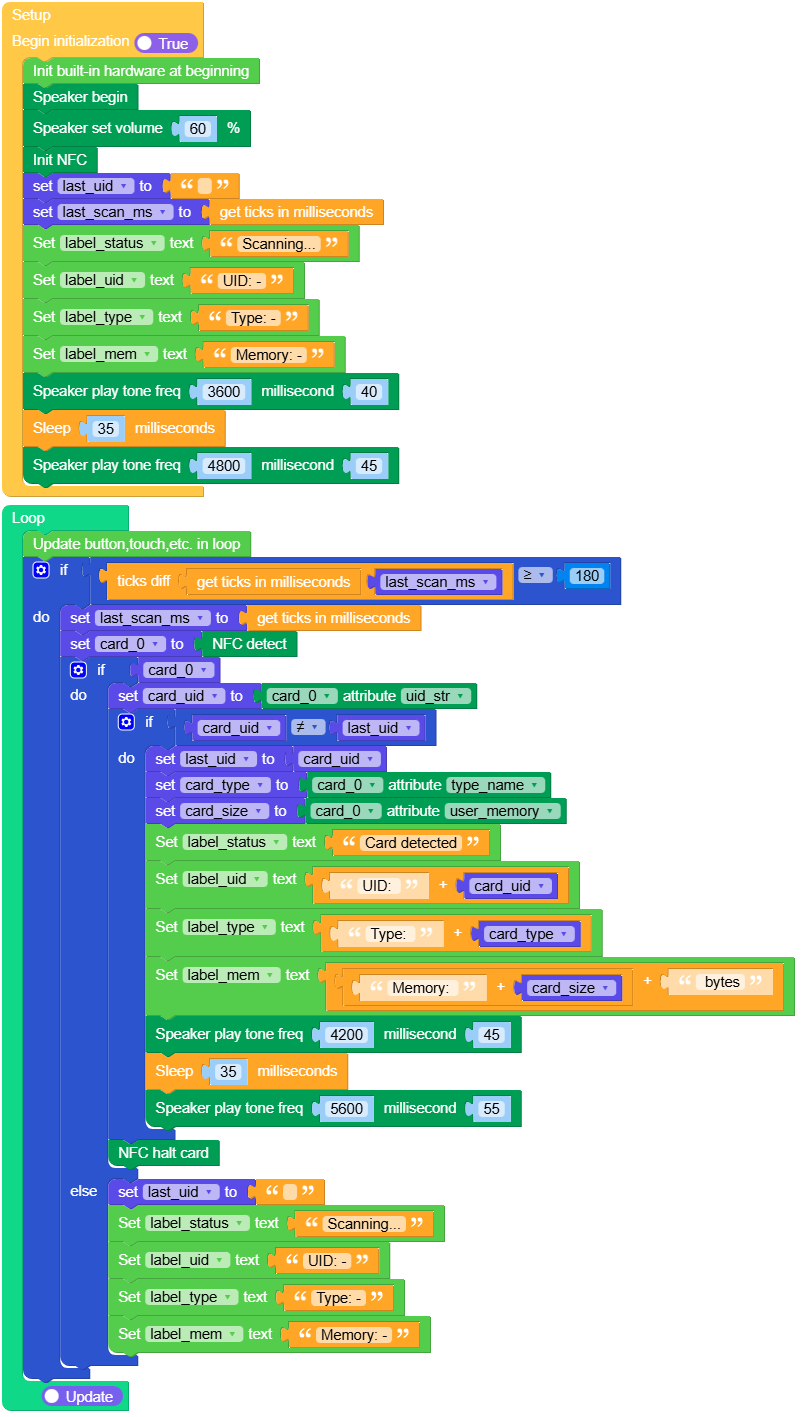

Open the cc1101_cap_nfc_read_id_example.m5f2 project in UiFlow2.

This example scans ISO14443A cards and displays UID, card type and user memory size.

UiFlow2 Code Block:


Example output:

None

MicroPython Example

CC1101 RF TX

This example sends a payload once per second at 868MHz and displays transmit counters.

MicroPython Code Block:

  1# SPDX-FileCopyrightText: 2026 M5Stack Technology CO LTD
  2#
  3# SPDX-License-Identifier: MIT
  4
  5import os, sys, io
  6import M5
  7from M5 import *
  8from cap import CC1101Cap
  9import time
 10
 11
 12label_title = None
 13label_status = None
 14label_seq = None
 15label_ok = None
 16label_fail = None
 17label_payload = None
 18cap_cc1101 = None
 19
 20
 21seq = None
 22last_tx_ms = None
 23ok_count = None
 24payload = None
 25fail_count = None
 26tx_ok = None
 27
 28
 29def setup():
 30    global \
 31        label_title, \
 32        label_status, \
 33        label_seq, \
 34        label_ok, \
 35        label_fail, \
 36        label_payload, \
 37        cap_cc1101, \
 38        seq, \
 39        last_tx_ms, \
 40        ok_count, \
 41        payload, \
 42        fail_count, \
 43        tx_ok
 44
 45    M5.begin()
 46    Widgets.fillScreen(0x101418)
 47    label_title = Widgets.Label(
 48        "CC1101 TX", 76, 3, 1.0, 0x22D3A6, 0x101418, Widgets.FONTS.Montserrat18
 49    )
 50    label_status = Widgets.Label(
 51        "Auto TX every 1s", 5, 28, 1.0, 0x22D3A6, 0x101418, Widgets.FONTS.Montserrat16
 52    )
 53    label_seq = Widgets.Label("SEQ: 0", 5, 50, 1.0, 0xEAF2F8, 0x101418, Widgets.FONTS.Montserrat16)
 54    label_ok = Widgets.Label("OK: 0", 5, 72, 1.0, 0x22D3A6, 0x101418, Widgets.FONTS.Montserrat16)
 55    label_fail = Widgets.Label(
 56        "FAIL: 0", 120, 72, 1.0, 0xFF5C5C, 0x101418, Widgets.FONTS.Montserrat16
 57    )
 58    label_payload = Widgets.Label(
 59        "TX:", 5, 100, 1.0, 0xEAF2F8, 0x101418, Widgets.FONTS.Montserrat18
 60    )
 61
 62    cap_cc1101 = CC1101Cap(868000, 2.4, 25.4, 58, 10, 64, 0x12, 0xAD)
 63    seq = 0
 64    ok_count = 0
 65    fail_count = 0
 66    last_tx_ms = 0
 67    Speaker.begin()
 68    Speaker.setVolumePercentage(0.5)
 69    label_status.setText(str("Auto TX every 1s"))
 70    label_seq.setText(str("SEQ: 0"))
 71    label_ok.setText(str("OK: 0"))
 72    label_fail.setText(str("FAIL: 0"))
 73    label_payload.setText(str("TX: "))
 74    Speaker.tone(3600, 40)
 75    time.sleep_ms(35)
 76    Speaker.tone(4800, 45)
 77
 78
 79def loop():
 80    global \
 81        label_title, \
 82        label_status, \
 83        label_seq, \
 84        label_ok, \
 85        label_fail, \
 86        label_payload, \
 87        cap_cc1101, \
 88        seq, \
 89        last_tx_ms, \
 90        ok_count, \
 91        payload, \
 92        fail_count, \
 93        tx_ok
 94    M5.update()
 95    if (time.ticks_diff((time.ticks_ms()), last_tx_ms)) >= 1000:
 96        last_tx_ms = time.ticks_ms()
 97        payload = str((str("CC1101, SEQ=") + str(seq))) + str(", Hello")
 98        tx_ok = cap_cc1101.send(payload)
 99        if tx_ok:
100            ok_count = (ok_count if isinstance(ok_count, (int, float)) else 0) + 1
101            label_status.setText(str("TX OK"))
102            Speaker.tone(3600, 25)
103        else:
104            fail_count = (fail_count if isinstance(fail_count, (int, float)) else 0) + 1
105            label_status.setText(str("TX failed"))
106            Speaker.tone(900, 100)
107        label_payload.setText(str((str("TX: ") + str(payload))))
108        seq = (seq if isinstance(seq, (int, float)) else 0) + 1
109        label_seq.setText(str((str("SEQ: ") + str(seq))))
110        label_ok.setText(str((str("OK: ") + str(ok_count))))
111        label_fail.setText(str((str("FAIL: ") + str(fail_count))))
112
113
114if __name__ == "__main__":
115    try:
116        setup()
117        while True:
118            loop()
119    except (Exception, KeyboardInterrupt) as e:
120        try:
121            from utility import print_error_msg
122
123            print_error_msg(e)
124        except ImportError:
125            print("please update to latest firmware")

Example output:

None

CC1101 RF RX

This example receives packets at 868MHz and displays payload, RSSI, LQI and CRC status.

MicroPython Code Block:

  1# SPDX-FileCopyrightText: 2026 M5Stack Technology CO LTD
  2#
  3# SPDX-License-Identifier: MIT
  4
  5import os, sys, io
  6import M5
  7from M5 import *
  8from cap import CC1101Cap
  9import time
 10
 11
 12label_title = None
 13label_status = None
 14label_counts = None
 15label_rssi = None
 16label_lqi = None
 17label_payload = None
 18cap_cc1101 = None
 19
 20
 21cc1101_data = None
 22rx_count = None
 23crc_count = None
 24last_rx_ms = None
 25last_anim_ms = None
 26
 27
 28def setup():
 29    global \
 30        label_title, \
 31        label_status, \
 32        label_counts, \
 33        label_rssi, \
 34        label_lqi, \
 35        label_payload, \
 36        cap_cc1101, \
 37        cc1101_data, \
 38        rx_count, \
 39        crc_count, \
 40        last_rx_ms, \
 41        last_anim_ms
 42
 43    M5.begin()
 44    Widgets.fillScreen(0x101418)
 45    label_title = Widgets.Label(
 46        "CC1101 RX", 75, 3, 1.0, 0x22D3A6, 0x101418, Widgets.FONTS.Montserrat18
 47    )
 48    label_status = Widgets.Label(
 49        "Listening...", 5, 28, 1.0, 0x22D3A6, 0x101418, Widgets.FONTS.Montserrat16
 50    )
 51    label_counts = Widgets.Label(
 52        "RX:0 CRC:0", 5, 50, 1.0, 0xEAF2F8, 0x101418, Widgets.FONTS.Montserrat16
 53    )
 54    label_rssi = Widgets.Label(
 55        "RSSI: -", 5, 72, 1.0, 0xEAF2F8, 0x101418, Widgets.FONTS.Montserrat16
 56    )
 57    label_lqi = Widgets.Label(
 58        "LQI: -", 136, 72, 1.0, 0xEAF2F8, 0x101418, Widgets.FONTS.Montserrat16
 59    )
 60    label_payload = Widgets.Label(
 61        "RX:", 5, 100, 1.0, 0x22D3A6, 0x101418, Widgets.FONTS.Montserrat18
 62    )
 63
 64    cap_cc1101 = CC1101Cap(868000, 2.4, 25.4, 58, 10, 64, 0x12, 0xAD)
 65    cap_cc1101.start_recv()
 66    rx_count = 0
 67    crc_count = 0
 68    last_rx_ms = time.ticks_ms()
 69    last_anim_ms = time.ticks_ms()
 70    Speaker.begin()
 71    Speaker.setVolumePercentage(0.5)
 72    label_status.setText(str("Listening..."))
 73    label_counts.setText(str("RX:0 CRC:0"))
 74    label_rssi.setText(str("RSSI: -"))
 75    label_lqi.setText(str("LQI: -"))
 76    label_payload.setText(str("RX: "))
 77    Speaker.tone(3600, 40)
 78    time.sleep_ms(35)
 79    Speaker.tone(4800, 45)
 80
 81
 82def loop():
 83    global \
 84        label_title, \
 85        label_status, \
 86        label_counts, \
 87        label_rssi, \
 88        label_lqi, \
 89        label_payload, \
 90        cap_cc1101, \
 91        cc1101_data, \
 92        rx_count, \
 93        crc_count, \
 94        last_rx_ms, \
 95        last_anim_ms
 96    M5.update()
 97    cc1101_data = cap_cc1101.recv(timeout_ms=0)
 98    if cc1101_data:
 99        if cc1101_data.crc_ok:
100            last_rx_ms = time.ticks_ms()
101            rx_count = (rx_count if isinstance(rx_count, (int, float)) else 0) + 1
102            label_status.setText(str("Packet received"))
103            label_counts.setText(
104                str((str((str("RX:") + str(rx_count))) + str((str(" CRC:") + str(crc_count)))))
105            )
106            label_rssi.setText(str((str((str("RSSI: ") + str((cc1101_data.rssi)))) + str(" dBm"))))
107            label_lqi.setText(str((str("LQI: ") + str((cc1101_data.lqi)))))
108            label_payload.setText(str((str("RX:") + str(((cc1101_data.data).decode())))))
109            Speaker.tone(5200, 35)
110            cap_cc1101.start_recv()
111        else:
112            crc_count = (crc_count if isinstance(crc_count, (int, float)) else 0) + 1
113            label_status.setText(str("CRC error"))
114            label_counts.setText(
115                str((str((str("RX:") + str(rx_count))) + str((str(" CRC:") + str(crc_count)))))
116            )
117            Speaker.tone(900, 100)
118            cap_cc1101.start_recv()
119    else:
120        if (time.ticks_diff((time.ticks_ms()), last_anim_ms)) >= 1000:
121            last_anim_ms = time.ticks_ms()
122            label_status.setText(str("Listening..."))
123
124
125if __name__ == "__main__":
126    try:
127        setup()
128        while True:
129            loop()
130    except (Exception, KeyboardInterrupt) as e:
131        try:
132            from utility import print_error_msg
133
134            print_error_msg(e)
135        except ImportError:
136            print("please update to latest firmware")

Example output:

None

NFC Card Detect

This example scans ISO14443A cards and displays UID, card type and user memory size.

MicroPython Code Block:

  1# SPDX-FileCopyrightText: 2026 M5Stack Technology CO LTD
  2#
  3# SPDX-License-Identifier: MIT
  4
  5import os, sys, io
  6import M5
  7from M5 import *
  8from cap import NFCCap
  9import time
 10
 11
 12label_title = None
 13label_status = None
 14label_uid = None
 15label_type = None
 16label_mem = None
 17cap_nfc = None
 18last_scan_ms = None
 19card_0 = None
 20last_uid = None
 21card_uid = None
 22card_type = None
 23card_size = None
 24
 25
 26def setup():
 27    global \
 28        label_title, \
 29        label_status, \
 30        label_uid, \
 31        label_type, \
 32        label_mem, \
 33        cap_nfc, \
 34        last_scan_ms, \
 35        card_0, \
 36        last_uid, \
 37        card_uid, \
 38        card_type, \
 39        card_size
 40
 41    M5.begin()
 42    Widgets.fillScreen(0x101418)
 43    label_title = Widgets.Label(
 44        "NFC card detect", 44, 3, 1.0, 0x22D3A6, 0x101418, Widgets.FONTS.Montserrat18
 45    )
 46    label_status = Widgets.Label(
 47        "Scanning...", 5, 28, 1.0, 0x22D3A6, 0x101418, Widgets.FONTS.Montserrat14
 48    )
 49    label_uid = Widgets.Label("UID: -", 5, 50, 1.0, 0xEAF2F8, 0x101418, Widgets.FONTS.Montserrat14)
 50    label_type = Widgets.Label(
 51        "Type: -", 5, 72, 1.0, 0xEAF2F8, 0x101418, Widgets.FONTS.Montserrat14
 52    )
 53    label_mem = Widgets.Label(
 54        "Memory: -", 5, 94, 1.0, 0xEAF2F8, 0x101418, Widgets.FONTS.Montserrat14
 55    )
 56
 57    Speaker.begin()
 58    Speaker.setVolumePercentage(0.6)
 59    cap_nfc = NFCCap()
 60    last_uid = ""
 61    last_scan_ms = time.ticks_ms()
 62    label_status.setText(str("Scanning..."))
 63    label_uid.setText(str("UID: -"))
 64    label_type.setText(str("Type: -"))
 65    label_mem.setText(str("Memory: -"))
 66    Speaker.tone(3600, 40)
 67    time.sleep_ms(35)
 68    Speaker.tone(4800, 45)
 69
 70
 71def loop():
 72    global \
 73        label_title, \
 74        label_status, \
 75        label_uid, \
 76        label_type, \
 77        label_mem, \
 78        cap_nfc, \
 79        last_scan_ms, \
 80        card_0, \
 81        last_uid, \
 82        card_uid, \
 83        card_type, \
 84        card_size
 85    M5.update()
 86    if (time.ticks_diff((time.ticks_ms()), last_scan_ms)) >= 180:
 87        last_scan_ms = time.ticks_ms()
 88        card_0 = cap_nfc.detect()
 89        if card_0:
 90            card_uid = card_0.uid_str
 91            if card_uid != last_uid:
 92                last_uid = card_uid
 93                card_type = card_0.type_name
 94                card_size = card_0.user_memory
 95                label_status.setText(str("Card detected"))
 96                label_uid.setText(str((str("UID: ") + str(card_uid))))
 97                label_type.setText(str((str("Type: ") + str(card_type))))
 98                label_mem.setText(str((str((str("Memory: ") + str(card_size))) + str(" bytes"))))
 99                Speaker.tone(4200, 45)
100                time.sleep_ms(35)
101                Speaker.tone(5600, 55)
102            cap_nfc.halt()
103        else:
104            last_uid = ""
105            label_status.setText(str("Scanning..."))
106            label_uid.setText(str("UID: -"))
107            label_type.setText(str("Type: -"))
108            label_mem.setText(str("Memory: -"))
109
110
111if __name__ == "__main__":
112    try:
113        setup()
114        while True:
115            loop()
116    except (Exception, KeyboardInterrupt) as e:
117        try:
118            from utility import print_error_msg
119
120            print_error_msg(e)
121        except ImportError:
122            print("please update to latest firmware")

Example output:

None

API

class CC1101Cap

class cap.cc1101.CC1101Cap(freq_khz=868000, bitrate_kbps=2.4, freq_dev_khz=25.4, rx_bw_khz=58.0, output_power=10, preamble_length=16, sync_word_h=0x12, sync_word_l=0xAD)

Create a CC1101Cap object for Sub-GHz radio.

Parameters:

  • freq_khz (int) – CC1101 RF frequency in kHz. Valid ranges: 315000~348000 kHz, 415000~464000 kHz, 830000~928000 kHz.

  • bitrate_kbps (float) – Data rate in kbps, range from 0.6 to 6.0 kbps.

  • freq_dev_khz (float) – Frequency deviation in kHz, range from 1.6 to 380 kHz.

  • rx_bw_khz (float) – Receiver bandwidth in kHz, range from 58 to 812 kHz.

  • output_power (int) – Output power in dBm, range from -30 to 10 dBm.

  • preamble_length (int) – Preamble length in bits, options: 16, 24, 32, 48, 64, 96, 128, 192.

  • sync_word_h (int) – High byte of sync word (0x00 to 0xFF).

  • sync_word_l (int) – Low byte of sync word (0x00 to 0xFF).

UiFlow2 Code Block:


MicroPython Code Block:

from cap import CC1101Cap

cap_cc1101 = CC1101Cap(868000, 2.4, 25.4, 58.0, 10, 64, 0x12, 0xAD)
set_freq(freq_khz)

Set frequency in kHz and update the Cap RF switch automatically.

Parameters:

freq_khz (int) – Frequency in kHz. Valid ranges: 315000~348000 kHz, 415000~464000 kHz, 830000~928000 kHz.

UiFlow2 Code Block:


MicroPython Code Block:

cap_cc1101.set_freq(868000)
set_bitrate(bitrate_kbps)

Set data rate in kbps.

Parameters:

bitrate_kbps (float) – Data rate in kbps, range from 0.6 to 6.0.

UiFlow2 Code Block:


MicroPython Code Block:

cap_cc1101.set_bitrate(2.4)
set_freq_dev(freq_dev_khz)

Set frequency deviation in kHz.

Parameters:

freq_dev_khz (float) – Frequency deviation in kHz, range from 1.6 to 380.

UiFlow2 Code Block:


MicroPython Code Block:

cap_cc1101.set_freq_dev(25.4)
set_rx_bw(rx_bw_khz)

Set receiver bandwidth in kHz.

Parameters:

rx_bw_khz (float) – Receiver bandwidth in kHz, range from 58 to 812.

UiFlow2 Code Block:


MicroPython Code Block:

cap_cc1101.set_rx_bw(58.0)
set_output_power(output_power)

Set output power in dBm.

Parameters:

output_power (int) – Output power in dBm, range from -30 to 10.

UiFlow2 Code Block:


MicroPython Code Block:

cap_cc1101.set_output_power(10)
set_preamble_length(preamble_length)

Set preamble length in bits.

Parameters:

preamble_length (int) – Preamble length in bits. Must be one of 16, 24, 32, 48, 64, 96, 128, 192.

UiFlow2 Code Block:


MicroPython Code Block:

cap_cc1101.set_preamble_length(64)
set_sync_word(sync_word_h, sync_word_l)

Set the two-byte sync word.

Parameters:

  • sync_word_h (int) – High byte of sync word (0x00 to 0xFF).

  • sync_word_l (int) – Low byte of sync word (0x00 to 0xFF).

UiFlow2 Code Block:


MicroPython Code Block:

cap_cc1101.set_sync_word(0x12, 0xAD)
send(packet)

Send data.

Parameters:

packet (str | list | tuple | int | bytearray | bytes) – Data to send.

Returns:

True if the packet was sent successfully, otherwise False.

Return type:

bool

UiFlow2 Code Block:


MicroPython Code Block:

cap_cc1101.send("Hello World")
recv(timeout_ms=None)

Receive data.

Parameters:

timeout_ms (int) – Timeout in milliseconds. None uses non-blocking polling.

Returns:

Received packet instance or None.

Return type:

CC1101Packet | None

UiFlow2 Code Block:


MicroPython Code Block:

packet = cap_cc1101.recv()
if packet and packet.crc_ok:
    print(packet.decode(), packet.rssi, packet.lqi)
start_recv()

Start receive mode.

UiFlow2 Code Block:


MicroPython Code Block:

cap_cc1101.start_recv()
set_rx_irq_callback(callback)

Set the receive interrupt callback.

Parameters:

callback – Callback invoked with a CC1101Packet when a packet is received.

UiFlow2 Code Block:


MicroPython Code Block:

def on_rx(packet):
    print(packet.decode())

cap_cc1101.set_rx_irq_callback(on_rx)
set_tx_irq_callback(callback)

Set the transmit callback.

Parameters:

callback – Callback invoked after transmit. On CC1101Cap, GDO2 is used for RF switch control, so this API is kept mainly for compatibility.

UiFlow2 Code Block:


MicroPython Code Block:

def on_tx(_):
    print("TX done")

cap_cc1101.set_tx_irq_callback(on_tx)
standby()

Put CC1101 into standby mode.

UiFlow2 Code Block:


MicroPython Code Block:

cap_cc1101.standby()
rx_irq_triggered()

Check whether RX IRQ has triggered.

Returns:

True if RX IRQ has triggered, otherwise False.

Return type:

bool

UiFlow2 Code Block:


MicroPython Code Block:

cap_cc1101.rx_irq_triggered()
tx_irq_triggered()

Check whether TX IRQ has triggered.

Returns:

True if TX IRQ has triggered, otherwise False.

Return type:

bool

UiFlow2 Code Block:


MicroPython Code Block:

cap_cc1101.tx_irq_triggered()
get_rssi()

Get the latest RSSI value.

Returns:

RSSI in dBm.

Return type:

float

get_lqi()

Get the latest Link Quality Indicator value.

Returns:

LQI value.

Return type:

int

get_status()

Get CC1101 radio status.

Returns:

Status dictionary containing marc_state, rssi and lqi.

Return type:

dict

class CC1101Packet

class driver.cc1101.CC1101Packet

Packet object returned by CC1101Cap.recv() and RX callbacks.

data

Raw packet data.

rssi

Received signal strength in dBm.

lqi

Link Quality Indicator.

crc_ok

CRC result. True means the packet passed CRC check.

decode()

Decode packet data as UTF-8 string.

Returns:

Decoded string.

Return type:

str

class NFCCap

class cap.cc1101.NFCCap

Create an NFCCap object for the ST25R3916 NFC reader on Cap CC1101 hardware.

NFCCap uses ST25R3916 in SPI mode internally. The application does not need to pass an I2C bus or SPI object.

UiFlow2 Code Block:


MicroPython Code Block:

from cap import NFCCap

nfc = NFCCap()
detect()

Poll for an ISO14443A card.

Returns:

A Card object if a card is detected, otherwise None.

UiFlow2 Code Block:


MicroPython Code Block:

card = nfc.detect()
if card:
    print(card.uid_str, card.type_name, card.user_memory)
read(card, index, key=FACTORY_KEY)

Read one address unit from the detected card.

  • MIFARE Classic: index is the global block number and the return value is 16 bytes or None.

  • Type 2 / Ultralight / NTAG: index is the page number and the return value is 4 bytes or None.

Parameters:

  • card – Card object returned by detect().

  • index (int) – Block index for Classic, or page index for Type 2.

  • key (bytes) – MIFARE Classic key. Default is FF FF FF FF FF FF.

Returns:

bytes or None.

UiFlow2 Code Block:


MicroPython Code Block:

data = nfc.read(card, 4)
write(card, index, data, key=FACTORY_KEY)

Write one address unit to the detected card.

  • MIFARE Classic: data must be 16 bytes and index is the global block number.

  • Type 2 / Ultralight / NTAG: data must be 4 bytes and index is the page number.

Use writable test cards only. Do not write UID pages, lock bytes, sector trailers, access-control blocks, payment cards, access cards, or identity cards.

Parameters:

  • card – Card object returned by detect().

  • index (int) – Block index for Classic, or page index for Type 2.

  • data (bytes) – Data to write.

  • key (bytes) – MIFARE Classic key. Default is FF FF FF FF FF FF.

Returns:

True on success, otherwise False.

Return type:

bool

UiFlow2 Code Block:


MicroPython Code Block:

ok = nfc.write(card, 4, bytes(16))
halt()

Send HLTA to put the Type A card into HALT state.

UiFlow2 Code Block:


MicroPython Code Block:

nfc.halt()
rf_off()

Turn off the NFC RF field.

UiFlow2 Code Block:


MicroPython Code Block:

nfc.rf_off()
rf_on()

Turn on the NFC RF field.

UiFlow2 Code Block:


MicroPython Code Block:

nfc.rf_on()

Card Object

The Card object returned by NFCCap.detect() contains the detected card information.

UiFlow2 Code Block:


Attribute / Method

Description

uid

Raw UID bytes.

uid_len

UID length.

uid_str

Uppercase hexadecimal UID string.

atqa

ISO14443A ATQA value.

sak

ISO14443A SAK value.

type_id

Card type ID.

type_name

Card type name.

user_memory

Detected user memory size in bytes.

is_classic()

Return True for MIFARE Classic family cards.

is_type2_family()

Return True for Type 2 / Ultralight / NTAG family cards.

UiFlow2 Code Block:
